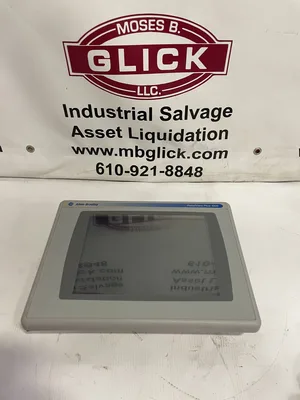

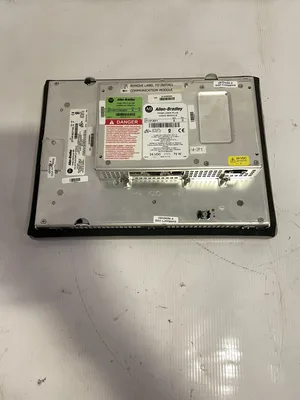

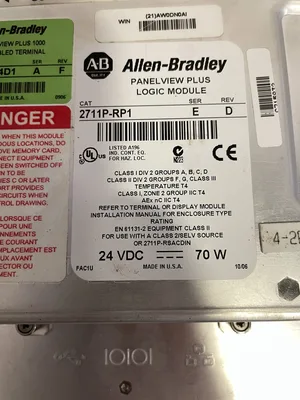

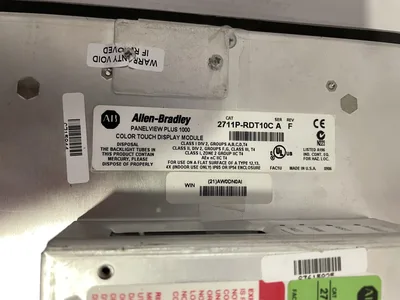

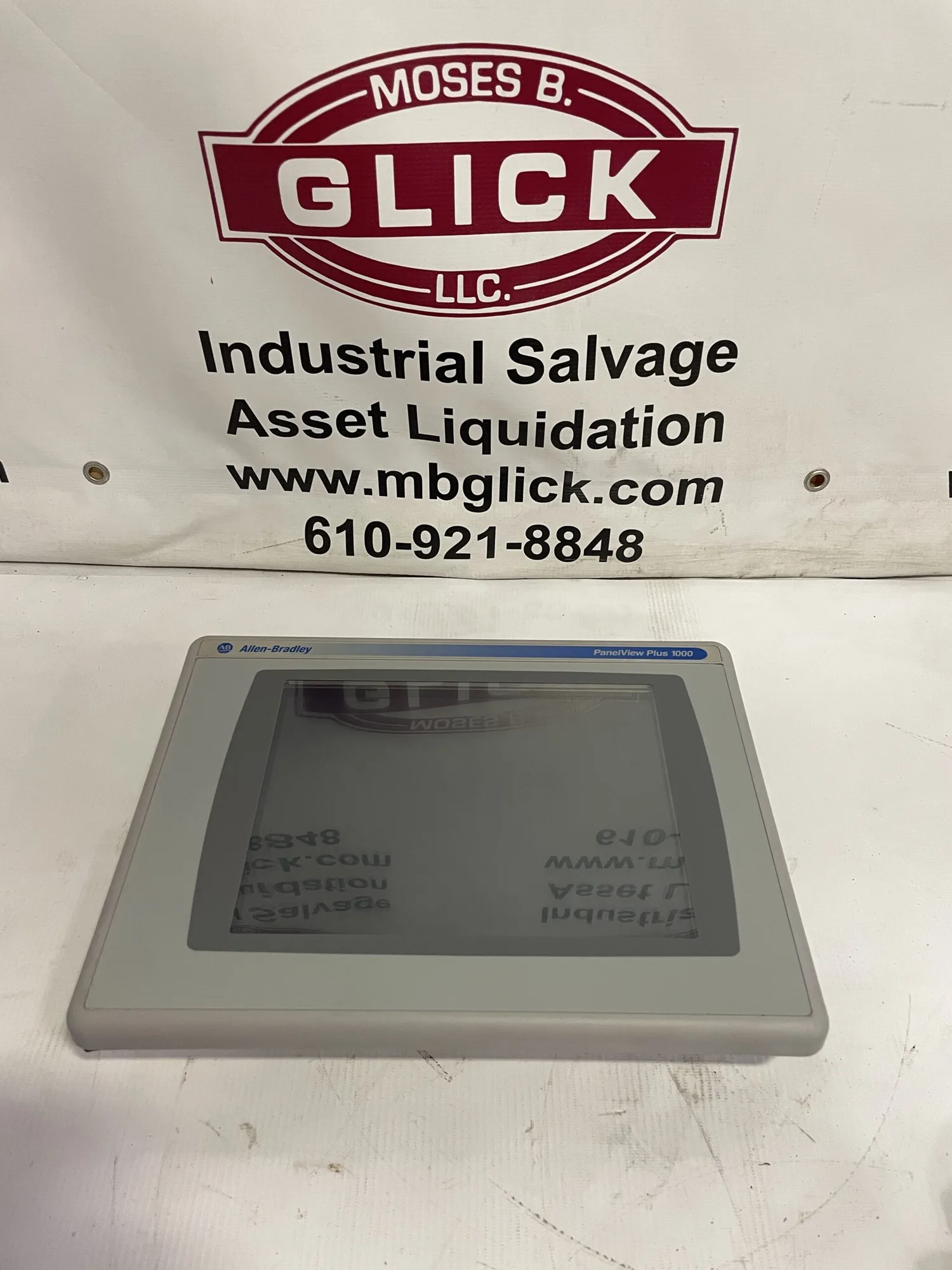

Allen-Bradley PanelView Plus 1000 2711P‑RDT10C Ser A – 10.4″ Color TFT Touch HMI 2711-RP1
Overview
Description
The Allen-Bradley 2711P-RDT10C is a 10.4-inch color touchscreen display module from the PanelView Plus 1000 series, designed for use with Rockwell Automation’s human-machine interface (HMI) systems.
Display Type: 10.4-inch TFT LCD, 18-bit color
Display Type: 10.4-inch TFT LCD, 18-bit color
Resolution: 640 x 480 pixels
Resolution: 640 x 480 pixels
Touch Interface: 8-wire analog resistive
Touch Interface: 8-wire analog resistive
Luminance: 300 cd/m²
Luminance: 300 cd/m²
Input Voltage: 85–264V AC
Input Voltage: 85–264V AC
Power Consumption: 39W typical, 70W maximum
Power Consumption: 39W typical, 70W maximum
Enclosure Rating: IP65 (NEMA Type 4X)
Enclosure Rating: IP65 (NEMA Type 4X)
Operating Temperature: 0°C to 60°C
Operating Temperature: 0°C to 60°C
Mounting: Fits 224 x 305 mm cutout
Mounting: Fits 224 x 305 mm cutout
Specifications
| Dimensions | 17 × 14 × 7 in | 17 × 14 × 7 in |
|---|---|---|
| Weight | 11 lbs | 11 lbs |
Weight: 11 lbs
Dimensions: 17 × 14 × 7 in
