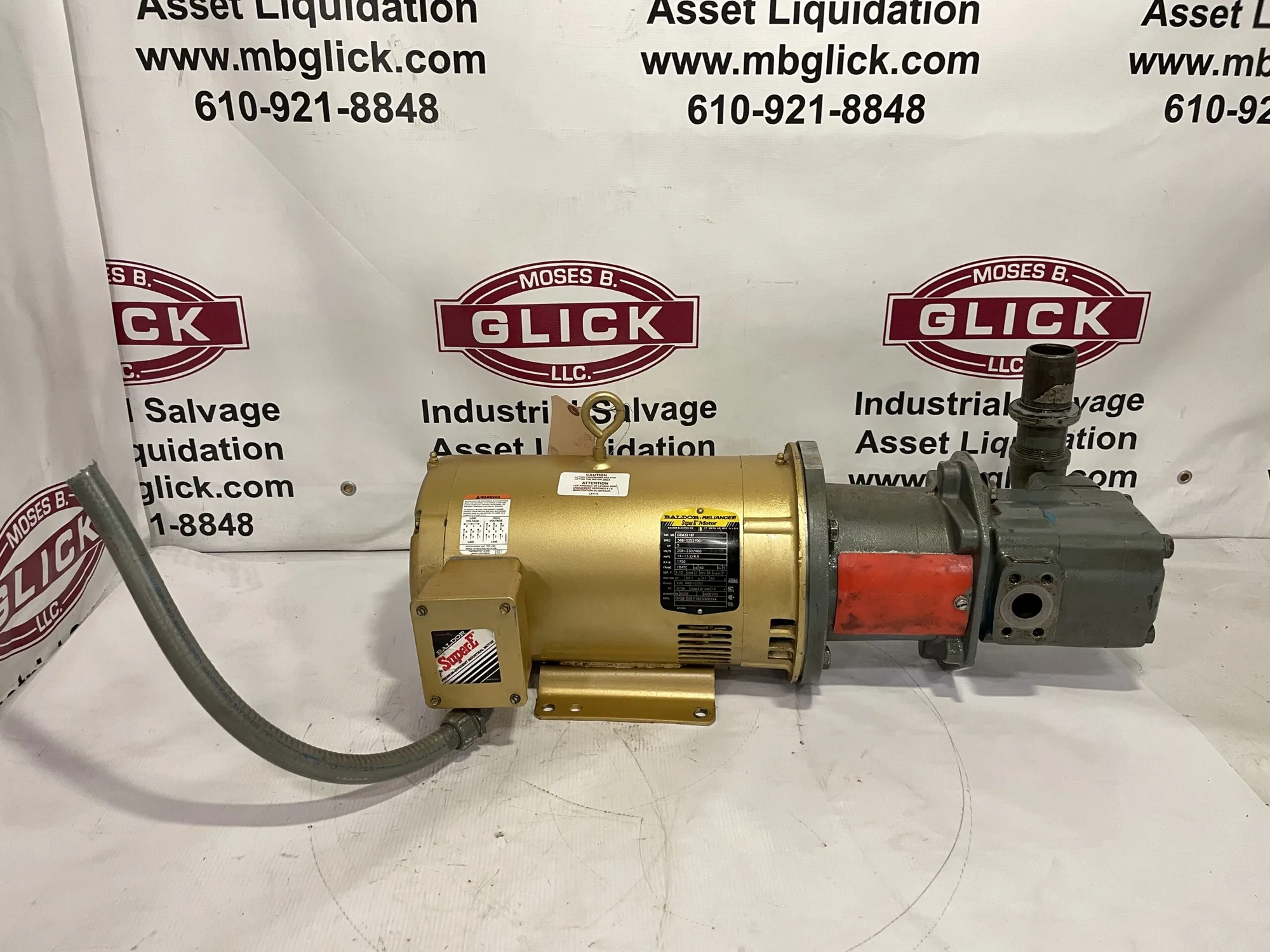

Vickers 25V21A 1A22R Hydraulic Vane Pump 5HP 1750RPM 3PH

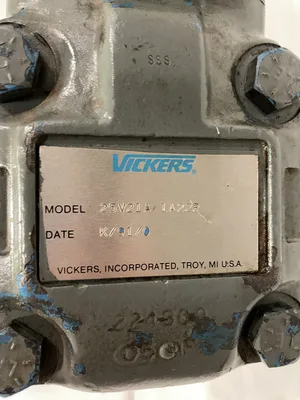

The Vickers 25V21A-1A22R is a fixed displacement hydraulic vane pump manufactured by Vickers, a brand under Danfoss. This pump is designed for industrial applications requiring reliable fluid power delivery.
#24 CODE 61 INLET AND #16 CODE 61 OUTLET
Displacement: 4.3 in³/rev (70.5 cm³/rev)
Displacement: 4.3 in³/rev (70.5 cm³/rev)
Flow Rate: Up to 21 GPM (79 L/min) at 1200 RPM with 100 PSI
Flow Rate: Up to 21 GPM (79 L/min) at 1200 RPM with 100 PSI
Maximum Pressure: 2500 PSI
Maximum Pressure: 2500 PSI
Maximum Speed: 1800 RPM
Maximum Speed: 1800 RPM
Mounting: SAE B 2-bolt flange
Mounting: SAE B 2-bolt flange
Shaft: 1-3/16″ square keyed
Shaft: 1-3/16″ square keyed
Rotation: Clockwise (viewed from shaft end)
Rotation: Clockwise (viewed from shaft end)
Port Orientation: Outlet opposite inlet
Port Orientation: Outlet opposite inlet
Seal Material: Standard (Buna-N or Viton, depending on variant)
Seal Material: Standard (Buna-N or Viton, depending on variant)
Temperature Range: Up to 210°F (99°C)
Temperature Range: Up to 210°F (99°C)

Weight: 174 lbs
Dimensions: 31 × 19 × 16 in
