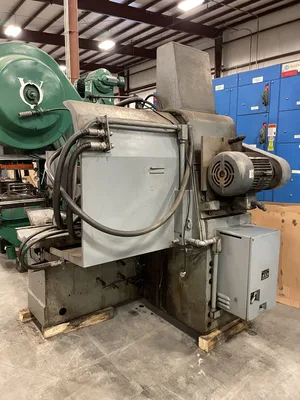

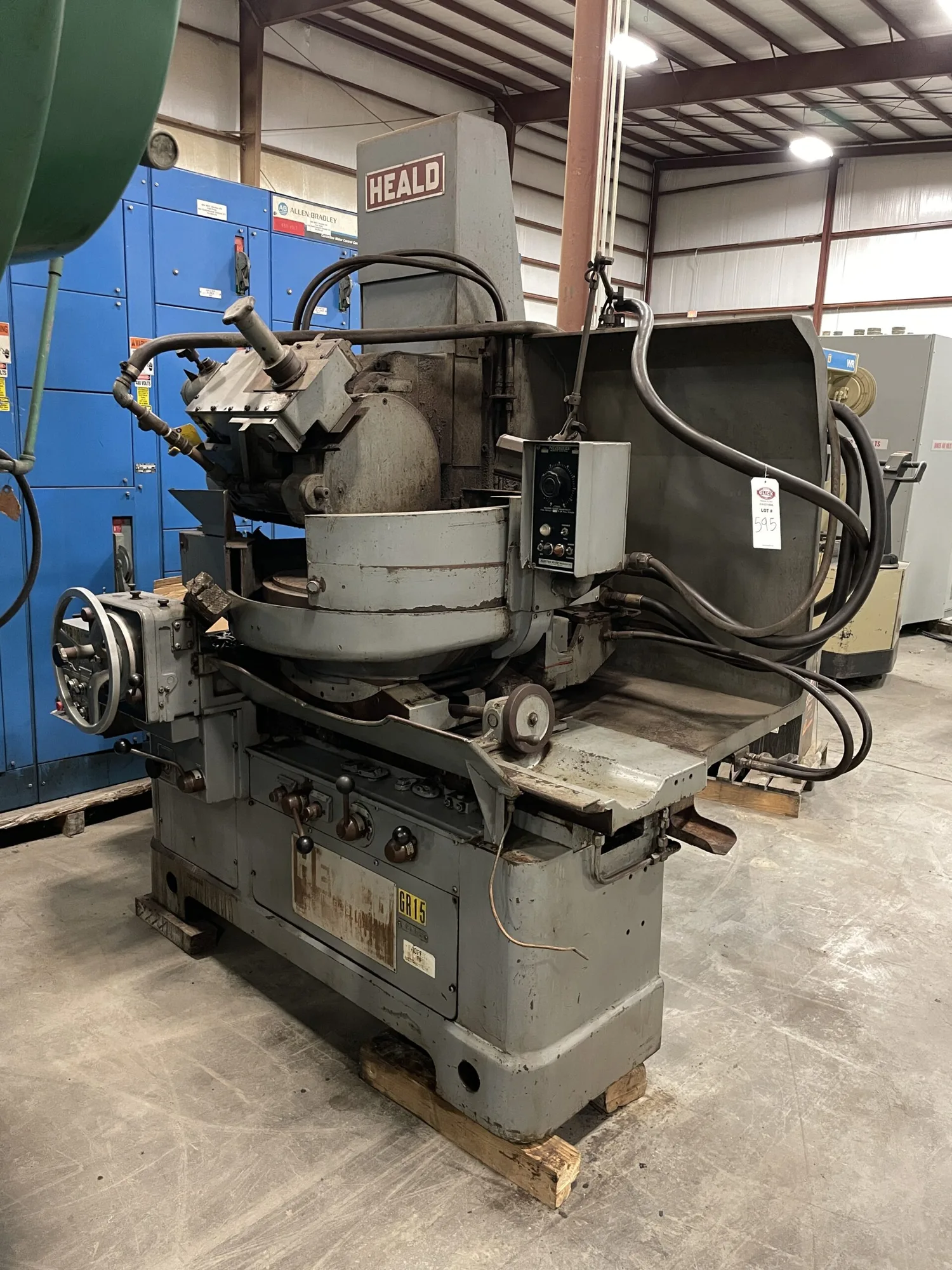

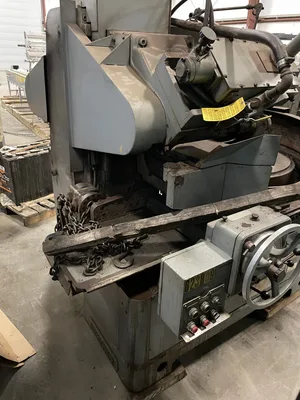

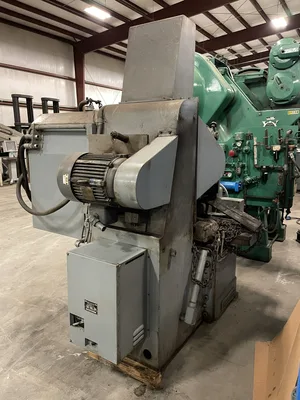

Heald Model 361 24” Rotary Surface Grinder 230/460 V 3PH
Overview
Description
PANEL AND HYDRAULIC UNIT ARE NOT INCLUDED.

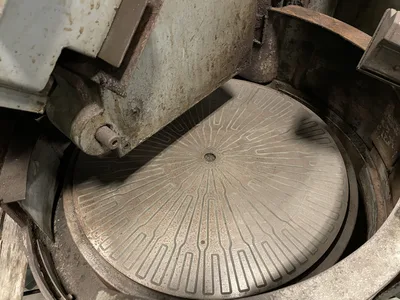

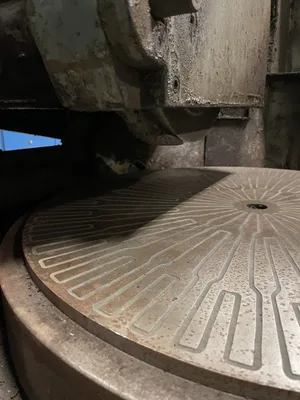

The Heald 361, also known as the Cincinnati‑Heald Model 361, is a large horizontal-spindle rotary surface grinder featuring a sizable circular magnetic chuck. Ideal for flat, convex, or concave finishes on blocks, dies, and other flat surfaces.
Large Work Capacity: Support for ~24‑inch diameter parts with a 28″ swing inside coolant guards.
Large Work Capacity: Support for ~24‑inch diameter parts with a 28″ swing inside coolant guards.
Table Tilt Capability: Unique for convex/concave grinding up to 17°/10°.
Table Tilt Capability: Unique for convex/concave grinding up to 17°/10°.
Precision Control: Auto-increment feed board with 0.0001″ resolution and variable chuck speed.
Precision Control: Auto-increment feed board with 0.0001″ resolution and variable chuck speed.
Heavy-Duty Robustness: 15 HP spindle, hydraulic system, and full coolant setup for industrial-scale workload.
Heavy-Duty Robustness: 15 HP spindle, hydraulic system, and full coolant setup for industrial-scale workload.
Specifications
| Dimensions | 75 × 96 × 101 in | 75 × 96 × 101 in |
|---|---|---|
| Weight | 12500 lbs | 12500 lbs |
Weight: 12500 lbs
Dimensions: 75 × 96 × 101 in
