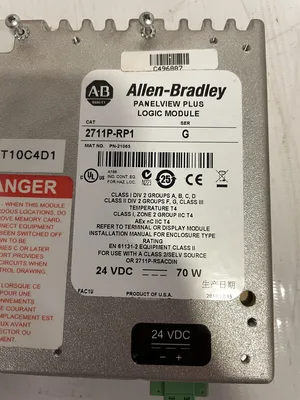

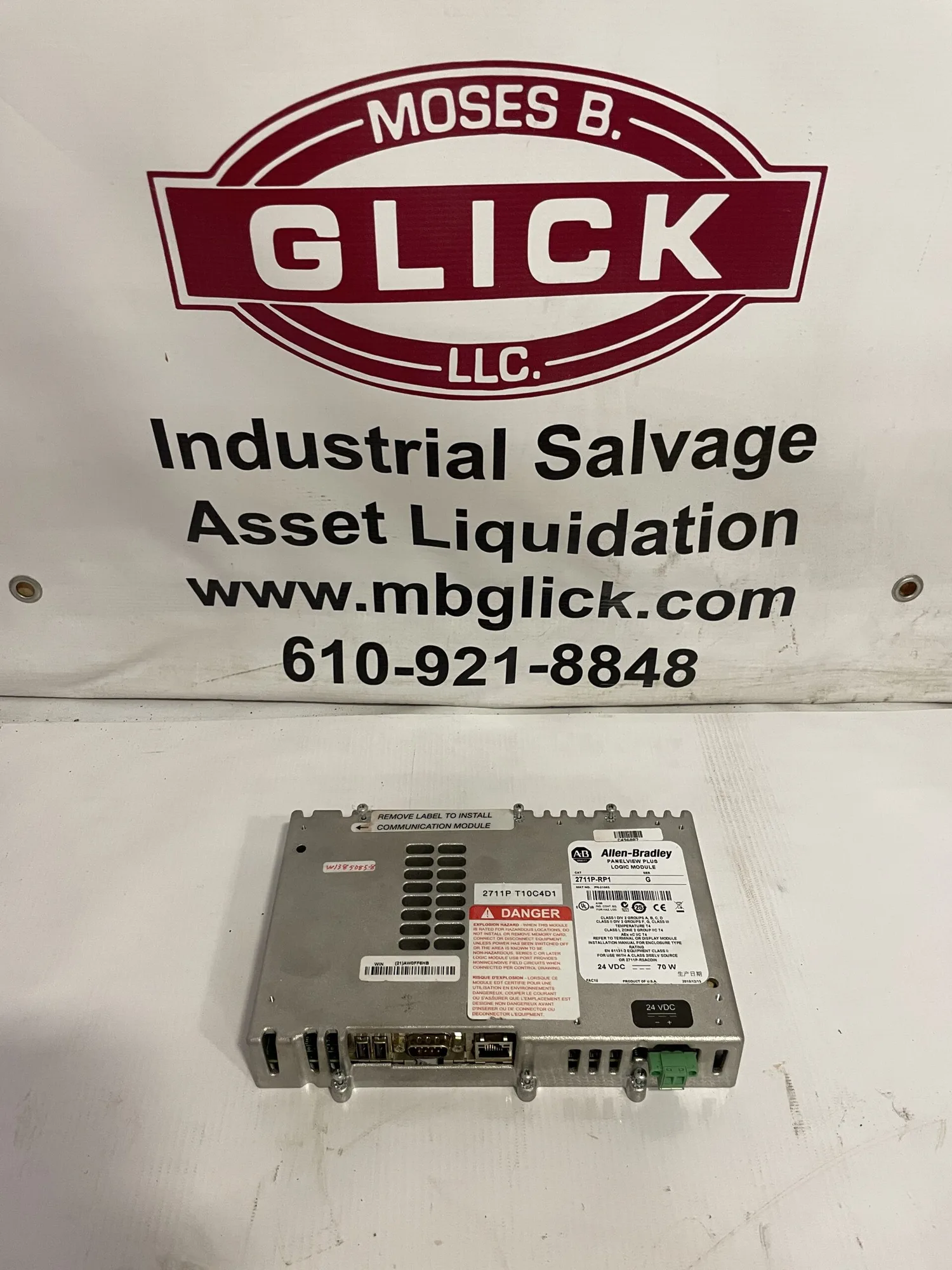

Allen-Bradley 2711P-RP1 Ser G Panelview Plus Logic Module 24VDC 70W
Overview
Description
The Allen-Bradley 2711P-RP1 is a logic module designed for use with the PanelView Plus series operator terminals, including models 700, 1000, 1250, and 1500. This module provides the necessary processing power and memory for the terminal’s runtime interface.
Memory:
RAM: 64 MB
Flash: 64 MB
Memory:
RAM: 64 MB
RAM: 64 MB
Flash: 64 MB
Flash: 64 MB
Power Input: 24V DC
Power Input: 24V DC

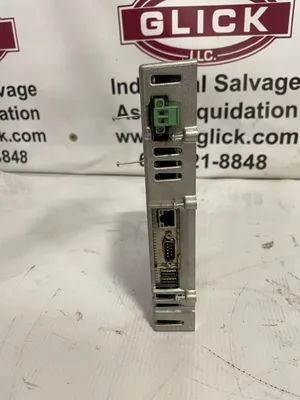

Communication Ports:
Ethernet: 10/100 BaseT
RS-232: 9-pin mini-DIN
USB: 2 ports
Communication Ports:
Ethernet: 10/100 BaseT
Ethernet: 10/100 BaseT
RS-232: 9-pin mini-DIN
RS-232: 9-pin mini-DIN
USB: 2 ports
USB: 2 ports
CompactFlash Slot: Supports external storage (ensure the terminal is powered off before inserting/removing cards)
CompactFlash Slot: Supports external storage (ensure the terminal is powered off before inserting/removing cards)
Operating Temperature: 0°C to 55°C
Operating Temperature: 0°C to 55°C
Installation: Mounts at the rear of the display module via a PCI slot
Installation: Mounts at the rear of the display module via a PCI slot
Specifications
| Dimensions | 13 × 10 × 6 in | 13 × 10 × 6 in |
|---|---|---|
| Weight | 7 lbs | 7 lbs |
Weight: 7 lbs
Dimensions: 13 × 10 × 6 in
