Advantage M1D‑15AXB‑MZC‑SP 14.5 Ton Air‑Cooled Industrial Chiller 460 V 3‑Ph

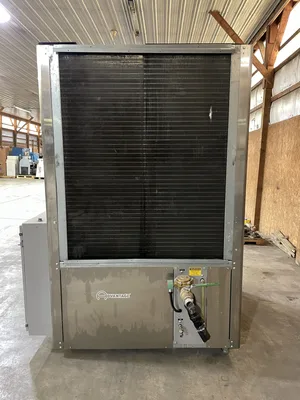

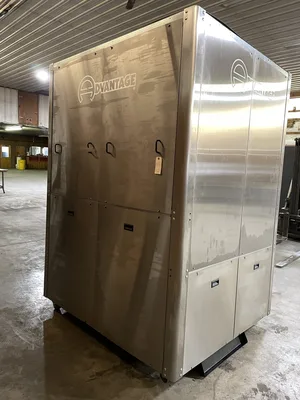

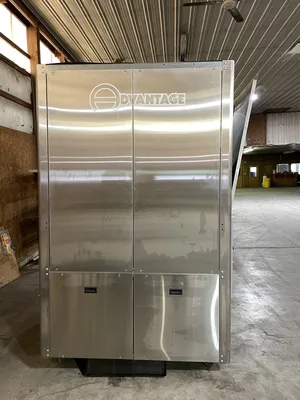

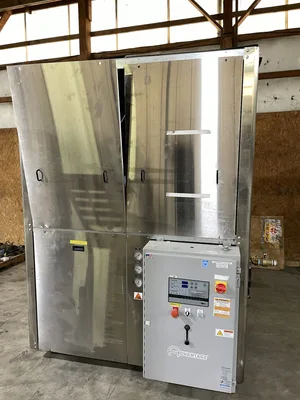

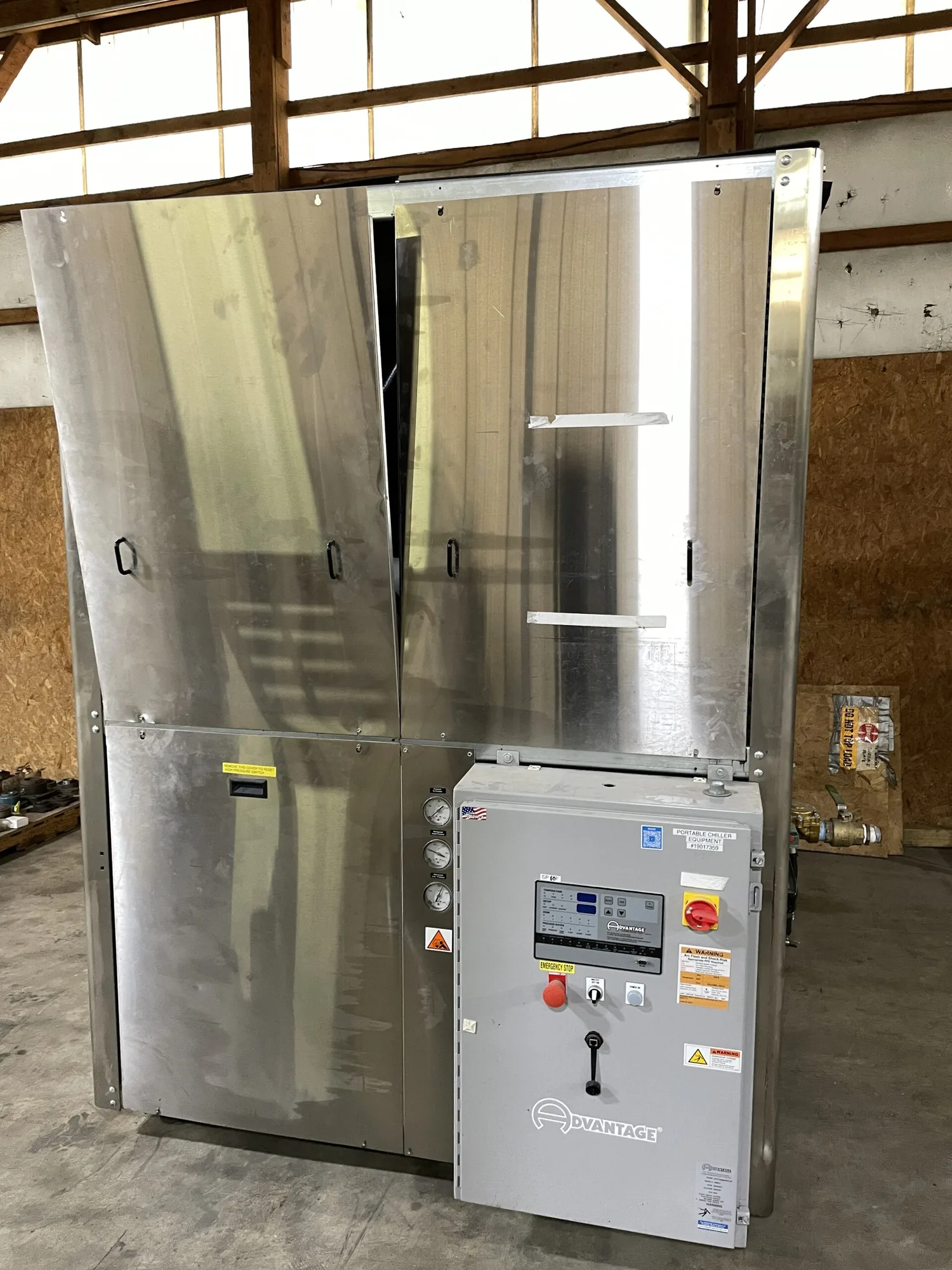

Advantage M1D‑15AXB‑MZC‑SP Air‑Cooled Industrial Chiller
This Advantage M1D‑15AXB‑MZC‑SP is a portable industrial chiller designed for process cooling. The M1D platform combines a scroll compressor and an air‑cooled condenser in a compact cabinet with an internal reservoir and circulating pump. According to Advantage’s specifications, the M1D‑15A family is rated for 14.5 tons (≈50.9 kW) of cooling and includes a 3 HP process pumpadvantagechillers.com. Comparable units also provide about 36 GPM of process water flowadvantagechillers.com and typically use a 15 HP digital scroll compressor, 65‑gallon reservoir and R‑410A refrigerant

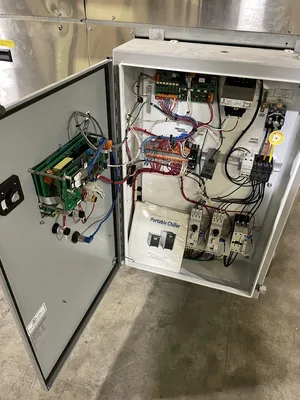

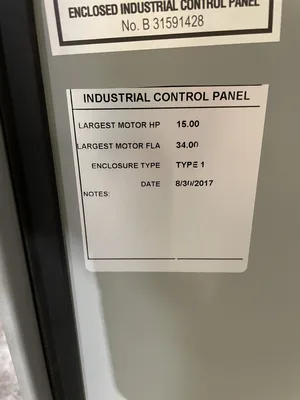

NEMA 1 electrical enclosure with digital MZC multi‑zone control instrument for precise temperature controladvantagechillers.com.

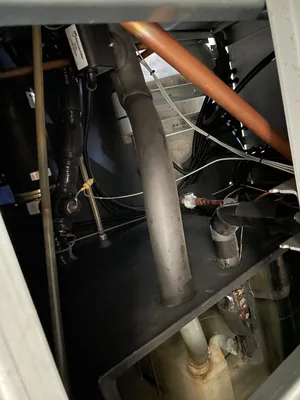

Scroll compressor, air‑cooled condenser and brazed‑plate evaporator to maximize efficiency and reliabilityadvantagechillers.com.
Scroll compressor, air‑cooled condenser and brazed‑plate evaporator to maximize efficiency and reliabilityadvantagechillers.com.
Filter–dryer and thermostatic expansion valve improve refrigerant management and temperature stabilityadvantagechillers.com.
Filter–dryer and thermostatic expansion valve improve refrigerant management and temperature stabilityadvantagechillers.com.
Automatic make‑up water and castors for portabilityadvantagechillers.com.
Automatic make‑up water and castors for portabilityadvantagechillers.com.
Powder‑coated steel frame for durabilityadvantagechillers.com.
Powder‑coated steel frame for durabilityadvantagechillers.com.

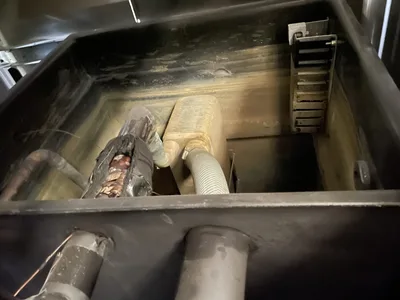

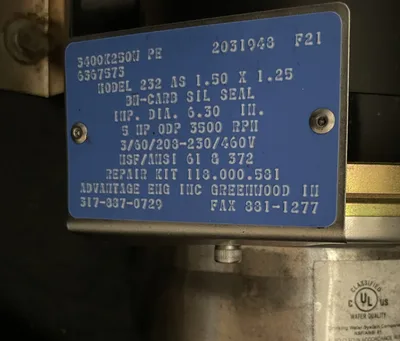

Internal reservoir and circulating pump provide closed‑loop cooling; 3 HP pump and ~36 GPM flow (based on M1D‑15AF data)advantagechillers.com.
Internal reservoir and circulating pump provide closed‑loop cooling; 3 HP pump and ~36 GPM flow (based on M1D‑15AF data)advantagechillers.com.

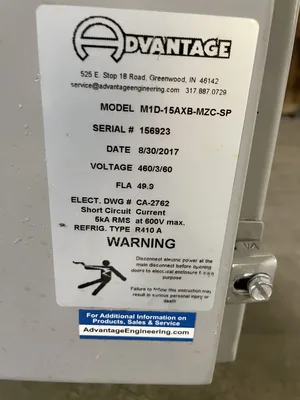

Power requirements: 460 V, 3‑phase (customer verified) with R‑410A refrigerantinjectiondepot.ca.
Power requirements: 460 V, 3‑phase (customer verified) with R‑410A refrigerantinjectiondepot.ca.
Condition: Used, in nice condition. this chiller was taken out of a test & research facility. Was in working condition when removed from service.
Common Applications: Ideal for plastics processing, injection molding, laser cooling, food and beverage processing, breweries/distilleries, laboratory equipment and other industrial processes that require reliable chilled water.

Weight: 2076 lbs
Dimensions: 80 × 89 × 98 in
