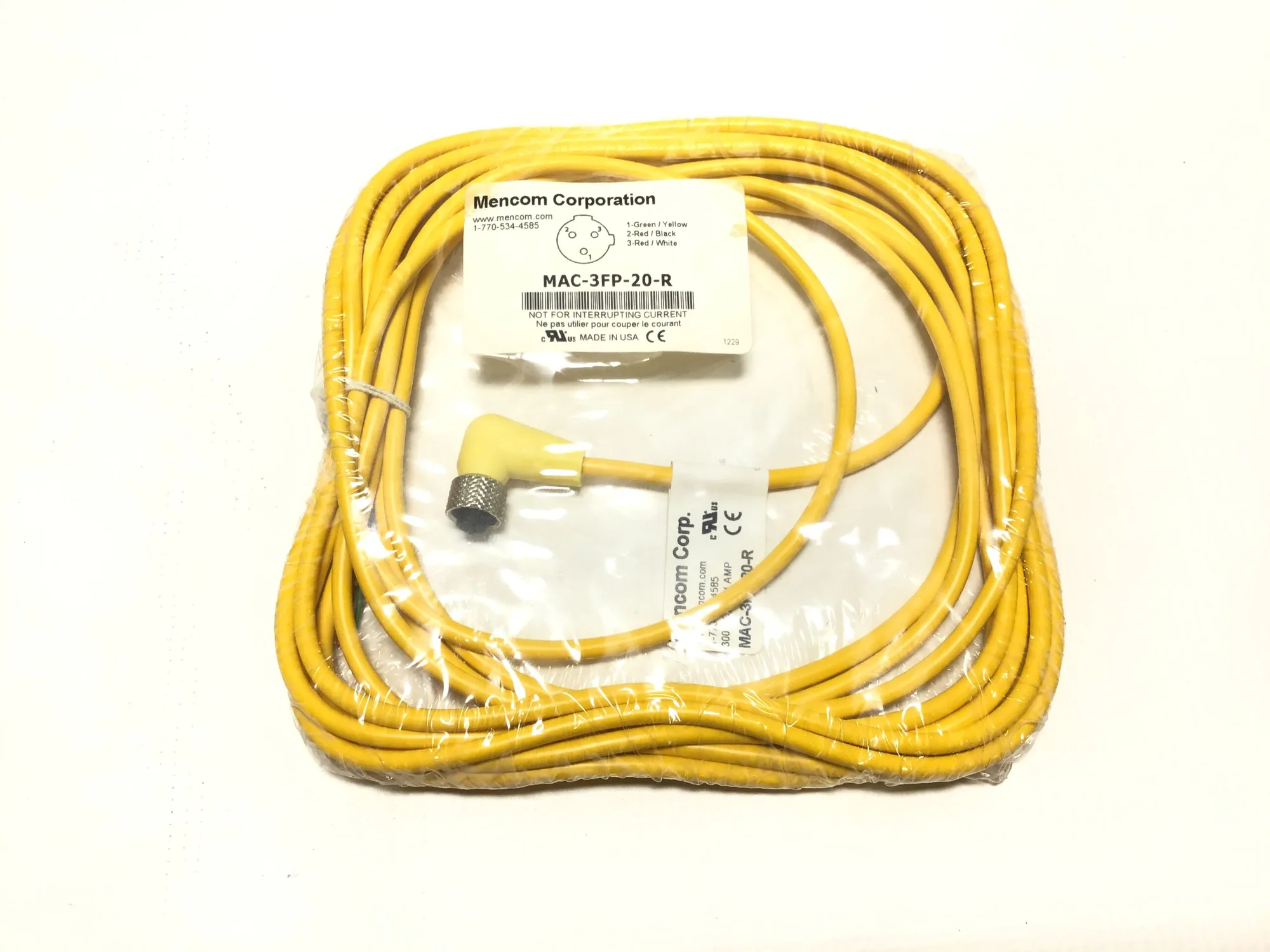

Mencom Corp. MAC-3FP-20-R Sensor Cordsets

1. General Overview
Manufacturer: Mencom Corporation
Manufacturer: Mencom Corporation
Model Number: MAC-3FP-20-R
Model Number: MAC-3FP-20-R
Product Type: Sensor Cordset / M12 Female Connector Cable Assembly
Product Type: Sensor Cordset / M12 Female Connector Cable Assembly
Series: MAC (Mencom Automation Cordset Series)
Series: MAC (Mencom Automation Cordset Series)
Function: Provides secure electrical connection between sensors, actuators, and control systems
Function: Provides secure electrical connection between sensors, actuators, and control systems
Typical Applications: Industrial automation, robotics, machinery, process control, and manufacturing equipment
Typical Applications: Industrial automation, robotics, machinery, process control, and manufacturing equipment
2. Key Features
High-quality molded connector for durability and strain relief
High-quality molded connector for durability and strain relief
Pre-wired assembly for quick installation and reliable performance
Pre-wired assembly for quick installation and reliable performance
Standard M12 (A-coded) 3-pole configuration for sensor applications
Standard M12 (A-coded) 3-pole configuration for sensor applications
Excellent resistance to vibration, oil, and mechanical stress
Excellent resistance to vibration, oil, and mechanical stress
Rugged industrial-grade PVC jacket for protection against wear and moisture
Rugged industrial-grade PVC jacket for protection against wear and moisture
Factory-tested for consistent electrical continuity and insulation integrity
Factory-tested for consistent electrical continuity and insulation integrity
3. Technical Specifications

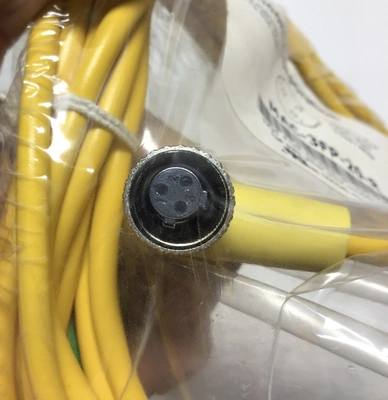

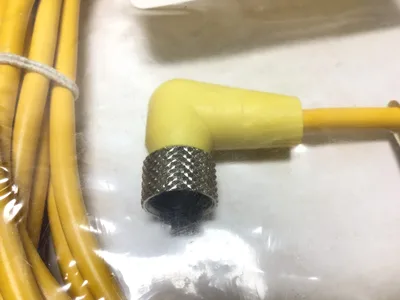

Connector Type: M12 female straight (3-pole)
Connector Type: M12 female straight (3-pole)
Cable Length: 20 feet (6 meters approximate)
Cable Length: 20 feet (6 meters approximate)
Wiring Configuration: 3-conductor cable
Wiring Configuration: 3-conductor cable
Cable Jacket Material: PVC (Polyvinyl Chloride)
Cable Jacket Material: PVC (Polyvinyl Chloride)
Jacket Color: Red (denoted by “R” suffix)
Jacket Color: Red (denoted by “R” suffix)
Conductor Size: 22 AWG (typical for MAC series)
Conductor Size: 22 AWG (typical for MAC series)
Voltage Rating: Up to 300V (depending on application)
Voltage Rating: Up to 300V (depending on application)
Current Rating: 4A continuous
Current Rating: 4A continuous
Temperature Range: -25°C to +90°C (-13°F to +194°F)
Temperature Range: -25°C to +90°C (-13°F to +194°F)
Ingress Protection: IP67 when properly mated
Ingress Protection: IP67 when properly mated
4. Construction Details
Connector Material: Nickel-plated brass or reinforced thermoplastic
Connector Material: Nickel-plated brass or reinforced thermoplastic
Contact Material: Gold-plated brass contacts for corrosion resistance
Contact Material: Gold-plated brass contacts for corrosion resistance
Coupling Mechanism: Threaded M12 connection for secure fit
Coupling Mechanism: Threaded M12 connection for secure fit
Cable Type: Shielded or unshielded (depending on configuration)
Cable Type: Shielded or unshielded (depending on configuration)
5. Mechanical & Electrical Performance
High vibration resistance for industrial environments
High vibration resistance for industrial environments
Low contact resistance ensuring reliable signal transmission
Low contact resistance ensuring reliable signal transmission
Resistant to oil, coolants, and most industrial chemicals
Resistant to oil, coolants, and most industrial chemicals
Overmolded design enhances strain relief and cable lifespan
Overmolded design enhances strain relief and cable lifespan
6. Compliance & Standards
UL Recognized and CSA Certified (depending on configuration)
UL Recognized and CSA Certified (depending on configuration)
Meets IEC standards for sensor connectivity
Meets IEC standards for sensor connectivity
RoHS compliant for environmental safety
RoHS compliant for environmental safety

Weight: 5 lbs
Dimensions: 2 × 6 × 2 in
