| X | 80" | 2,032 mm |
| Y | 27.56" | 700.02 mm |
| Z | 28.35" | 720.09 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | 40 | 40 |
| Table-W | 800" | 20,320 mm |
| Table-L | 27.56" | 700.02 mm |
| # Axis | 3 | 3 |

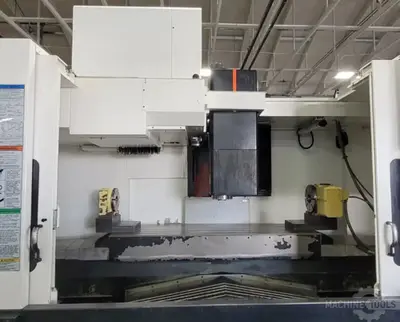

80” X 27” X 28” Vertical Machining Center with Matrix Nexus 2 Control, 12.1” Color LCD, EIA / ISO Code Input Function, LAN Port with Electrical Cabinet, Absolute Encoder System, (2) USB I/F Ports, Detachable Manual Pulse Generator, Table with T-Slots, 30 Tool Magazine, Total Cover without Top Cover, Hi - Pressure Coolant Thru - Spindle System, Roller Guide, operator Door with Interlock with Lock Switch, Cover Coolant, Dry Pit Foundation with Complete Toe - Clamp, Power Transformer, Relocation Device, Hand Held Coolant Nozzle and Nikken CNC 302MA NC Rotary Table.GENERAL SPECIFICATIONS X - Axis Travel: 80”Y - Axis Travel: 27.6”Z - Axis Travel: 28.3”Spindle Motor: 25 HPSpindle Speed: 12,000 RPMSpindle Taper: 40Tool Changer: 30 ATCTable Size: 80” X 27.5”Dimensions: 187” X 140” X 140”Weight: 26,500 LbsINCLUDES: Matrix Nexus 2 Control, 12.1” Color LCD, EIA / ISO Code Input Function, LAN Port with Electrical Cabinet, Absolute Encoder System, (2) USB I/F Ports, Detachable Manual Pulse Generator, Table with T-Slots, 30 Tool Magazine, Total Cover without Top Cover, Hi - Pressure Coolant Thru - Spindle System, Roller Guide, operator Door with Interlock with Lock Switch, Cover Coolant, Dry Pit Foundation with Complete Toe - Clamp, Power Transformer, Relocation Device, Hand Held Coolant Nozzle and Nikken CNC 302MA NC Rotary Table.
