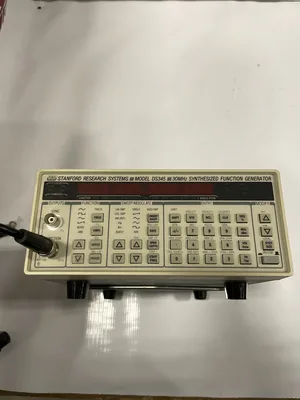

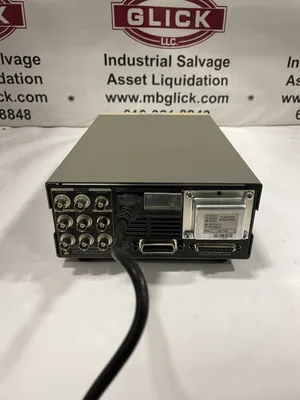

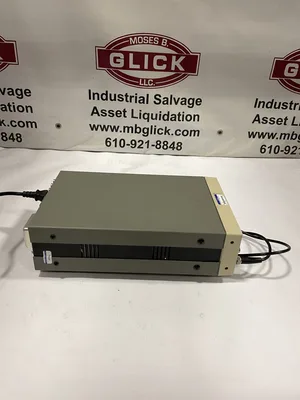

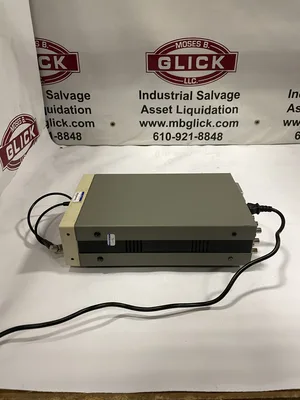

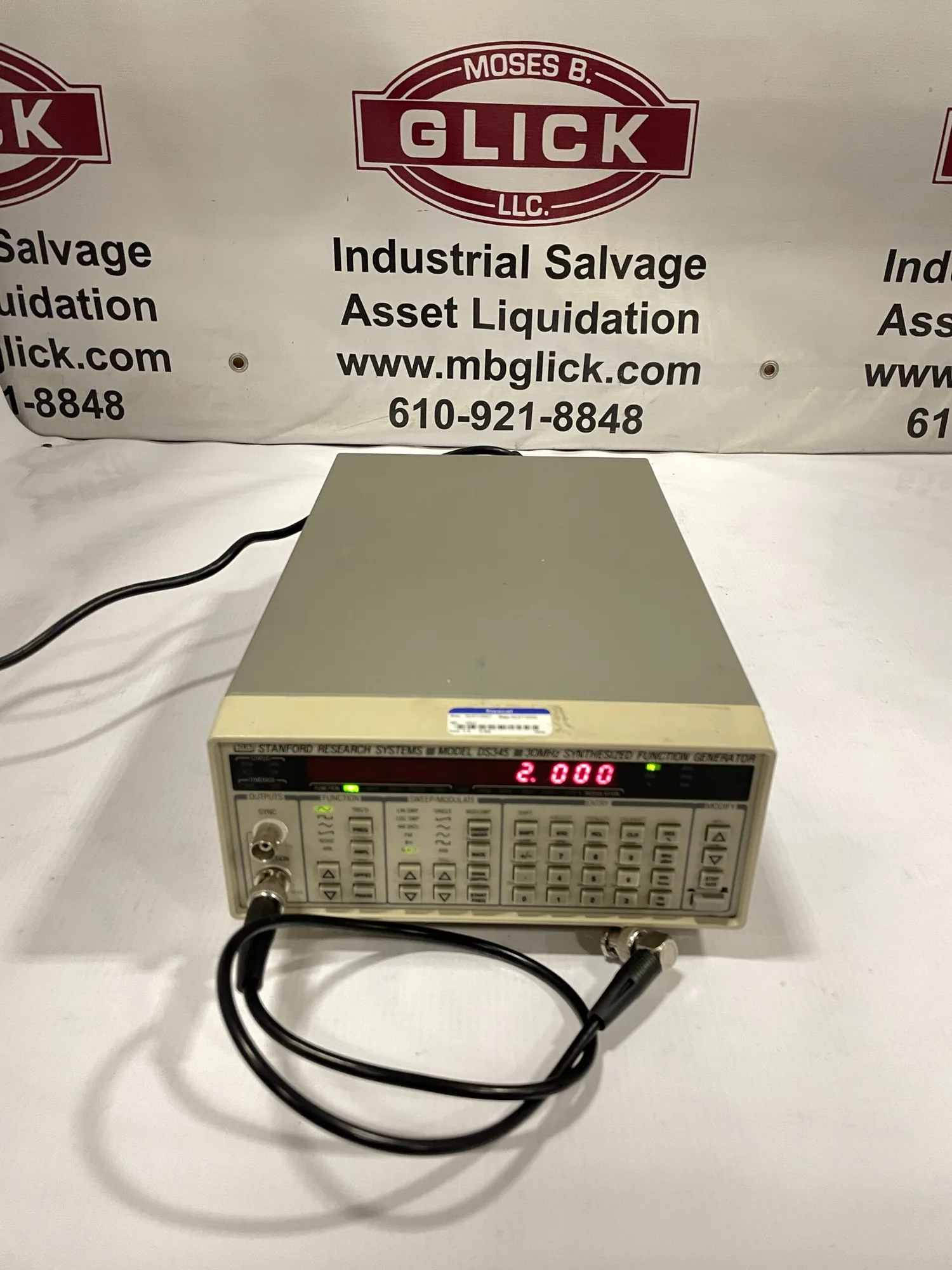

SRS Stanford Research Systems DS345 30MHz Synthesized Function Generator

The SRS DS345 from Stanford Research Systems is a high-performance 30 MHz synthesized function and arbitrary waveform generator designed for precision laboratory and engineering applications. Utilizing direct digital synthesis (DDS) technology, it delivers exceptional frequency accuracy and stability with ultra-fine 1 µHz resolution. The DS345 generates a wide range of standard waveforms—including sine, square, triangle, ramp, and noise—along with user-defined arbitrary waveforms at up to 40 MSa/s with 12-bit resolution. Advanced features such as AM, FM, PM, sweep, burst, and phase-continuous modulation make it ideal for research, development, calibration, and automated test environments. With adjustable output amplitude, low distortion performance, and optional GPIB or RS-232 interfaces for remote control, the DS345 provides versatile and reliable signal generation for demanding applications.

Weight: 15 lbs
Dimensions: 19 × 12 × 9 in
