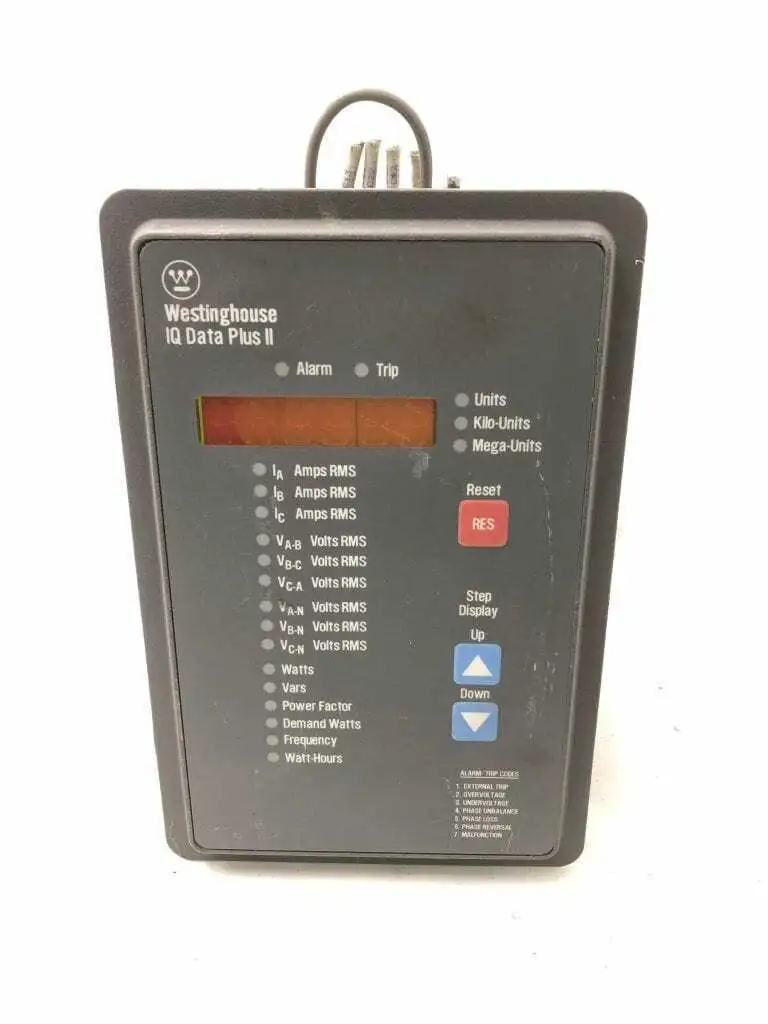

Westinghouse IQ DATA PLUS II 5281C55G01 Line Metering & Protection System 3PH

Overview:

The Westinghouse IQ DATA PLUS II is a microprocessor-based line metering and protection system designed for monitoring and safeguarding 3-phase electrical distribution systems. This unit combines advanced electrical metering functions with protective monitoring capabilities in a single, compact device, making it ideal for industrial and commercial power applications.
Metering Functions:
Measures 3-phase current and voltage
Measures 3-phase current and voltage
Real power (kW) and reactive power (kVAR)
Real power (kW) and reactive power (kVAR)
Power factor and system frequency
Power factor and system frequency
Energy usage (kWh)
Energy usage (kWh)
Demand monitoring
Demand monitoring
Protection Features:
Phase loss detection
Phase loss detection
Phase unbalance monitoring
Phase unbalance monitoring
Overvoltage and undervoltage protection
Overvoltage and undervoltage protection
Phase reversal detection
Phase reversal detection

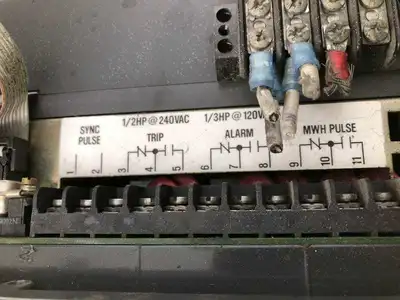

Programmable alarm and trip outputs
Programmable alarm and trip outputs
Key Features:
Microprocessor-controlled for accurate readings
Microprocessor-controlled for accurate readings
Non-volatile memory retains settings during power loss
Non-volatile memory retains settings during power loss
Panel-mount design for integration into switchgear or control cabinets
Panel-mount design for integration into switchgear or control cabinets
User-configurable setpoints for customized protection
User-configurable setpoints for customized protection
Applications:
Motor control centers
Motor control centers
Industrial power distribution panels
Industrial power distribution panels
Manufacturing facilities
Manufacturing facilities
Equipment protection for transformers, feeders, and large motors
Equipment protection for transformers, feeders, and large motors



CLICK HERE FOR THIS ITEMS MANUAL

Weight: 10 lbs
Dimensions: 15 × 11 × 11 in
