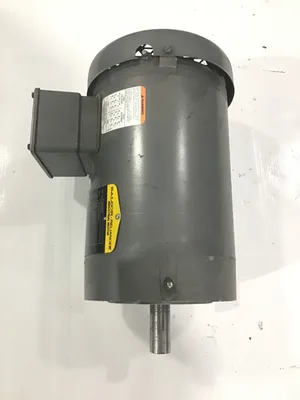

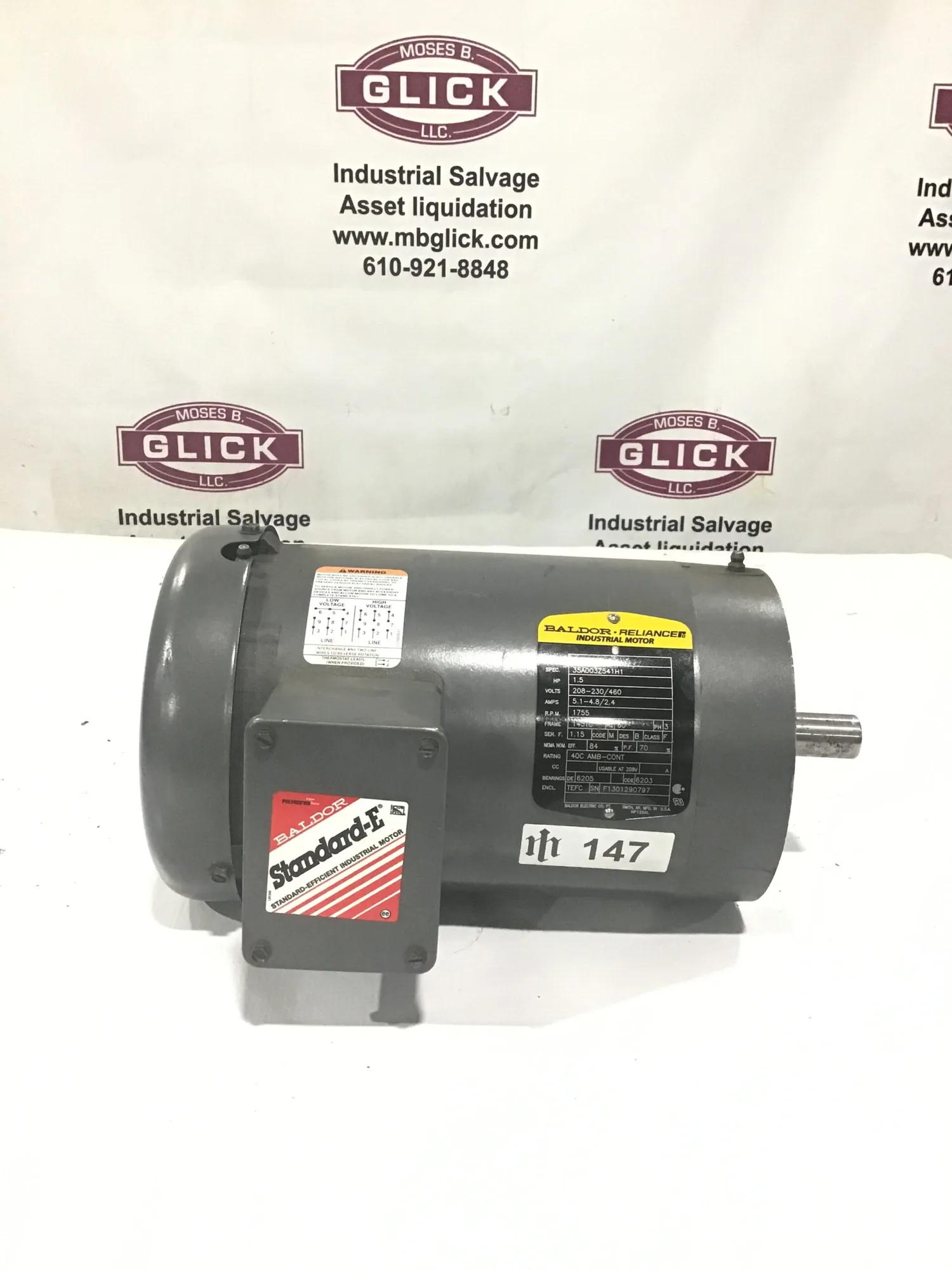

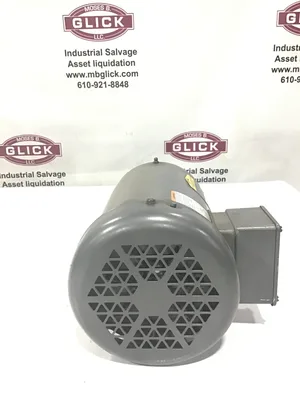

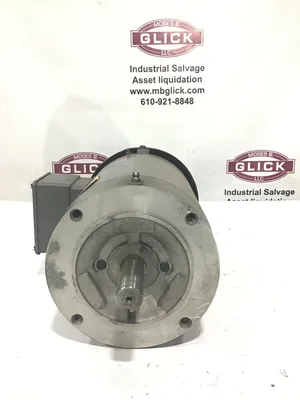

Baldor Reliance VM3554T 1.5HP 3-Phase Industrial Efficient Motor 1755RPM

Baldor Reliance Standard-E Industrial Electric Motor – VM3554T
Upgrade or replace your industrial motor with this high-quality Baldor Reliance Standard-E motor, known for durability, efficiency, and long service life in demanding industrial environments.
This motor is designed for continuous duty operation and is commonly used in pumps, conveyors, compressors, fans, and other industrial machinery.
Baldor motors are widely recognized for reliability and heavy-duty construction, making them a trusted choice in manufacturing and maintenance operations.
Key Specifications:

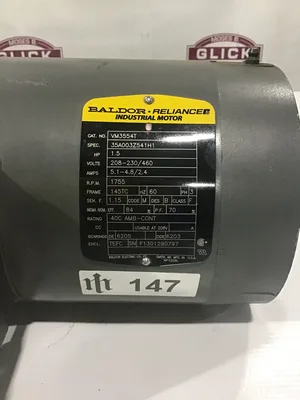

Manufacturer: Baldor Reliance
Manufacturer: Baldor Reliance
Series: Standard-E
Series: Standard-E
Catalog Number: VM3554T
Catalog Number: VM3554T
Horsepower: 1.5 HP
Horsepower: 1.5 HP
Phase: 3 Phase
Phase: 3 Phase
Voltage: 208-230 / 460 V
Voltage: 208-230 / 460 V
Amperage: 5.1 / 4.8 / 2.4 A
Amperage: 5.1 / 4.8 / 2.4 A
Speed: 1755 RPM
Speed: 1755 RPM
Frame: 145TC
Frame: 145TC
Frequency: 60 Hz
Frequency: 60 Hz
Service Factor: 1.15
Service Factor: 1.15
Design: B
Design: B
Insulation Class: F
Insulation Class: F
NEMA Nominal Efficiency: 84%
NEMA Nominal Efficiency: 84%
Power Factor: 70
Power Factor: 70
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Bearings:

Drive End: 6205

Opposite Drive End: 6203
Bearings:
Drive End: 6205
Drive End: 6205
Opposite Drive End: 6203
Opposite Drive End: 6203
Duty Rating: Continuous
Duty Rating: Continuous
Ambient Rating: 40°C
Ambient Rating: 40°C
Features:
✔ Heavy-duty industrial construction

✔ TEFC enclosure protects against dust and contaminants

✔ Designed for continuous operation

✔ Reliable Baldor engineering and performance

✔ Suitable for a wide variety of industrial and commercial applications
Typical Applications:
Industrial machinery
Industrial machinery
Pumps and compressors
Pumps and compressors
Conveyor systems
Conveyor systems
HVAC equipment
HVAC equipment
Manufacturing equipment
Manufacturing equipment
Agricultural equipment
Agricultural equipment

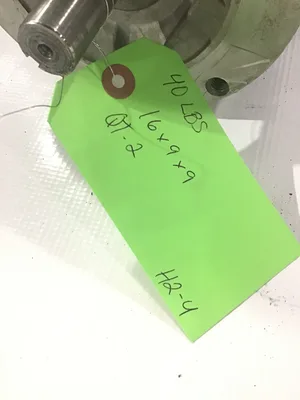

Weight: 40 lbs
Dimensions: 16 × 9 × 9 in
