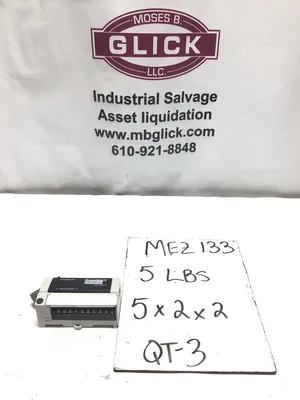

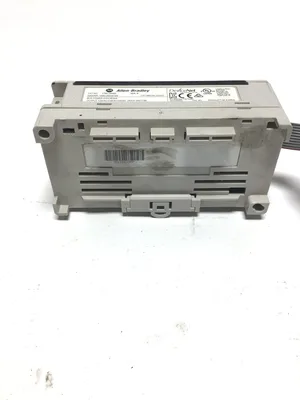

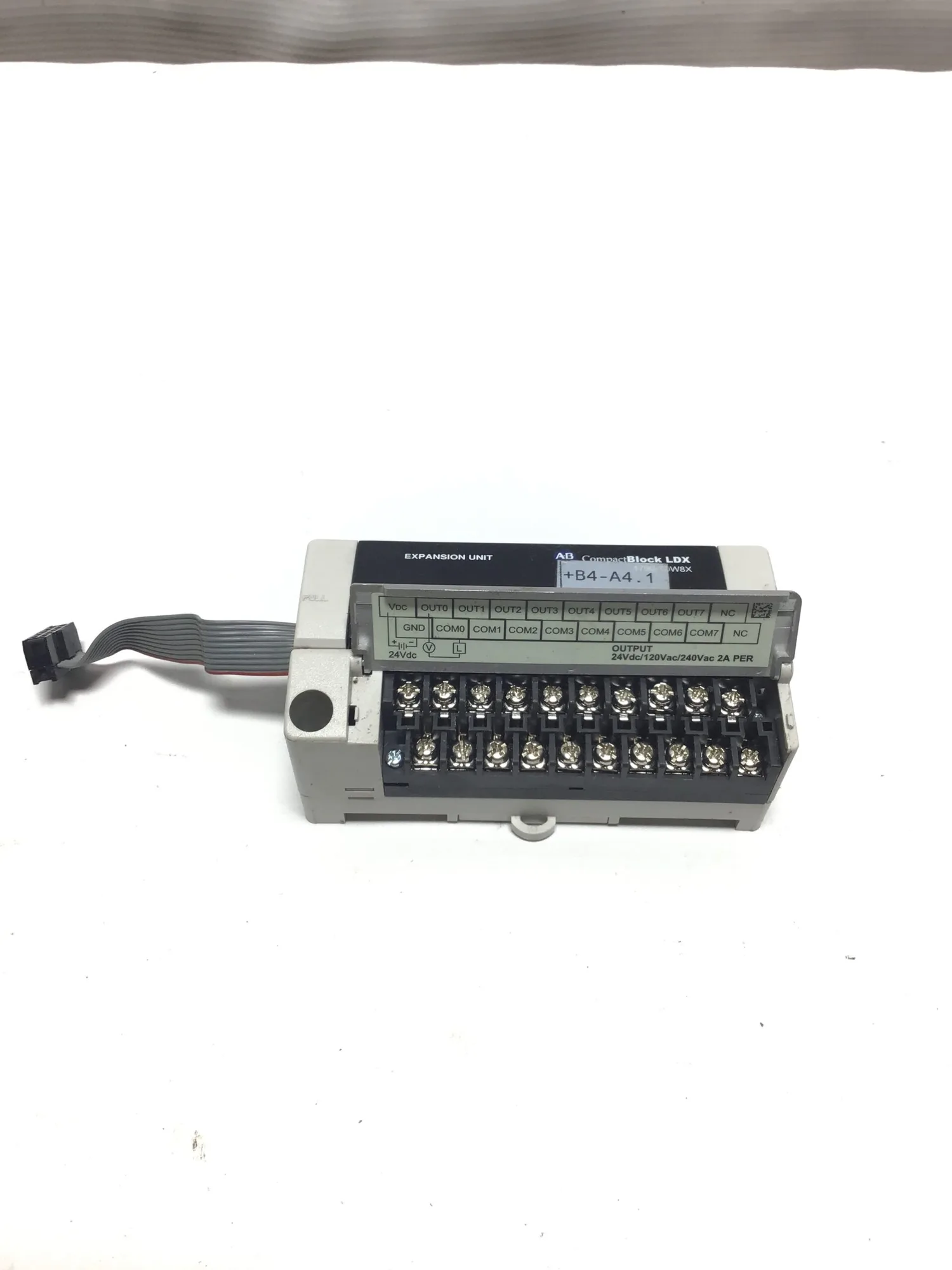

Allen-Bradley 1790-T0W8X Compact Block LDX Module Ser B 8 Relay Outputs
Overview
Description
Introducing the Allen-Bradley 1790-T0W8X Compact Block LDX Module, Series B, designed for optimal performance in industrial automation. This module features 8 relay outputs, providing reliable control with a 5VDC bus power and a robust capacity of 120VAC/220VAC and 24VDC at 2A per channel, ensuring versatility for various applications. With a total output capability of 16A for common connections, this compact solution is engineered for efficiency and durability, making it an essential addition to your control system. Upgrade your operations with the precision and reliability of Allen-Bradley technology.
⚡ Features 8 relay outputs for versatile automation control
📏 Compact design saves valuable panel space
🔋 Supports 5VDC logic, ideal for modern control systems
🔄 Flexible bus powered operation for efficient installation
🔧 Rated for 120VAC/220VAC input — broad voltage compatibility
🔁 24VDC output with reliable performance
📊 Each channel supports 2A current, perfect for mid‑range loads
🔒 16A common contacts ensure stable switching capacity
🛠️ Ser B version — proven durability and quality engineering
📦 Industrial‑grade build for use in PLC, machine control, or automation systems
⚙️ Easy integration with existing Allen‑Bradley CompactBlock architectures
📍 Designed for high‑uptime manufacturing environments
🔁 Ideal replacement or upgrade part for industrial control panels
Specifications
| Dimensions | 5 × 2 × 2 in | 5 × 2 × 2 in |
|---|---|---|
| Weight | 5 lbs | 5 lbs |
Weight: 5 lbs
Dimensions: 5 × 2 × 2 in
