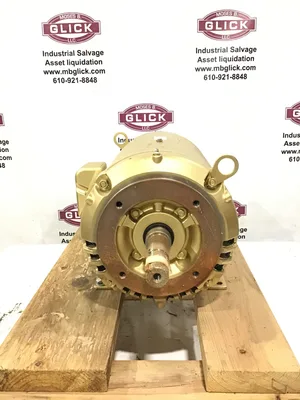

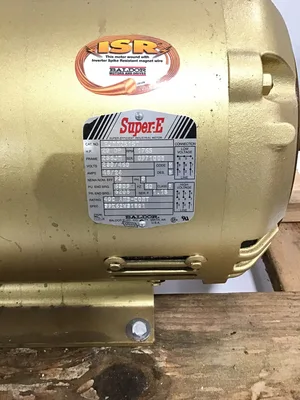

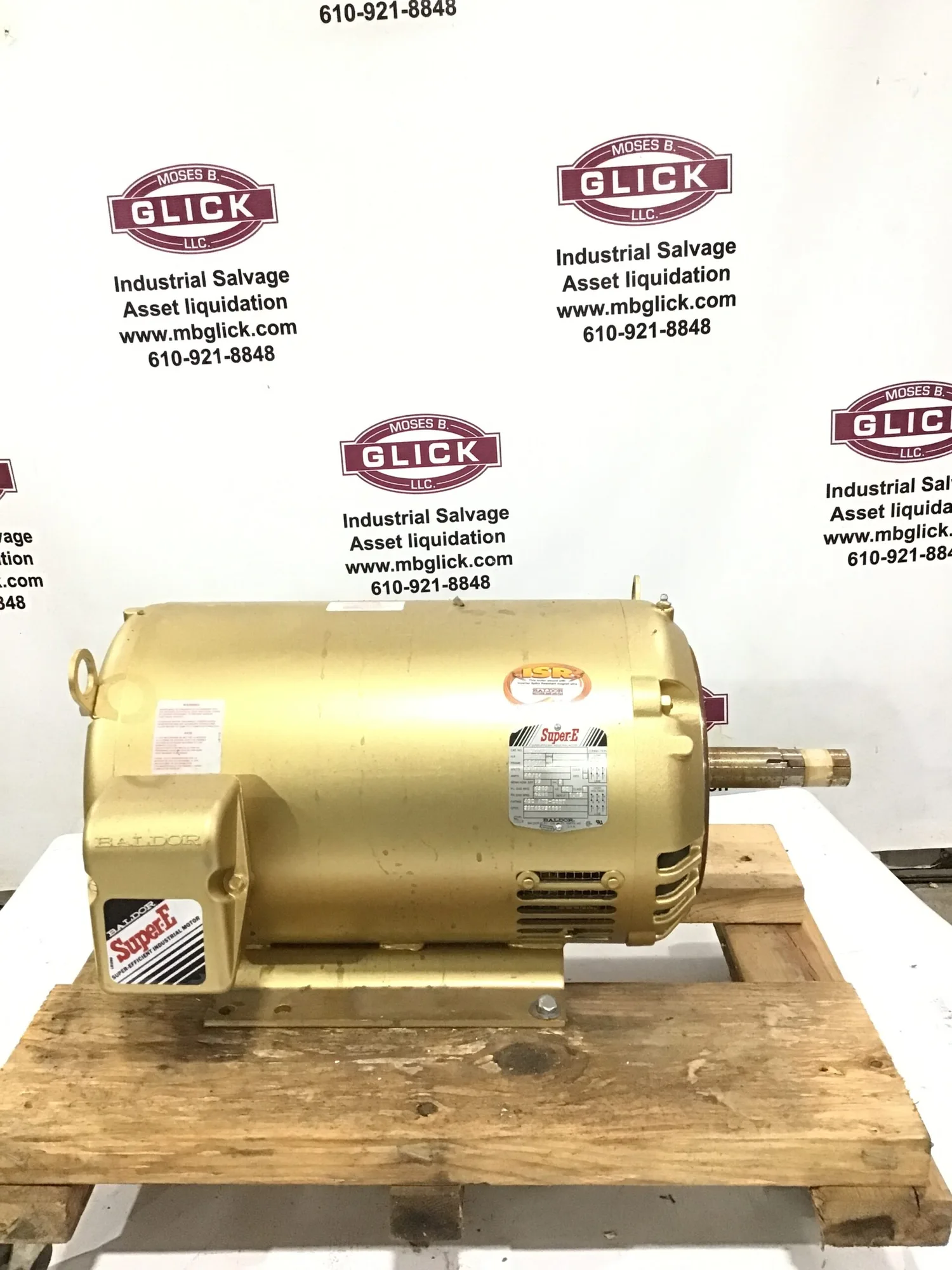

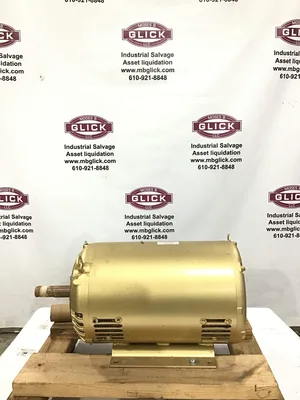

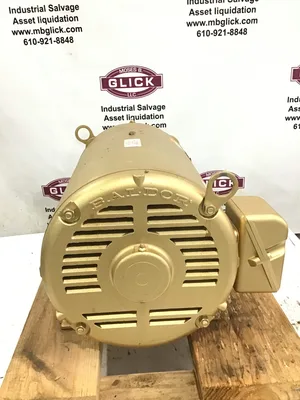

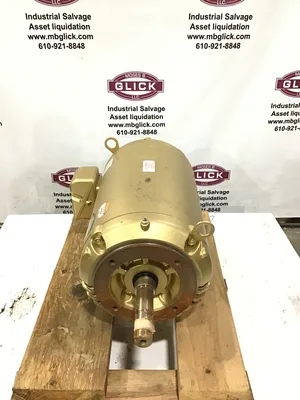

Experience unparalleled efficiency with the Baldor EJMM251ST Super Efficient Industrial Motor. This robust 20HP, 3-phase motor operates at 1765 RPM and is designed for versatility with dual voltage options of 230/460V, drawing 48/24 Amps. Engineered for continuous operation in ambient temperatures up to 40°C, it boasts a remarkable NEMA nominal efficiency of 93%, ensuring reduced energy consumption and lower operational costs. With a Class F insulation rating and a service factor of 1.15, this motor is built to withstand demanding industrial applications while delivering reliable performance. Upgrade your machinery with the Baldor EJMM251ST and enjoy the benefits of superior efficiency and durability.
💪 Rated at 20HP, delivering powerful and consistent performance for demanding machinery and motor-driven systems.
🔌 Designed for 3-phase (3PH) electrical systems, ideal for industrial power setups.
🔄 Operates at 1765 RPM, providing smooth and dependable rotational speed for continuous-use applications.
🔋 Dual voltage rated at 230/460V, allowing compatibility with multiple industrial electrical configurations.
⚡ Full load current rating of 48/24 Amps, supporting efficient high-power operation.
🌡️ Rated for 40°C ambient continuous duty (Amb Cont), suitable for standard industrial environments requiring nonstop performance.
🛡️ Equipped with Class F insulation, offering enhanced thermal protection and durability under demanding operating conditions.
⚙️ Built with Design B, commonly used for general-purpose industrial motors requiring normal starting torque and low starting current.
🔠 Features Code H, indicating the motor’s locked rotor kVA characteristics for startup performance.
📈 Includes a 1.15 Service Factor (SF), allowing the motor to safely handle temporary overload conditions beyond its rated horsepower.
⏱️ Operates on 60Hz frequency, standard for many industrial and commercial electrical systems.
🏭 Built to NEMA nominal efficiency of 93%, providing energy-efficient operation and reduced power consumption.
| Dimensions | 28 × 22 × 20 in | 28 × 22 × 20 in |
| Weight | 260 lbs | 260 lbs |

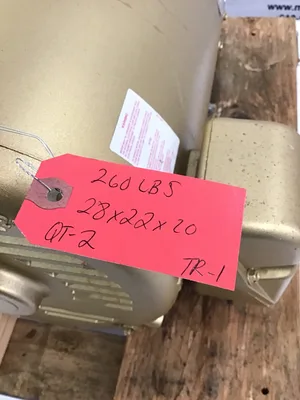

Weight: 260 lbs
Dimensions: 28 × 22 × 20 in
