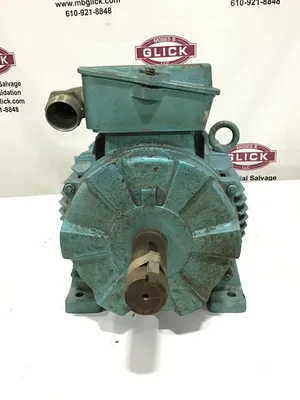

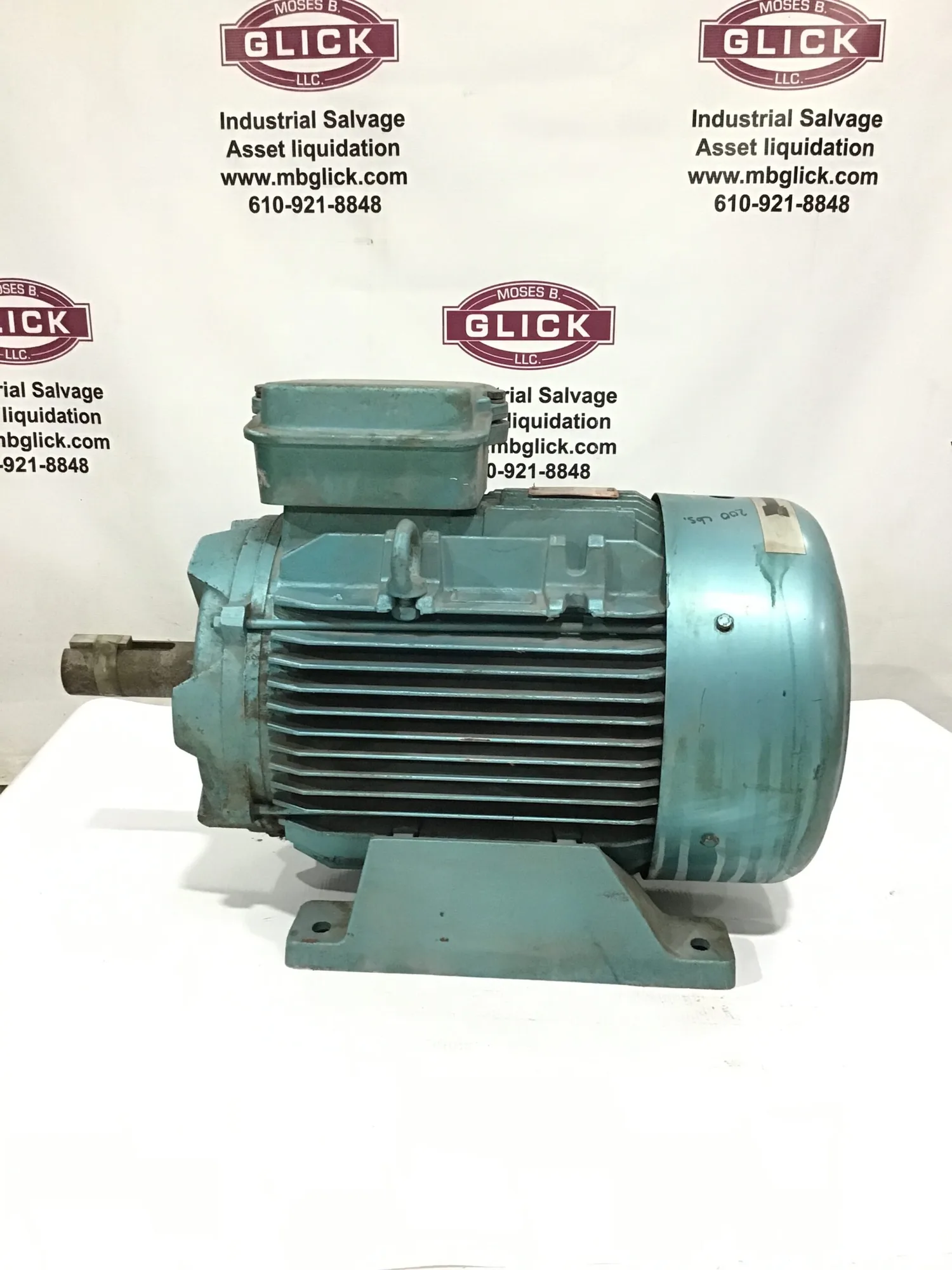

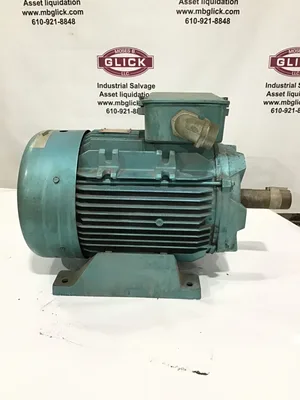

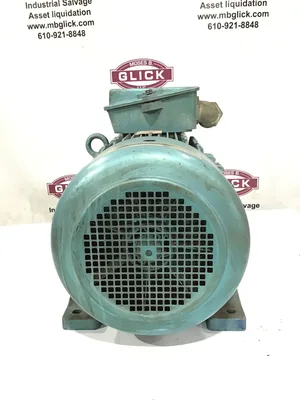

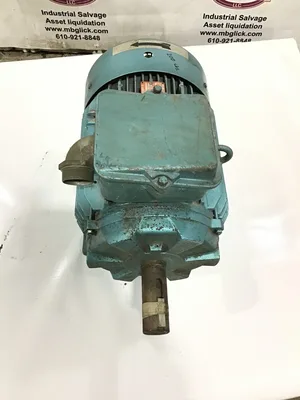

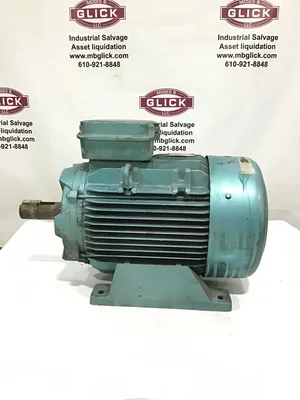

Leroy Somer B21QL4DB 30 HP Electric Motor 286T 3-Phase 1750 RPM
Overview
Description
Power your operations with this Leroy Somer 30 HP 3-Phase AC Motor, built in Canada for industrial-grade reliability and performance. Delivering 1750 RPM across a versatile voltage range of 200/230/460V, this motor is ideal for heavy-duty applications such as pumps, compressors, conveyors, and machinery. Its robust 286T frame, F-class insulation, and precision bearings (DE 6310 / OPP 6210) ensure smooth, long-lasting operation even under continuous duty. Designed for professionals who demand strength, efficiency, and durability, this motor is a trusted solution for replacing or upgrading critical industrial equipment.

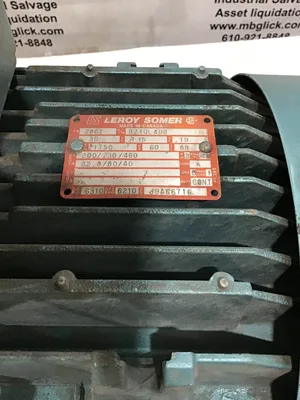

Specifications:
Brand: Leroy Somer
Model / Part Number: B21QL4DB
Frame: 286T
Horsepower (HP): 30 HP
Phase: 3-Phase AC
RPM: 1750
Voltage: 200/230/460V
Frequency: 60 Hz
Amperage: 82.8/80/40 A
Duty: Continuous (CONT)
Insulation Class: F
Ambient Temp: 40°C
Bearing Info: DE 6310, OPP 6210
Features:
Durable industrial-grade AC motor designed
Heavy-duty frame with robust mounting options
Excellent choice for pumps, compressors, conveyors, and other industrial machinery
Leroy Somer quality, trusted worldwide for reliability
Specifications

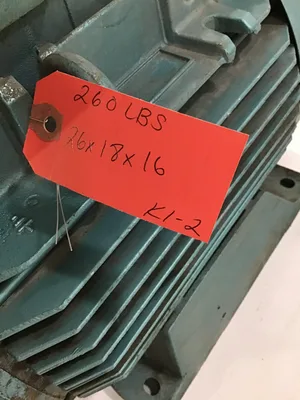

| Dimensions | 26 × 18 × 16 in | 26 × 18 × 16 in |
|---|---|---|
| Weight | 260 lbs | 260 lbs |
Weight: 260 lbs
Dimensions: 26 × 18 × 16 in
