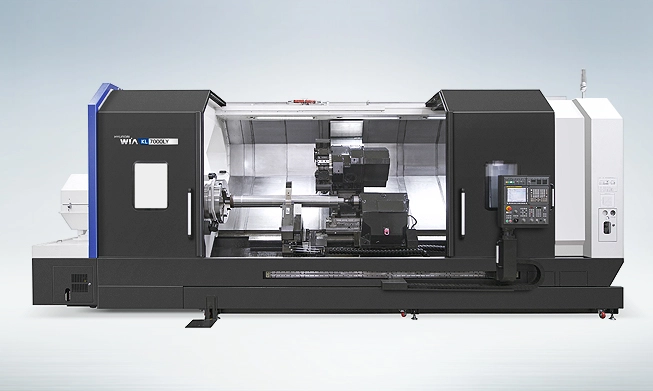

NEW HYUNDAI WIA KL7000LY
Overview
Description
OverviewThe KL7000 features a flat bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
Specifications
Fanuc 32i Series Control
Ø36.2" (920mm) Max. turning diameter
128" (3,250mm) Max turning length
Ø6.5" (165mm) Bar capacity
Powerful 45kW (60 HP) spindle motor
High Torque 5,109lbs/ft. (6,928N.m)
No chuck and cylinder (24" opt)
1,500 RPM
3,000 rpm BMT 85P
15HP / 103.3 ibf.ft torque
A1-15 spindle nose

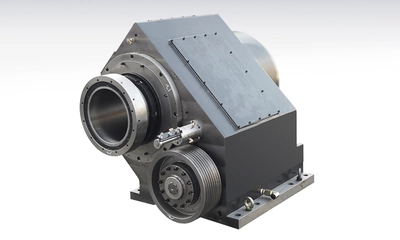

3-Step gear box embedded head stock
Travel Z :19.7"/8.7"/129" (500mm/220mm/3.280mm)
Rapid speed: X/Y/Z : 472 IPM(12m/min) / 394 IPM(10m/min) / 472 IPM(12m/min)

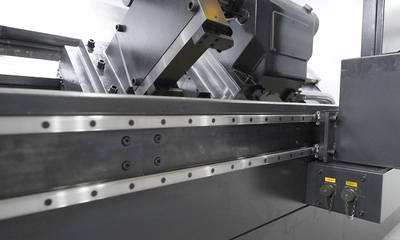

Box guideways
Programmable MT# 6 Built in tail stock
Auto Tool Setter
Tool size: 1.3"/Ø 3.1" (32mm/Ø80mm)
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Double Pre-Tensioned Ball screws
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 36.2 in.
Max Turn Len: 128 in.
Chuck Size: 32 in.
Spindle RPM: 1,500
Spindle HP: 60
Spindle Torque: 5109
Rapids(X): 473
Rapids(Y): 394
Rapids(Z): 623
Travel(X): 19.7
Travel(Y): 8.7
Travel(Z): 129
No of Tools: 12
