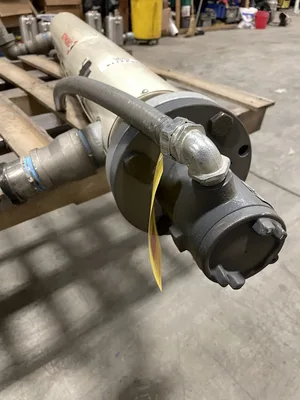

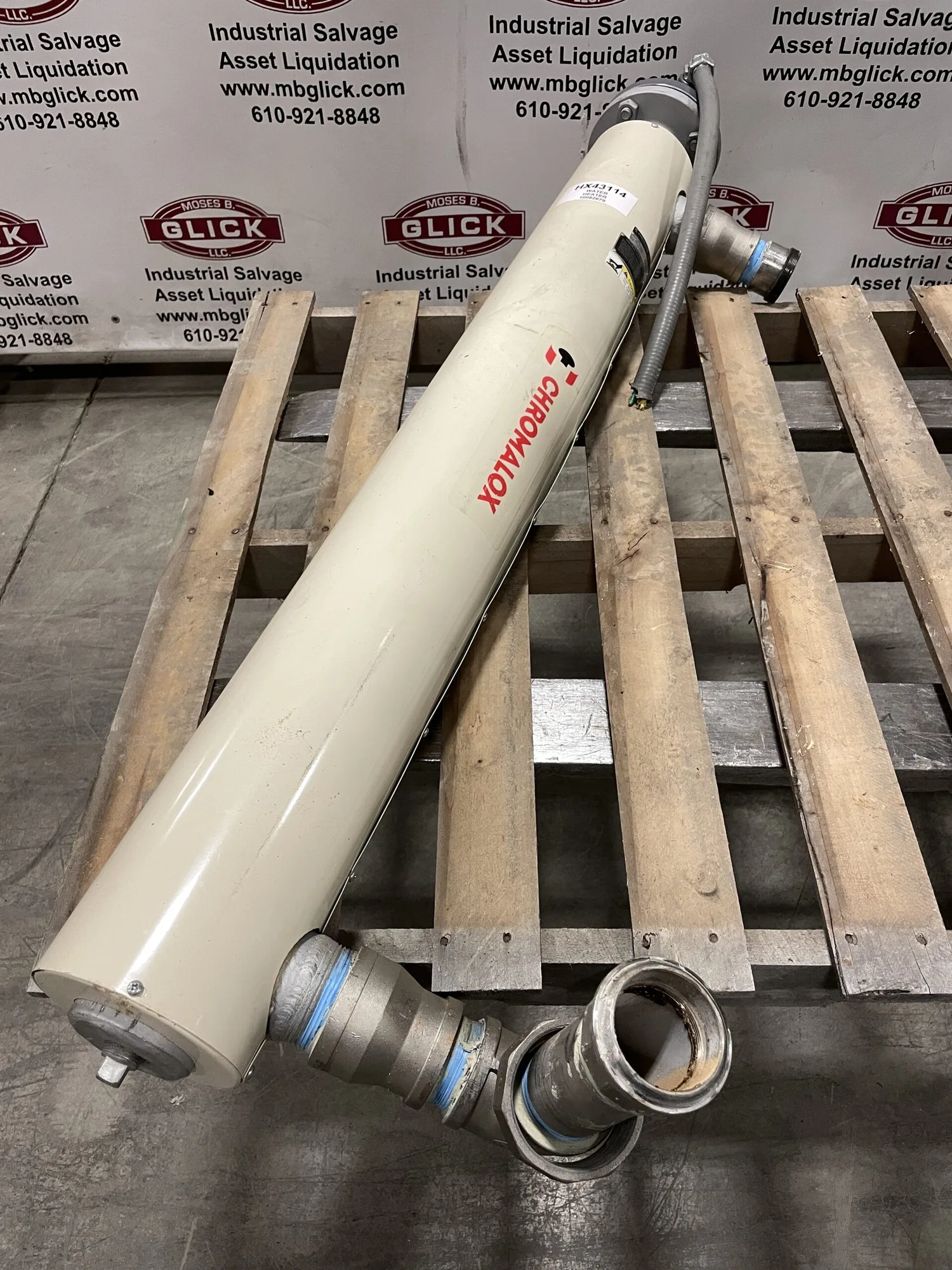

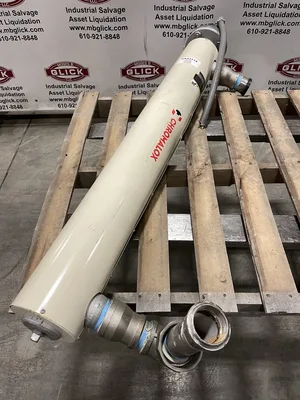

Chromalox NWH-03-018P-E4XX Clean Water Circulation Heater 18kW 480V

3″ FNPT PORTS
TYPICALLY HAS A RANGE OF 60°F – 180°F  (ACUTAL IS UNKNOWN)
OVERALL DIMENSIONS: 63″ L X 18″ W X 9″ D
The Chromalox NWH-03-018P-E4XX is a clean water circulation heater designed for efficient inline heating of water in industrial and commercial process systems. It is part of Chromalox’s NWH Series, which uses an electric immersion heating element mounted in a pressurized vessel to heat flowing fluid as it circulates through the unit.

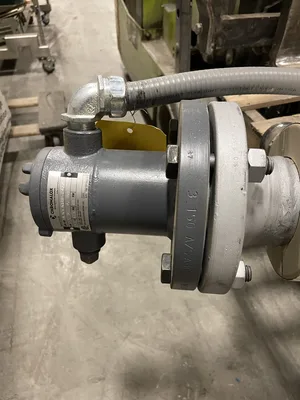

This model is typically configured around an 18 kW heating capacity and is built for continuous-duty operation in applications requiring stable and controlled water temperatures. The “E4XX” configuration generally indicates a moisture-resistant terminal enclosure option, providing enhanced protection in humid or washdown environments.
The heater features a rugged carbon steel vessel with electric resistance heating elements that transfer energy directly into the water stream. An integrated thermostat or external control system is used to maintain precise outlet temperature, making it suitable for automated process systems.

Weight: 170 lbs
Dimensions: 68 × 22 × 13 in
