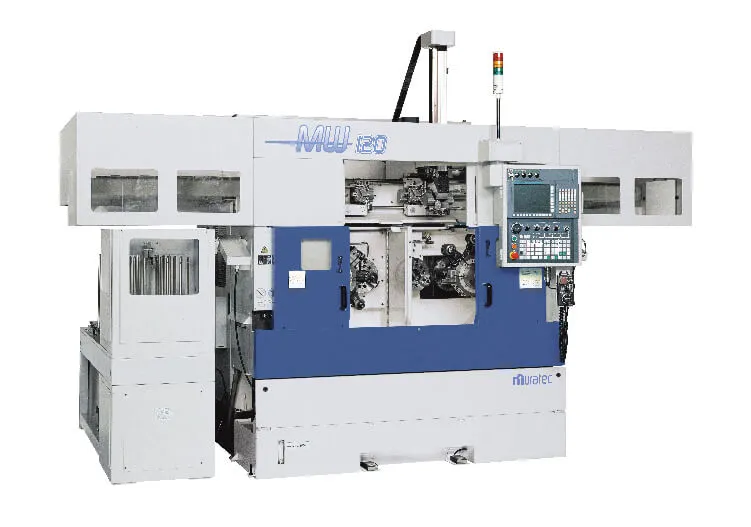

Murata Machinery MW120 Automated Turning Center

OverviewThe MW120 is a self-contained machine that provides exceptional rigidity and features a column and turret bar design to support heavy-duty part cutting. With the available single, or dual three-axis gantry loader, this machine provides the ability to offer flexible machine utilization whether it is for two simultaneous part cutting processes, or turnaround type cutting applications.
When it comes to flexibility, high productivity, and even more versatility, the MW120 is the optimal solution for manufacturers seeking high-speed turning of heavy-duty parts. For even greater efficiency, accurate parts and shorter cycle times, our dual, high-speed three-axis gantry and turret axes on the MW120 remarkably reduce cycle time.

The high accuracy design of the MW120 features flexible machine utilization for two simultaneous cutting processes, as well as turnaround type applications.
With the available high-speed single, or twin independent gantry robot loaders, this machine provides remarkably reduced load/unload time.
Designed for high-volume production with time as little as 16 seconds, the MW120 is great for tight tolerance requirements and hard turning applications.

Max Turn Dia: 3.14 in.
Max Turn Len: 4.72 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 1.34
Rapids(X): 944 ipm
Rapids(Z): 944 ipm
No of Tools: 8 x 2
