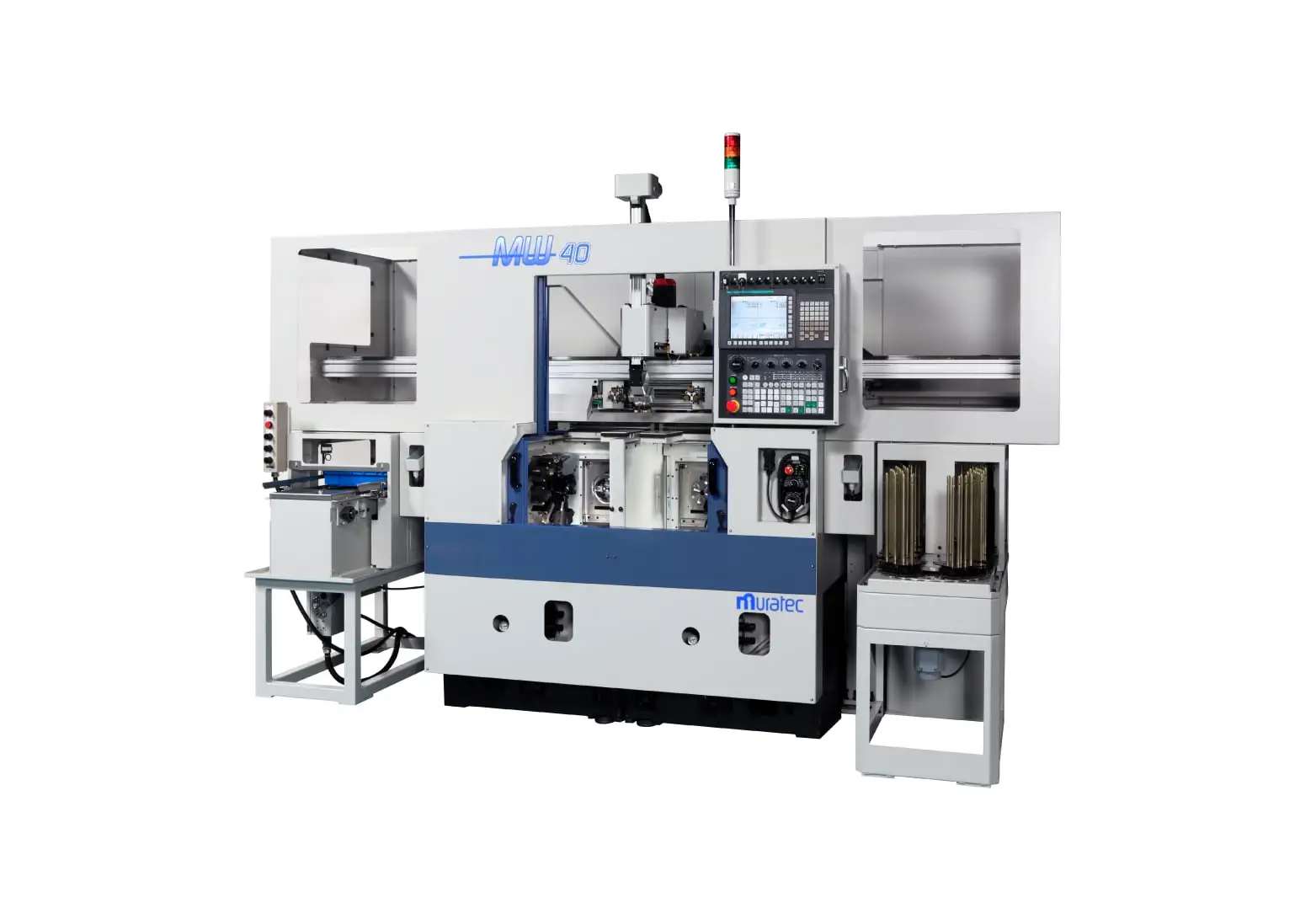

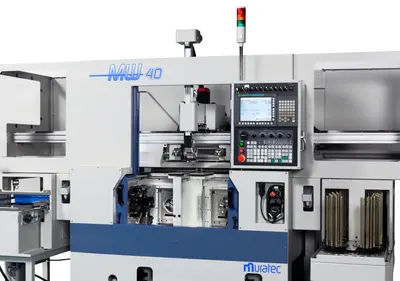

Murata Machinery MW40 Automated Turning Center

OverviewThe MW40 offers more capabilities than ever for the ultra-precise machining of smaller parts. Designed to provide minimal thermal displacement during operation, this machine is the optimal solution for exact turning requirements. The machine's energy saving, compact size attributes to its efficiency as it allows users the capabilities they need, while reducing floor space usage.
The MW40 is a flexible, versatile machine, and like all machines in the MW series, it comes equipped with two spindles allowing flexible part processing. Additionally, this machine is available with live tooling and Y-axis milling capabilities allowing for limitless production of small precise parts.
A self-contained solution, the MW40 is an example of the quality of machine that only Murata Machinery USA can deliver. Offering versatility and easy setup change, the MW40 stands apart from the competition when it comes to delivering small parts with super precision. Contact us today to see if the MW40 is the right fit for you.

The MW40 is a high-precision machine that offers more capabilities than ever for the ultra-precise turning of smaller parts.

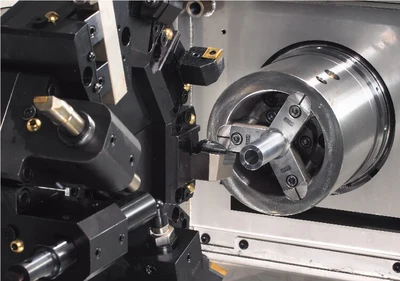

Its twin spindles allow the MW40 to perform simultaneous operations from a single, self-contained source.
The MW40 is designed for compact line operation and supports facilities seeking to save space.

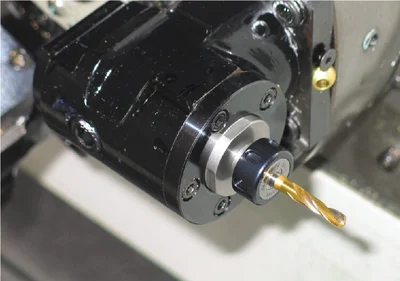

Single or Twin Gantry Robot Loader(s) | Live tooling with full C-axis | Y-axis

Max Turn Dia: 3.5 in.
Max Turn Len: 1.9 in.
Chuck Size: 5 in.
Spindle RPM: 6,000
Spindle HP: 5
Rapids(X): 590
Rapids(Y): 472
Rapids(Z): 590
No of Tools: 10 x 2 STA
