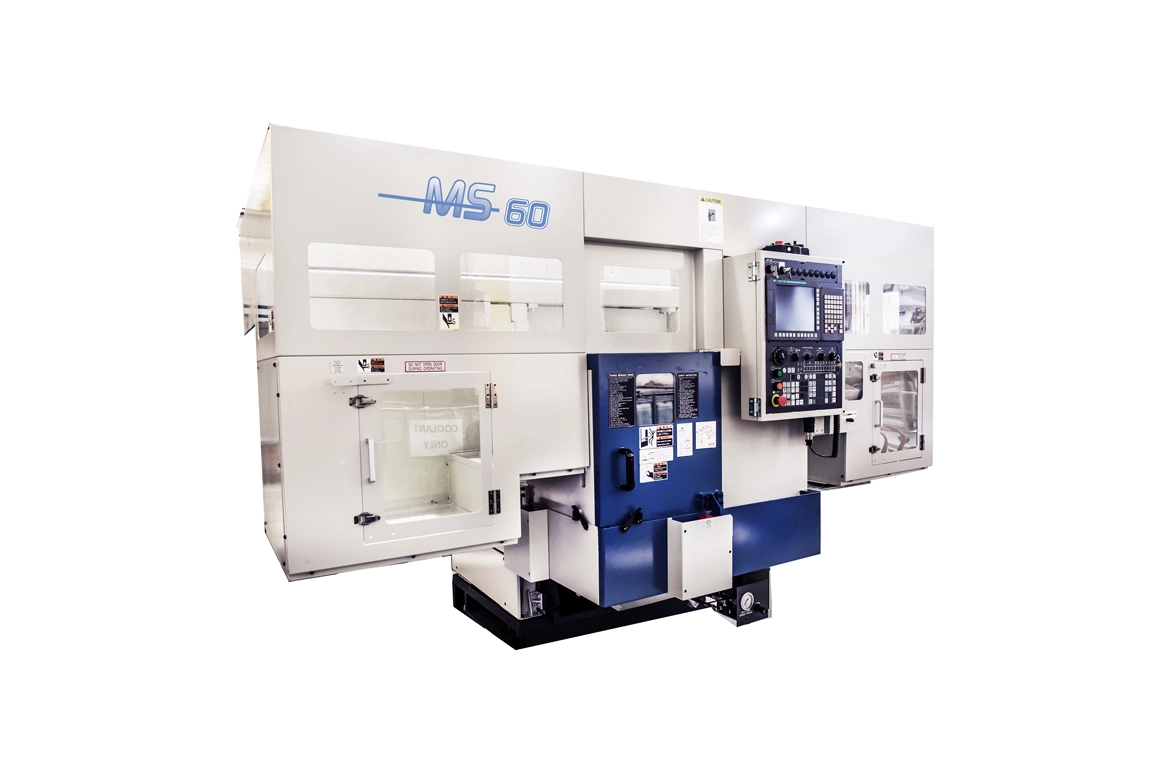

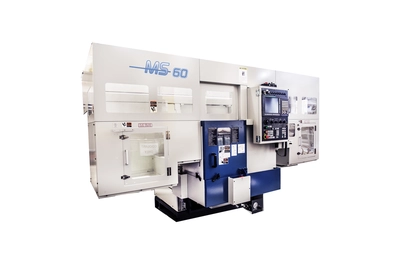

Murata Machinery MS60 Automated Turning Center

OverviewThe MS60 is a single spindle CNC turning center that is revolutionizing automated turning with its compact size. Its small footprint paired with its high-speed capabilities make this an incredibly efficient machine for high-volume production.
When combined with the twin spindle CNC turning centers from our MW Series, the MS60 provides an ideal third operation solution, or just to add additional turning capacity. With a completely automated gantry loader and a maximum traverse speed of 150 m/min, this machine is in a class of its own when it comes to versatility and efficiency. Built to turn parts up to 120mm in diameter, the MS60 is a popular choice for the automotive industry, general machine shops and beyond.
Like all Murata Machinery, USA machines, the MS60 is designed with reliability and automation in mind.

Ideal for automated single spindle needs, or in-line operations. The MS60 is an optimal solution for line planning and can work alongside any of the twin spindle machines from our MW or MD Series.
In addition to multi-machining, the MS60 will deliver longer unattended operations, reducing the cost of labor.
Designed with automation in mind, as well as a fully automated gantry, the MS60 can be configured to meet your unique operating needs.

Max Turn Dia: 3.14 in.
Max Turn Len: 4.72 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 14
Rapids(X): 944 ipm
Rapids(Z): 944 ipm
No of Tools: 8
