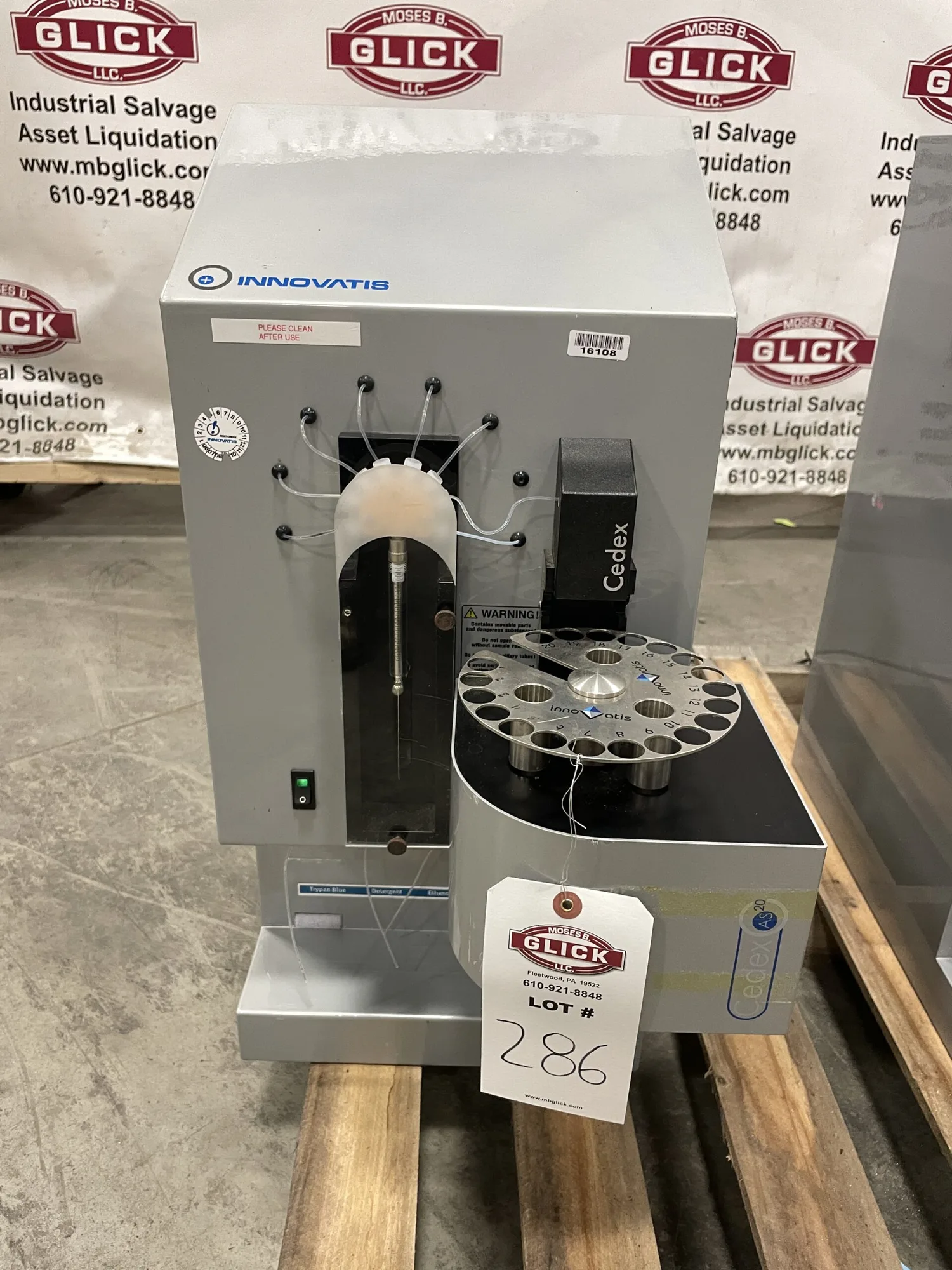

Innovatis Cedex Automated Cell Counter w/ AS20 Autosampler

Model: Cedex Automated Cell Counter with AS20 Autosampler
Cell Concentration Range: 5 × 10⁴ to 1 × 10⁷ cells/mL
Cell Size Range: 8 µm to 40 µm diameter
Image Resolution: ~2.1–2.2 µm per pixel
Sample Volume Required: ~1000 µL (1 mL) per measurement
Autosampler Capacity: Up to 20 samples per batch
Throughput: ~20 samples processed in ~90 minutes with AS20
Operating Temperature: 10 °C to 35 °C ambient; optimal 20 °C–30 °C
Relative Humidity: 20 %–80 % non‑condensing
Analyzer Power Requirements: 100–250 VAC, 50/60 Hz
Autosampler Power Requirements: 12 VDC
Analyzer Energy Consumption: ~60 W
Autosampler Energy Consumption: ~10 W
The Innovatis Cedex Automated Cell Counter with AS20 Autosampler is a fully automated cell analysis system designed to deliver rapid and reproducible measurements of cell concentration, viability, and size distribution for suspension cultures. By integrating an AS20 autosampler module, the system enables unattended, high‑throughput processing of multiple samples, helping laboratories streamline workflows and improve data consistency.
The Cedex analyzer uses advanced imaging and pattern recognition algorithms to distinguish live and dead cells based on staining characteristics and morphological features. Its intuitive software interface allows users to set analysis parameters, review results, and export data for downstream documentation or process control. Combined with precise fluid handling and the autosampler’s ability to queue and deliver samples sequentially, the system enhances efficiency and reduces manual labor in busy cell culture, bioprocess development, and quality control environments.
Engineered for reliability, the Cedex platform accommodates a wide range of cell types and concentrations, supports routine sampling schedules, and integrates easily into laboratory workflows. The addition of the AS20 autosampler expands sample throughput and improves reproducibility by eliminating manual pipetting variability.
Whether used for routine cell growth monitoring, viability assessments, or process optimization, the Innovatis Cedex Automated Cell Counter with AS20 Autosampler offers a robust solution for accurate, high‑throughput cell measurements.

Weight: 104 lbs
Dimensions: 31 × 18 × 30 in
