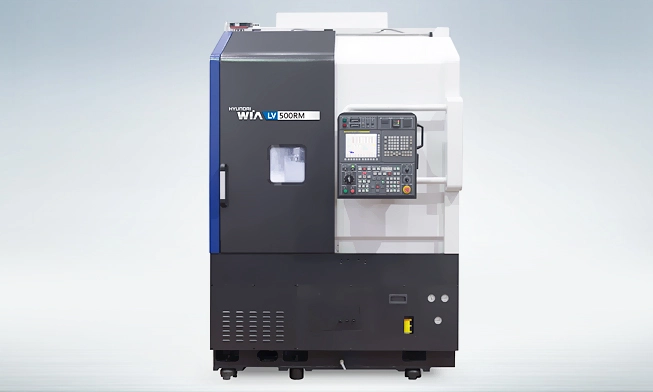

NEW HYUNDAI WIA LV500L
Overview
Description
OverviewThe HYUNDAI WIA LV500R/L series of Vertical Turning Center features a box type column. This single piece, square type column offers the ultimate stability by absorbing vibration and eliminating twist. This combination delivers superior precision even during heavy cutting. Also available in a milling configuration having live tooling and C axis: Live Tooling (M)
Specifications
Fanuc 32i-A Control
&Oslah;21.7" (550mm) Max. turning diameter
23.6" (600mm) turning length
Powerful 40 HP (30kW) spindle motor (US Std)
High Torque 829 lbs./ft. (1,124 N.m)
15" chuck
2,000 RPM Spindle
A2-11Spindle nose
Live Tool: 3,000 rpm
5 HP / 43.4 lbf.ft torque
Travel (X/Z): 12.8"/24.6" (325 mm/ 625 mm)
Rapid speed: 787 IPM (20m/min) X, and 709 IPM (18m/min)
Linear guideways
Auto Tool setter
Tool size: 1.3" / &Oslah; 2" (?32mm / &Oslah;50mm)
Servo Turret
Bed Flushing
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Chip Conveyor (42" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 21.7 in.
Max Turn Len: 23.6 in.
Chuck Size: 15 in.
Spindle RPM: 2,000
Spindle HP: 40
Spindle Torque: 829
Rapids(X): 787
Rapids(Z): 709
Travel(X): 12.8
Travel(Z): 24.6
No of Tools: 12
