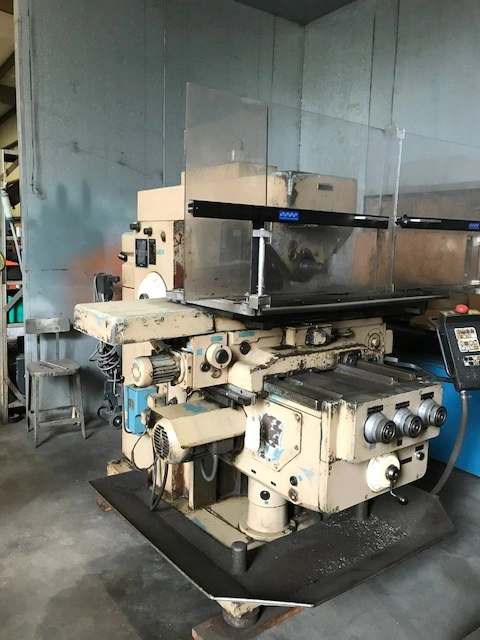

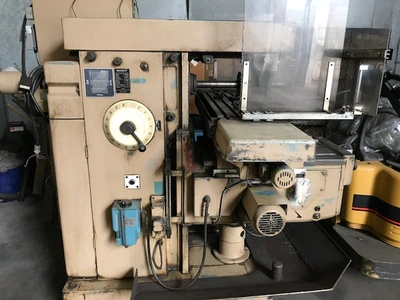

UD100390: Heckert 315S

Specifications:

Table:
Table working surface: 49" x 12.4"
Longitudinal travel: 33-1/2"
Cross travel: 11"
Vertical travel: 14"
T-Slots - Number & Width: 4, 9/16"
Distance between T-slots: 2"
Maximum weight of workpiece: 2,200 Lbs

Spindle:
Spindle taper: #50
Spindle speeds (18): 28-1400 RPM
Maximum distance Spindle Center to Table: 23"
Minimum distance Spindle Center to Table: 3"
Spindle motor: 8 HP

Net weight of machine - approximate: 6,600 Lbs
Electrics: 460/3/60
