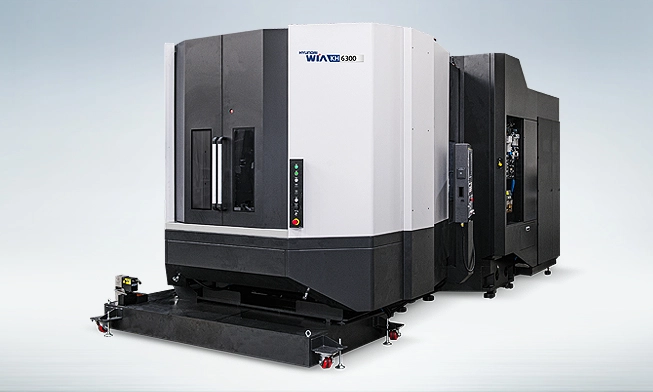

NEW HYUNDAI WIA KH6300

OverviewThe KH6300 is manufactured using the latest state-of-the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA's outstanding line of CNC Horizontal Machining Centers. The KH6300 features a 2 step geared spindle, rigid construction and spacious work area. This powerful horizontal machining center delivers accurate machining and maximum productivity.

FANUC 31i-B Plus control
8,000 RPM spindle (6,000 RPM optional)
Two-step geared spindle for high-torque cutting
Big Plus dual-contact spindle taper (BCV No. 50)
47 HP spindle motor
Spindle torque: 1,065 lb-ft / 669 lb-ft
Maximum load capacity: 2,646 lb
Maximum workpiece size: 41.3 in diameter x 53.1 in height
Automatic tool changer with 90 tools, servo-driven
Rapid traverse rates: X, Y, and Z axes 1,181 IPM
Large box guideways on all axes for stable motion
Rotary turn APC for high-speed pallet changing
Largest tool capacity in its class
1,015 PSI through-spindle coolant
Oil-jacket spindle cooler
Massive box-type cast iron machine base
Step-type column structure designed to withstand Z-axis thrust
Portable manual pulse generator
Program and data protection key switch
Slanted telescopic way covers
Chip conveyor
Three-color tower signal light

Table Size: 24.8 in.
Magazine: 60
Spindle RPM: 8,000
Spindle Taper: BCV 50
Spindle HP: 35
Spindle Torque: 1065
Rapids(X): 1181
Rapids(Y): 1181
Rapids(Z): 1181
Travel(X): 41.3
Travel(Y): 33.5
Travel(Z): 39.4
