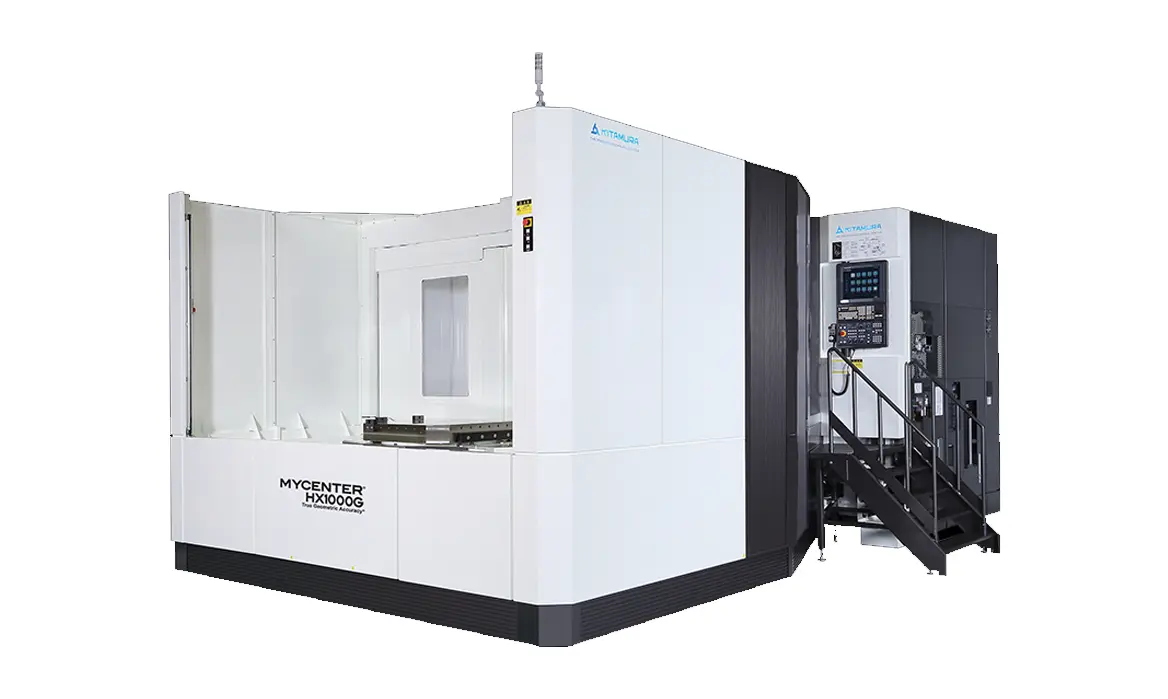

NEW KITAMURA MYCENTER-HX1000G

OverviewThe Mycenter-HX1000G horizontal machining center delivers high-power, high-precision cutting for oversized workpieces, even under the most demanding conditions.

Table Size: (1000 x 1000mm) 39.4" x 39.4"
Travel (X, Y, Z): (2040 x 1350 x 1370mm) 80.3" x 53.1" x 53.9"
Spindle Taper: NST No. 50
Spindle Speed: 35~8,000 min-1 **12,000 min-1 Option; 4-Step Gear Driven
Tool Storage Capacity: 150 Pcs. - 200 Tools Optional
Tool Change Time (T-T/C-C): 6.7 Sec. /12 Sec. Minimum
Rapid Feed (X,Y,Z): 36m/min (1,417ipm)
Rapid Feed (B): 11.1 min-1 (4,000deg./min)
Power Requirement: 85KVA, 200v AC, 3 Phase

Table Size: 39.4 in.
Magazine: 150
Spindle RPM: 12,000
Spindle Taper: NST 50
Spindle HP: 53
Rapids(X): 1417
Rapids(Y): 1417
Rapids(Z): 1417
Travel(X): 80.3
Travel(Y): 53.1
Travel(Z): 53.9
