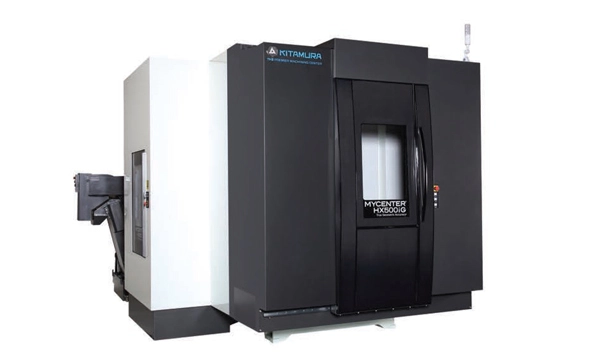

NEW KITAMURA MYCENTER-HX500IG/630

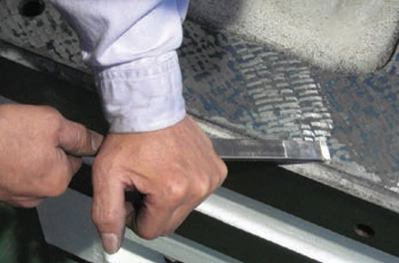

OverviewHighly efficient and productive with your choice of #40, 20,000min-1 and #50, 12,000min-1 geared configurations, the Mycenter-HX500iG provides the power, speed and size to handle your larger and heavier workpieces. Solid boxway construction, linear scales on all axes and a patented twin ballscrew design in the X & Y axes deliver the highest accuracy levels available on the market today along with the rigidity necessary for true, heavy-duty, medium to large part machining.

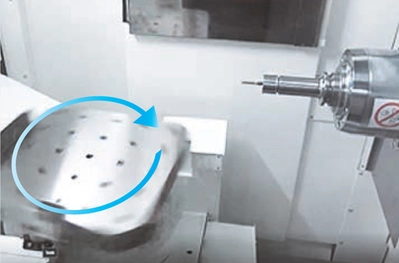

Field expandable 2-station APC with high speed 4th axis rotary table with rotary scale. Integral drive motor driven with rapids 43,200deg/min (120min-1)
Ultra-high-speed rapid/cutting feeds, 60m/min (2,362ipm) on solid box ways

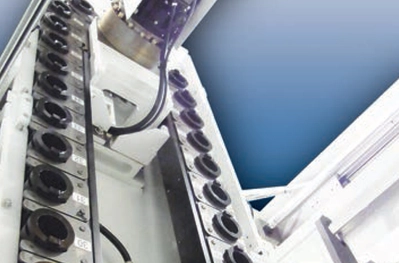

Standard 50T (#40) and 62T (#50) fixed pot ATCs with ultra-high speed tool change, T-T 1.3/2.1 seconds
Powerful dual contact, 4-step gear driven spindles. 20,000min-1 (#40) or 12,000min-1/8,000min-1 Opt. (#50). HSK spindle options available.
Ballscrew cooling and fine resolution linear scale feedback in all axes (X,Y,Z)
Standard 220psi coolant thru the spindle and wash coolant
Double decker style chip conveyor and filtration system with conveyor reverse switch
Maximizes Operator Convenience
Customizable for Ultimate Productivity
High Speed Processing, Super Smooth Control Process
Fanuc User-Friendly
Unlimited Lifetime Software Upgrades
Developed for Continual Advancements

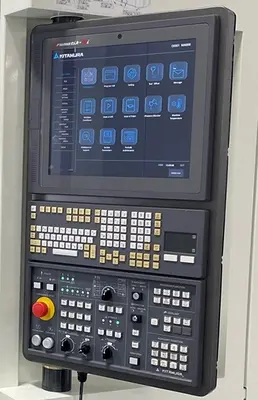

Powerful, Unique Features on the 19" LCD
Customized main menu touch screens
Visual work setting screens
Maintenance Support Functions
Video Guidance
Fanuc User Friendly
Ability to run current Fanuc programs
Little to no modification to existing programs is necessary
Looks and feels like a Fanuc Control
Comfortable and convenient for those customers who are unfamiliar with anything else
Maintenance Support Function
On screen parts identification and ability to visually enlarge machine parts list
Alarm release guidance screens - Instructs where to check should an alarm occur
Periodic maintenance screens help to maintain optimum machine condition, offer longer machine life expectancy and reduce down time.
Kitamura Monitor/Adaptive Control
Detects tool wear and controls cutting federate automatically by monitoring live spindle load during machining.
Tool life is maximized and cycle time is shortened dramatically by adapting to the change in cutting conditions.
Additional benefits include reduction in non-cut time and the prevention of machine crashes/human error.
Standard Features, Advanced CNC Technology
High precision contour control with 1680-block look ahead, 2800/blocks per second processing speeds.
1280 Meters of Memory
8GB CF/USB Data Server
700 Custom Macro Variables
102 Pairs Workpiece Coordinate System
200 Tool Offsets

Table Size: 19.7 in.
Magazine: 50
Spindle RPM: 20,000
Spindle Taper: 40 NST
Spindle HP: 30
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 34.3
Travel(Y): 31.5
Travel(Z): 36.6
