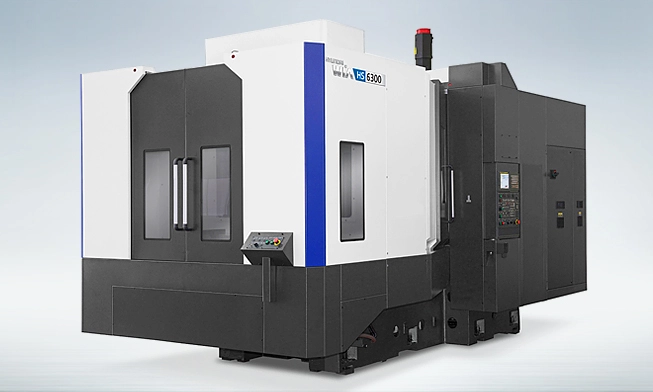

NEW HYUNDAI WIA HS6300 II

OverviewThe HS6300 II is manufactured using the latest state-of-the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA's outstanding line of CNC Horizontal Machining Centers. The HS6300 has been designed to meet the demanding requirements found in today metal working market.

Fanuc 31i-B Control
Max. 10,000 RPM built-in spindle [6,000rpm_H/Torque]
BCV #50 spindle taper
Powerful 60.3 HP (45 kW) spindle motor (S3 15%) [73.8 HP (55 kW) _H/Torque]
Spindle torque 459.5 lbf.ft (623 N.m) at 470 RPM [595.2 lbf.ft (807 N.m)_H/Torque at 355rpm] [Opt]
Max. 2-3,307 lbs (1,500 kg) Load capacity
Ø41.3"x H55.1" (Ø1,050 x H1,400mm) Working size

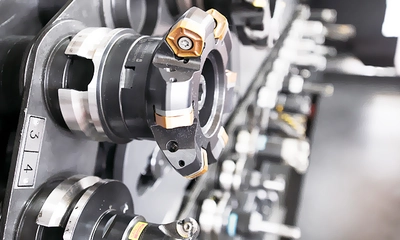

60 ATC driven by servo motor
2,362 ipm (60m/min) X, Y and Z axis rapid speed
Large Linear Roller guide ways
1,000 PSI through the spindle coolant
Oil jacket spindle cooler
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Qualified edge locators

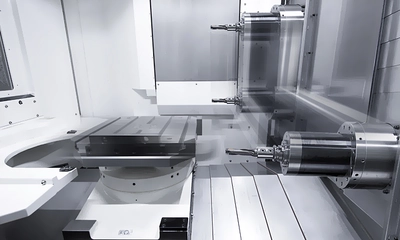

High precision taper cone type pallet clamping system
Pallet rotation at pallet loading station
Portable Manual Pulse Generator
Program and data protection key switch
Slanted telescopic way covers
Chip Conveyor (39.1" discharge height)
3 color tower signal light

Table Size: 24.8 in.
Magazine: 60
Spindle RPM: 10,000
Spindle Taper: BBT50
Spindle HP: 60.3
Spindle Torque: 459.5
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 41.3
Travel(Y): 35.4
Travel(Z): 39.4
