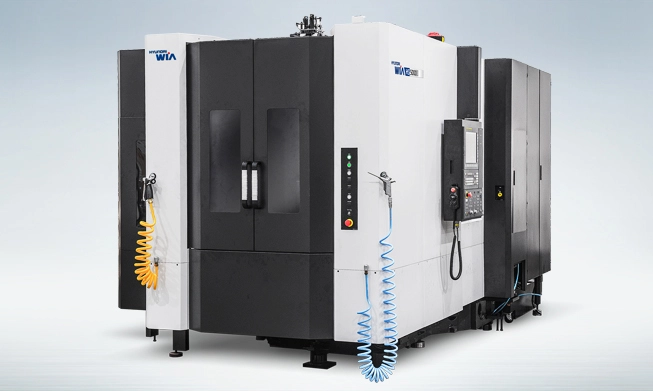

NEW HYUNDAI WIA HS4000II

OverviewThe HS4000II is general purpose horizontal machining center enabling high-efficiency, continuous machining and mass production machining in various areas. HS4000II is equipped with Hyundai's latest spindle, ensuring high-speed and stable high- precision machining with a thick, high rigidity bed. As a result, this model achieves the highest level of speed and accuracy demanded of a horizontal machining center.

FANUC 31i-B control

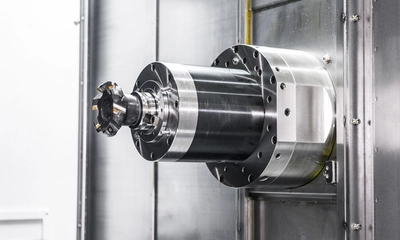

15,000 RPM built-in spindle
40.2 HP (30 kW) spindle motor, S3 15 and 25 percent duty
Rapid traverse rates: 2,362 IPM on X, Y, and Z axes
Large linear roller guideways
Direct-turn pallet changer with two tapped pallets (T-slot optional)
Servo motor driven double-arm ATC with 60 tools (40, 90, or 120 tools optional)
Big Plus dual-contact spindle taper (BCV No. 40)
High-precision spindle with angular contact ball bearings
1,015 PSI through-spindle coolant
Stair-stepped column design
Air cleaning system for pallet placement
Spindle speed override range: 0 to 150 percent in 10 percent increments
Oil-jacket spindle cooler

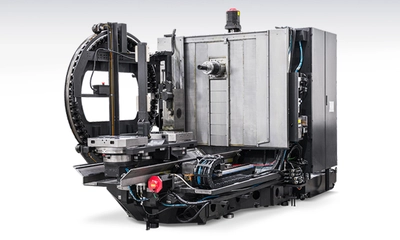

Massive cast iron machine base
Servo motors mounted directly to ball screws via flexible couplings
Pre-tensioned, double-anchored ball screws
Qualified edge locators
High-precision taper-cone pallet clamping system
Pallet rotation at pallet loading station
Program and data protection key switch
Hydraulic oil cooler
Slanted slide covers
Chip conveyor with 38.2 in discharge height
Flood coolant system with large separate coolant tank
Three-color tower signal light
Ball screw shaft cooling

Table Size: 15.7 x 15.7 in.
Magazine: 60
Spindle RPM: 15,000
Spindle Taper: BCV 40
Spindle HP: 40
Spindle Torque: 169
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
