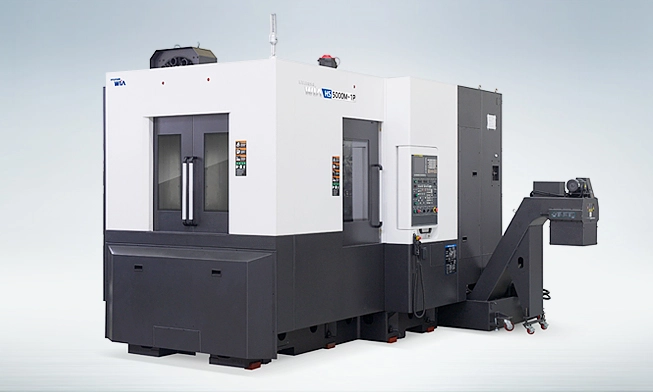

NEW HYUNDAI WIA HS5000M

OverviewThe HS5000M is general purpose horizontal machining center enabling high-efficiency, continuous machining and mass production machining in various areas. HS5000M is equipped with Hyundai's latest spindle, ensuring high-speed and stable high- precision machining with a thick, high rigidity bed. As a result, this model achieves the highest level of speed and accuracy demanded of a horizontal machining center.

Fanuc 31i-B Control
Max. 15,000 RPM Built in spindle
Powerful 49.6 HP (37 kW) spindle motor (S3 10%)
Fast 2,362 IPM (60m/min) X, Y and Z axis rapid traverse

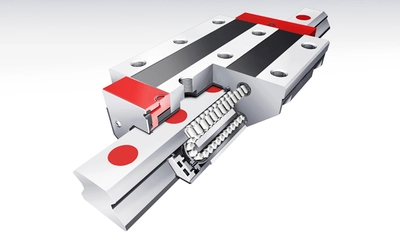

Large linear Roller guide ways
Servo motor driven pallet changer with (2) Tapped pallets [T- slot_Opt.]
Servo motor driven Double Arm ATC 60 Tools [80, 120_Opt.]
Big Plus Dual Contact Spindle Taper(BCV #40)
Stair Stepped Column Design
High precision spindle with angular contact ball bearings
1,000 PSI through the spindle coolant
Stable integral, step and inverse T-shape bed
High pressure air cleaning system on pallet placement
Spindle override 0% to 150% (10% Unit)
Oil jacket spindle cooler
Massive Meehanite cast iron bed
Servo motors mounted directly to the ball screws by flexible coupling
Double Pre-Tensioned Ball screws
Qualified edge locators
High precision taper cone type pallet clamping system
Pallet rotation at pallet loading station
Program and data protection key switch
Hydraulic oil cooler
Slanted telescopic way covers
Dual cabin screw conveyors in the bed
Chip Conveyor (42" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light

Table Size: 19.6 in.
Magazine: 60 [80 / 120 Opt]
Spindle RPM: 15,000
Spindle Taper: BBT40
Spindle HP: 33.5
Spindle Torque: 123.1 lb.ft
Rapids(X): 35.5
Rapids(Y): 27.6
Rapids(Z): 29.5
Travel(X): 33.5
Travel(Y): 27.6
Travel(Z): 29.5
