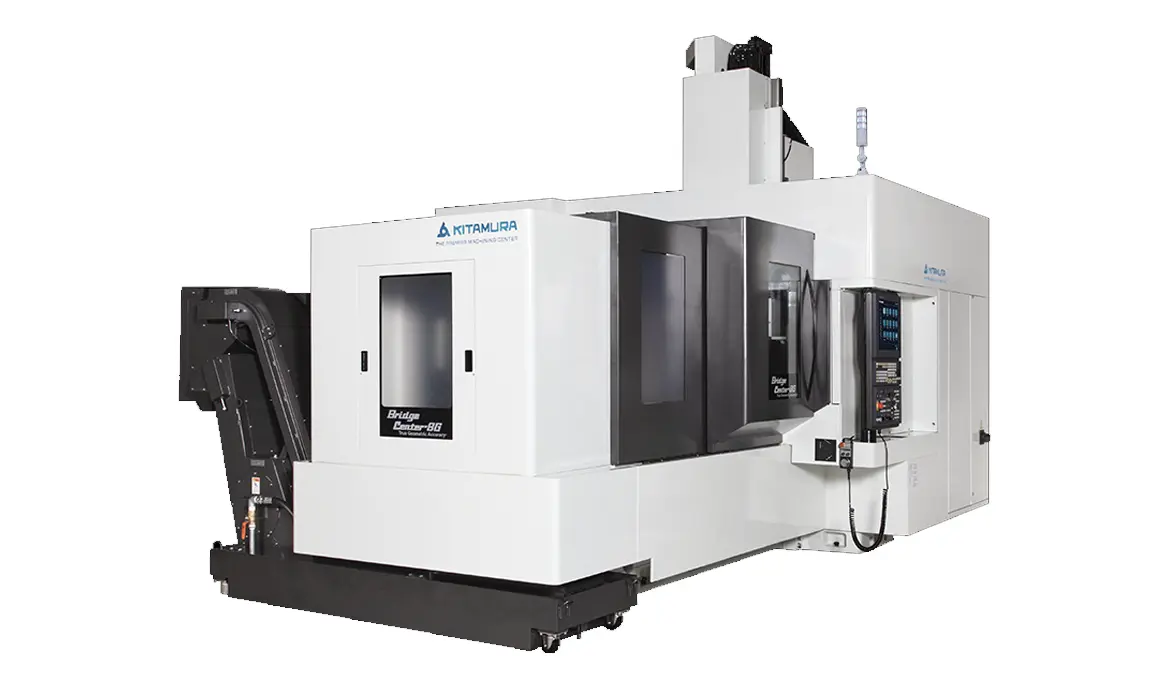

NEW KITAMURA BRIDGECENTER-8G #40

OverviewKitamura Bridgecenter-8G #40 double column vertical machining centers are designed for high-precision machining of extra-large, heavy components. Ideal for a wide spectrum of applications - from heavy-duty cutting of molds to high accuracy machining of high-tolerance parts.

Table Size: (900 x 2500mm) 35.4" x 98.4"
Travel (X, Y, Z): (2032 x 1095 x 710mm) 80" x 43.1" x 28"
Spindle Taper: NST No. 40 (HSK-A63 Opt.)
Spindle Speed: 20-20,000 min-1, 4-Step Gear Driven
Tool Storage Capacity: 40 Pcs. - 60, 80 Tools Optional
Rapid Feed (X,Y,Z): 24m/min (945ipm)
Power Requirement: 35KVA, 200v AC, 3 Phase
Positioning Accuracy: +/-0.002mm (+/- 0.000079") / Full Stroke
Repeatability +/-0.001mm (+/- 0.000039")

Table Size: 35.4 x 98.4 in.
Magazine: 40
Spindle RPM: 20,000
Spindle Taper: NST 40
Spindle HP: 30
Rapids(X): 945
Rapids(Y): 945
Rapids(Z): 945
Travel(X): 80
Travel(Y): 43.1
Travel(Z): 28
