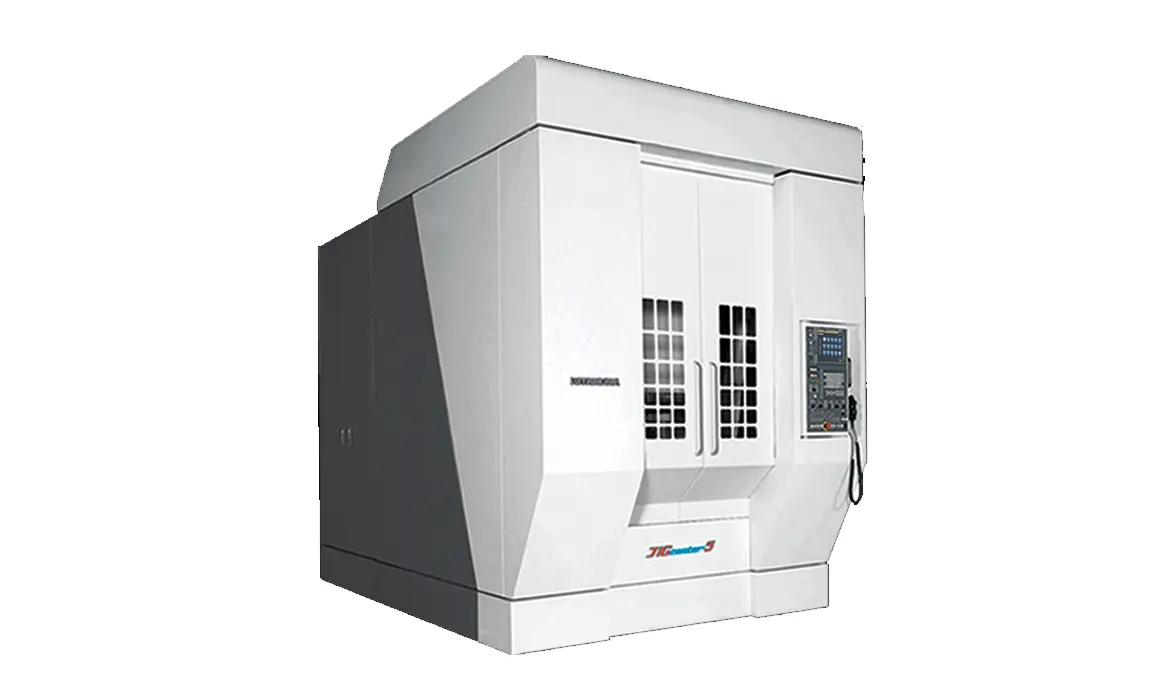

NEW KITAMURA JIGCENTER-5G

OverviewThe box-way, Jigcenter-5G 3-axis Jig Borer delivers the rigidity and ultra-high precision needed for fast, accurate machining of tight-tolerance geometries.

Table Size: (780 x 1200mm) 30.7" x 47.2"
Travel (X, Y, Z): (815 x 745 x 500mm) 32.1" x 29.3" x 19.7"
Spindle Taper: NST No. 40 (HSK-A63 Opt.)
Spindle Speed: 20-20,000 min-1, 4-Step Gear Driven
Tool Storage Capacity: 50 Pcs. - 100 Tools Optional
Rapid Feed (X,Y,Z): 25m/min (984ipm)
Power Requirement: 45KVA, 200v AC, 3 Phase
Positioning Accuracy: +/-0.002mm (+/- 0.000079") / Full Stroke
Repeatability +/-0.001mm (+/- 0.000039")

Table Size: 30.7 x 47.2 in.
Magazine: 50
Spindle RPM: 20,000
Spindle Taper: NST 40 (HSK-A63)
Spindle HP: 17
Rapids(X): 984
Rapids(Y): 984
Rapids(Z): 984
Travel(X): 32.1
Travel(Y): 29.3
Travel(Z): 19.7
