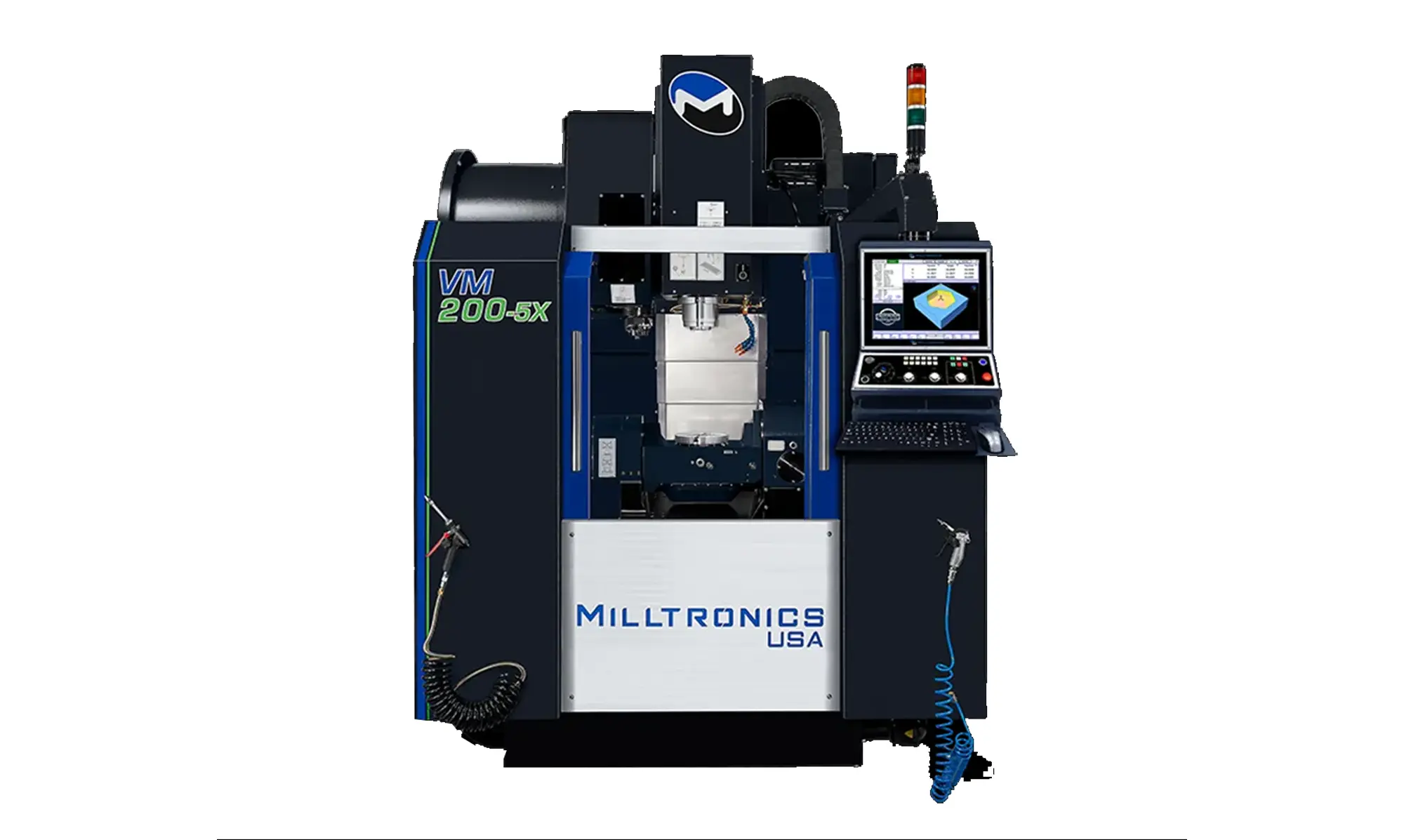

NEW MILLTRONICS VM200-5X

OverviewThe most compact machining center in Milltronics’ 5-axis line, the VM200-5X has X, Y, Z travels of 21 x 16 x 19 inches. Its rotary table offers +30°/-110° of A-axis rotation and 360° in the C-axis. This vertical, linear way machining center features a 10,000-RPM, BIG – PLUS® ISO No. 40 spindle and a 24-tool ATC. Machinists will love its INSPIRE+ control, which provides improved surface finish and cycle times, an advanced proprietary motion engine, and a 19-inch color LCD touch screen.

INSPIRE+ Control
19-Inch Color LCD Touch Screen Display
24-Pocket Double-Arm ATC
10,000 RPM Spindle
BIG-PLUS® Dual-Contact Spindle
10 / 7.5 HP Spindle Motor
Spindle Load Meter
Spindle Air Purge
Automatic Positive Displacement Lubrication System
Full Enclosure with Side Doors
Flood Coolant
945 IPM Rapid Traverse Rate
Rotational Speed: 25 RPM
Dual Work Lights
Rigid Tapping
Spare "M" Function
Solid Model Graphic Display
120 GB Solid State Hard Drive
DXF File Import
Rest Roughing Machining Cycle
ChipBoss™ Trochoidal Milling Cycle
Milltronics Shop View (MSV) – Internet-Based Machine Monitoring
Digital Setup Assistant (DSA)
DGI Desktop PC Software for Programming and Training
BT Style Tooling
Programmable Air Blast
Programmable Spray Mist System
Complete 300 PSI Coolant Thru Spindle System
CTS Ready Kit
Spindle Chiller
Electrical Cabinet Air Conditioning
Lift-Up Chip Conveyor Upgrade (Replaces Auger)
Conveyor Paddle Kit Assists with Light / Floating Chips
Factory Machine Installation and On-Site Training (USA Only)
Travels: 21 x 16 x 19 in
C-Axis / A-Axis: 360° / +30° / -110°
Table Working Surface: 7.8 in Diameter
Max. Weight on Table: 330 lbs
Table T-Slots: 0.39 in at 60° Radial Locations
Spindle Taper: BIG-PLUS® ISO No. 40
Spindle Speed: 10,000 RPM
Spindle Power: 10 / 7.5 HP
Spindle Nose to Table: 0.8 / 19.8 in
Tool Capacity / Type: 24 / Double Arm
Tool Shank: CT40
Max. Tool Diameter: 3.5 in
Max. Tool Length: 9.8 in
Max. Tool Weight: 15 lbs
Retention Knob: MAS 60
X / Y / Z Rapid Traverse Rate: 945 IPM
Max. Cutting Feed Rate: 500 IPM
C-Axis / A-Axis Rotational Speed: 25 RPM
Positioning Accuracy: ±0.0004 in
Repeatability: 0.0002 in
Machine Weight: 7,738 lbs
Machine Height: 101 in
Footprint: 76 x 101 in Nominal Operating (W x D)
Power Required: 18 kVA / 25 A
Voltage Required: 480 Volts / 3 Phase

Table Size: 7.8 in.
Magazine: 24
Spindle RPM: 10,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 10
Rapids(X): 945
Rapids(Y): 945
Rapids(Z): 945
Travel(X): 21
Travel(Y): 16
Travel(Z): 19
No of Tools: 24
