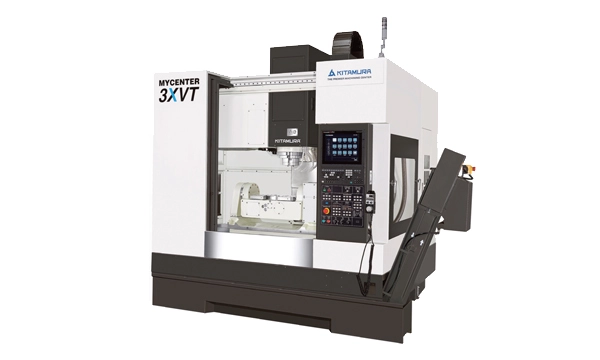

NEW KITAMURA MYCENTER 3XVT

OverviewWe've made complex parts machining more affordable than ever. This 5-axis trunnion machining center is designed & built using Kitamura’s proven trunnion technology. It delivers the accuracy, performance and reliability to meet today’s growing demand for complex components processing. The generous work envelope houses a rigid factory installed tilting trunnion table and powerful 41HP spindle that stand up to rigorous cuts in today’s tough materials.

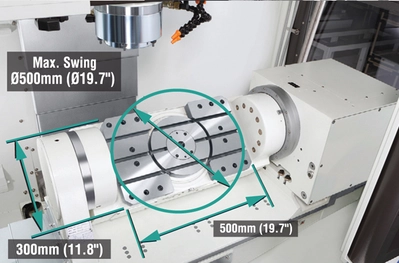

Built-In 4th/5th Axis Trunnion Table
Powerful, High Speed, 41HP 15,000 min-1 Dua
Contact Spindle
Class-Leading High Capacity 40 Too
ATC, #40
Thermally Stable Rigid Meehanite Cast Construction
Feature-Rich and Powerfu
Controller
Large 15" Touch Screen Color LCD
1680 Block Look-Ahead
2,800 Block Per Second Processing Speed
High-Speed, High-Accuracy Control
Super Smooth Surface (SSS) Control
Work Coordinate Offsets - 54 Sets
5120 Meters Memory
USB Memory Interface and Ethernet I/F for
Faster and Smoother Program Transfer
Macro Variable, 700 Sets
Tool Offset, 400Pcs, 6 Digits
3-Dimensional Tool Radius Compensation
Helica
Interpolation
Circular Interpolation
Optiona
Block Skip
Inverse Time Feed
Alarm Guidance

Table Size: 8.7 in.
Magazine: 40
Spindle RPM: 15,000
Spindle Taper: 40 NST
Spindle HP: 41
Rapids(X): 1890
Rapids(Y): 1890
Rapids(Z): 1890
Travel(X): 30.7
Travel(Y): 20.1
Travel(Z): 17.3
