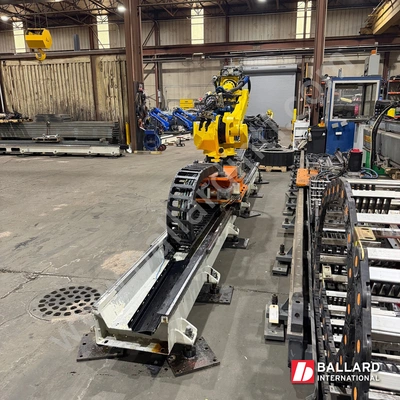

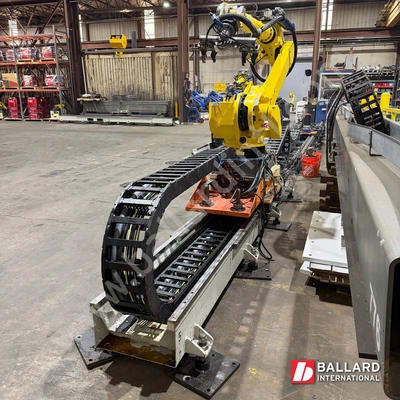

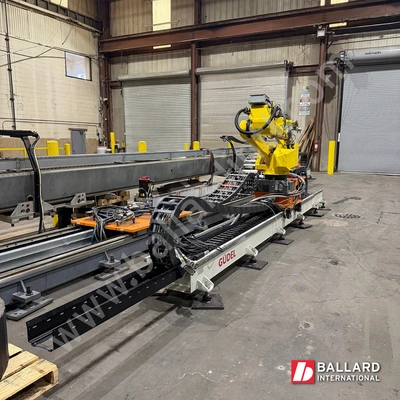

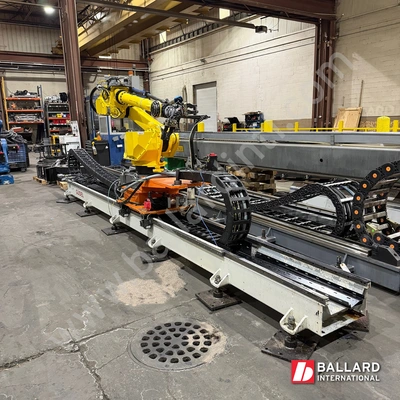

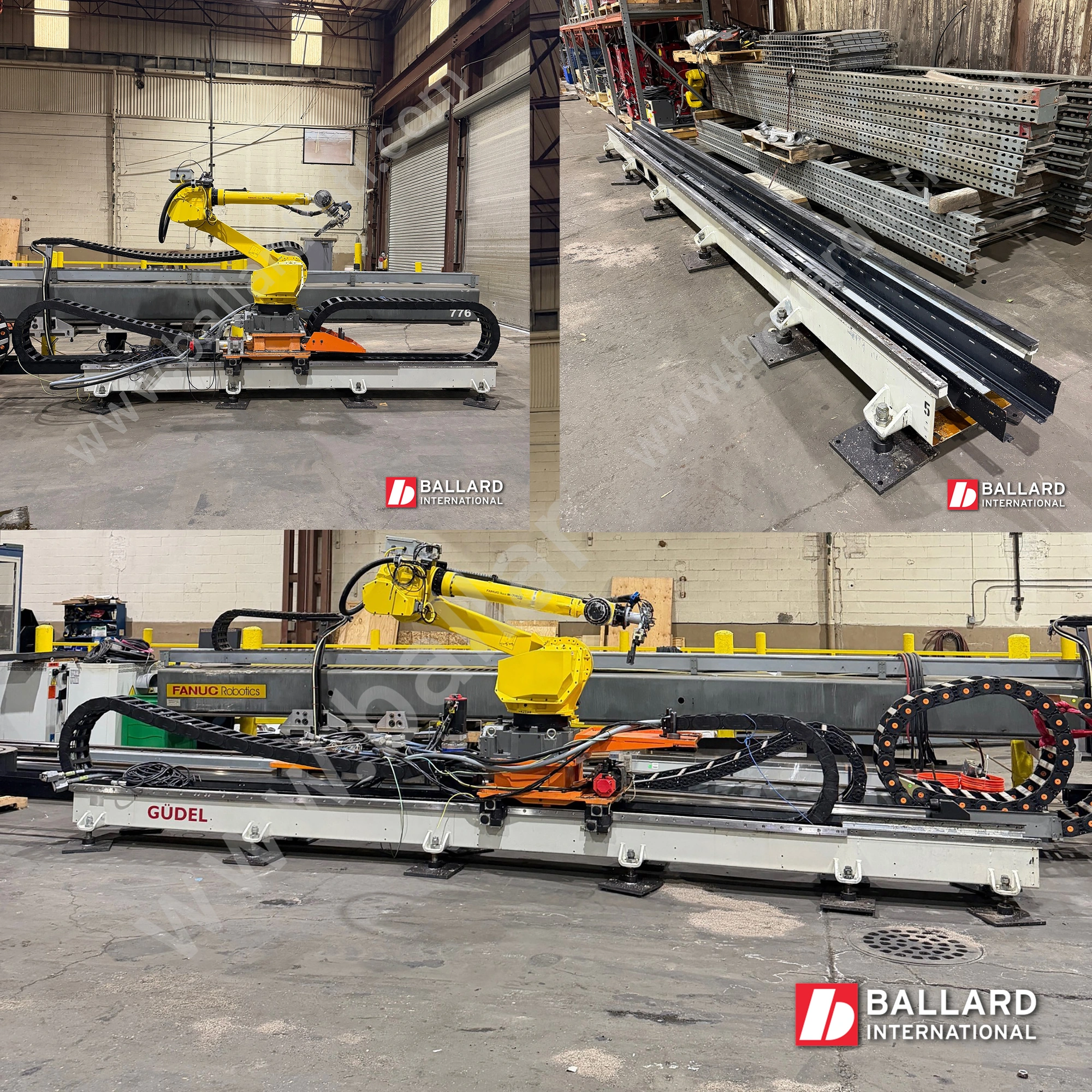

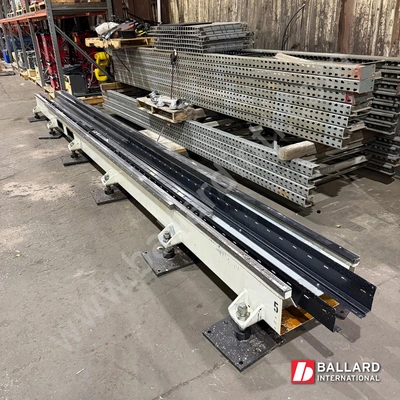

GUDEL TMF-2HD 7th Axis Robot Linear Rail – 16 Meter

Includes:

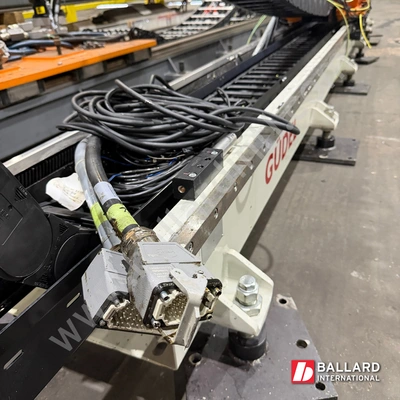

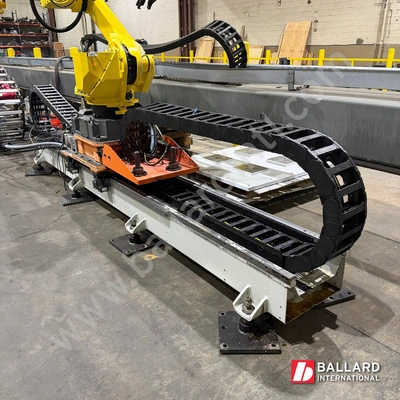

Cable Chains/Tracks
Extension Cables
7th Axis Cables
Anchor/Leveling Floor Pads

Length: 16 Meter
Max Payload (Articulated Robot): 9000 [N]
Max Payload (Static Load): 25000 [N]
Velocity (Articulated Robot): 150 [m min-1]
Velocity (Static Load): 90 [m min-1]
Acceleration (Articulated Robot): 4 [ms-2]
Acceleration (Static Load): 1.5 [ms-2]
Riser Height: 200mm (Bolt Hole Pattern Compatible w/ FANUC M-710iC Robots, Excluding 50T & 70T Variations)
RB52-S2937 Roller Support

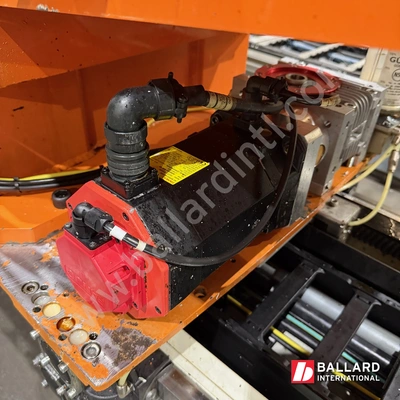

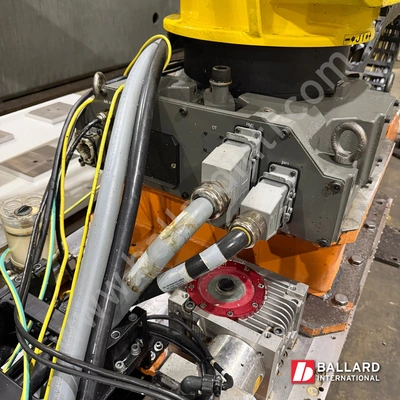

FANUC Motor: aiS 12/4000 (A06B-0238-B705)
Gear Ratio: 6.00 : 1
