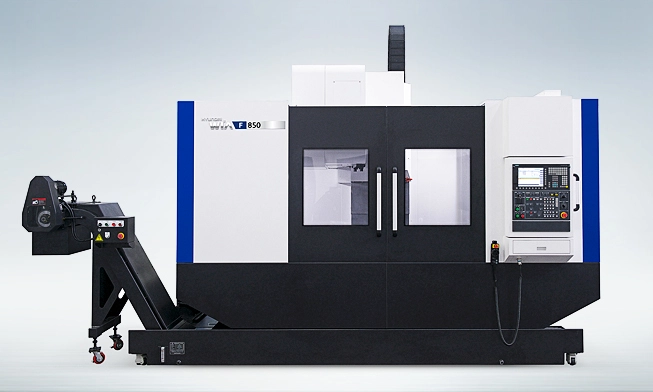

NEW HYUNDAI WIA F850

OverviewThe F850 is designed by Hyundai WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. F850 offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production.

Hyundai Wia Fanuc i Control

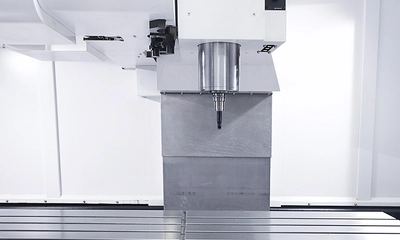

Max. 12,000 RPM Direct driven Spindle
Powerful 11 kW (14.8 HP) (30min) spindle motor
Spindle Oil chiller system
BCV 40 taper
Fast 36 m/min (1,417 IPM) X,Y and Z axis rapid traverse
Roller Guide Way

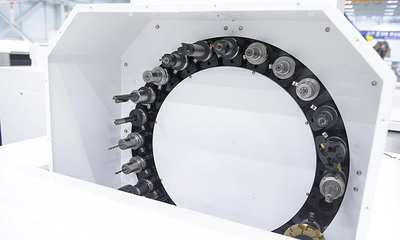

ATC 30 Tools
"Y" shape ribbed column structure
Bed Flushing Coolant System
Metal plate coupling on all axes
Pendant operating panel
Auto Power Off
290 PSI through the spindle coolant
Remote Manual Pulse Generator
Spindle override 50% to 150% (10% Unit)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Slanted telescopic way covers
Chip Conveyor (33.5" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light
Full enclosure splash guard

Table Size: 70.9 x 33.5 in.
Spindle RPM: 12,000
Spindle Taper: BCV 40
Spindle HP: 14.8
Spindle Torque: 51.3 lbs. ft
Rapids(X): 1,417
Rapids(Y): 1,417
Rapids(Z): 1,417
Travel(X): 62.99
Travel(Y): 33.46
Travel(Z): 22.83
No of Tools: 30
