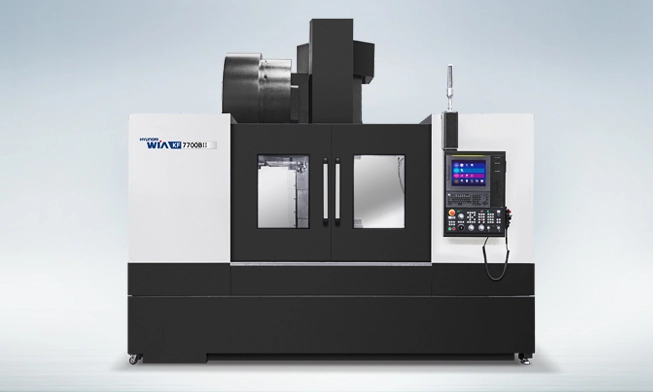

NEW HYUNDAI WIA KF7700B/50 II

OverviewThe KF7700B/50 II is designed by Hyundai WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF7700B/50 II offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with medical production.

Hyundai Wia FANUC i control
20.1 HP spindle motor (24.8 HP optional)
8,000 RPM direct-driven spindle (6,000 RPM two-step geared spindle optional)
Table size: 65 in x 30 in
Table load capacity: 3,307 lb
Spindle oil chiller system optional

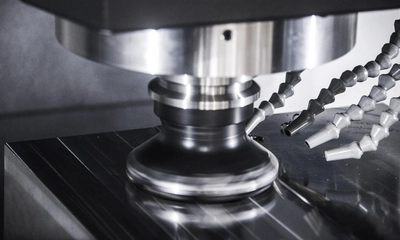

Big Plus dual-contact spindle taper (BCV No. 50)
Rapid traverse rates: X and Y axes 1,181 IPM, Z-axis 945 IPM
All-axis large box guideways
Automatic tool changer with 24 tools (30 tools optional)
Y-shaped ribbed column structure
Metal plate coupling on all axes
290 PSI through-spindle coolant
Remote manual pulse generator
Spindle speed override range: 0 to 150 percent in 10 percent increments
Massive Meehanite cast iron machine base
Double pre-tensioned ball screws
Rigid tapping capability
Program and data protection key switch
Slanted telescopic way covers
Chip conveyor with 38.6 in discharge height (side-left discharge)
Flood coolant system with large separate coolant tank
Three-color tower signal light
Full enclosure splash guard

Table Size: 65 x 29.9 in.
Magazine: 24
Spindle RPM: 8,000
Spindle Taper: BCV 50
Spindle HP: 20
Spindle Torque: 210
Rapids(X): 1181
Rapids(Y): 1181
Rapids(Z): 945
Travel(X): 59.1
Travel(Y): 29.9
Travel(Z): 25
