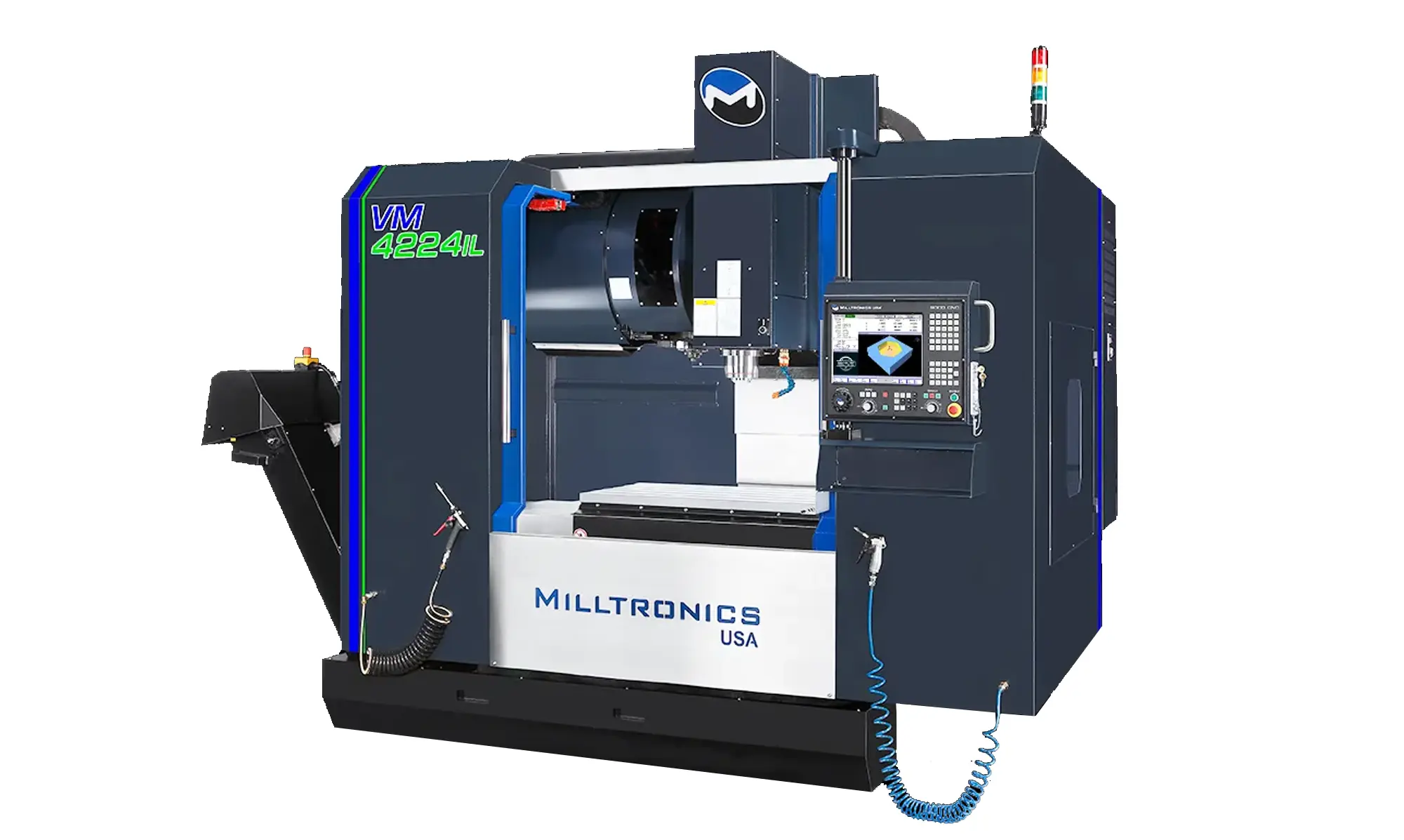

NEW MILLTRONICS VM4224IL

OverviewThe VM4224IL is a linear roller way vertical machining center and features travels of 42" x 24" x 24" and a 50" x 24" table, as well as a 32/10-HP, dual-wound, 12,000-RPM, BIG-PLUS spindle.

Milltronics 9000-INSPIRE control
15" color LCD touch screen display
Linear roller guideway construction
30 pocket double arm ATC
Spindle load meter
Spindle air purge
Automatic positive displacement lubrication system
Chip conveyor chip removal system
Chip wash down system
Full enclosure with side doors
Flood coolant with an oversized tank and 8-nozzle spindle coolant ring
1200 IPM rapid traverse rate
Dual enclosure work lights
Rigid tapping
Spare "M" function
Solid model graphic display
120 GB solid state hard drive
DXF file import
Rest roughing machining cycle
Coolant through spindle system
Work offset probing
4th axis options
5th axis options
Auxiliary industrial grade keyboard
Electronic spindle chiller
BT style tooling
Thermal head mapping
ChipBoss TM Trochoidial Milling Software
Milltronics Shop View
Digital Setup Assistant
Programmable spray-mist and air-blast
Weight: 14775 lbs
Dimensions: 133.8 x 179.8 x 120 in
Travels: 42 x 24 x 24 in
Table Working Surface: 50 x 24 in
Max. Weight on Table: 3660 lbs
Table T-Slots: .71 in
Spindle Taper: BIG-PLUS ISO No. 40
Spindle Speed: 12000 RPM
Spindle Power: 32/10 HP
Spindle Torque: 89 ft-lbs
Spindle Nose to Table: 5-29 in
Tool Shank: CT40
Retention Knob: MAS 60
Tool Capacity / Type: 30 / Double Arm
Max. Tool Diameter: 3.15 in
Max. Tool Length: 11.8 in
Max. Tool Weight: 15.4 lbs
Rapid Traverse Rate: 1200/1000 IPM
Machine Weight: 14775 lbs
Machine Height: 121 in
Footprint: 110.2 x 133.8 in (138.1 in with conveyor) Nominal Operating (W x D)
Power Requirement: 26kVA / 31A
Voltage Requirement: 480 Volts / 3 Phase

Table Size: 50 x 24 in in.
Magazine: 30
Spindle RPM: 12,000
Spindle Taper: BIG-PLUS 40
Spindle HP: 32
Spindle Torque: 89
Rapids(X): 1200/1000
Rapids(Y): 1200/1000
Rapids(Z): 1200/1000
Travel(X): 42
Travel(Y): 24
Travel(Z): 24
No of Tools: 30
