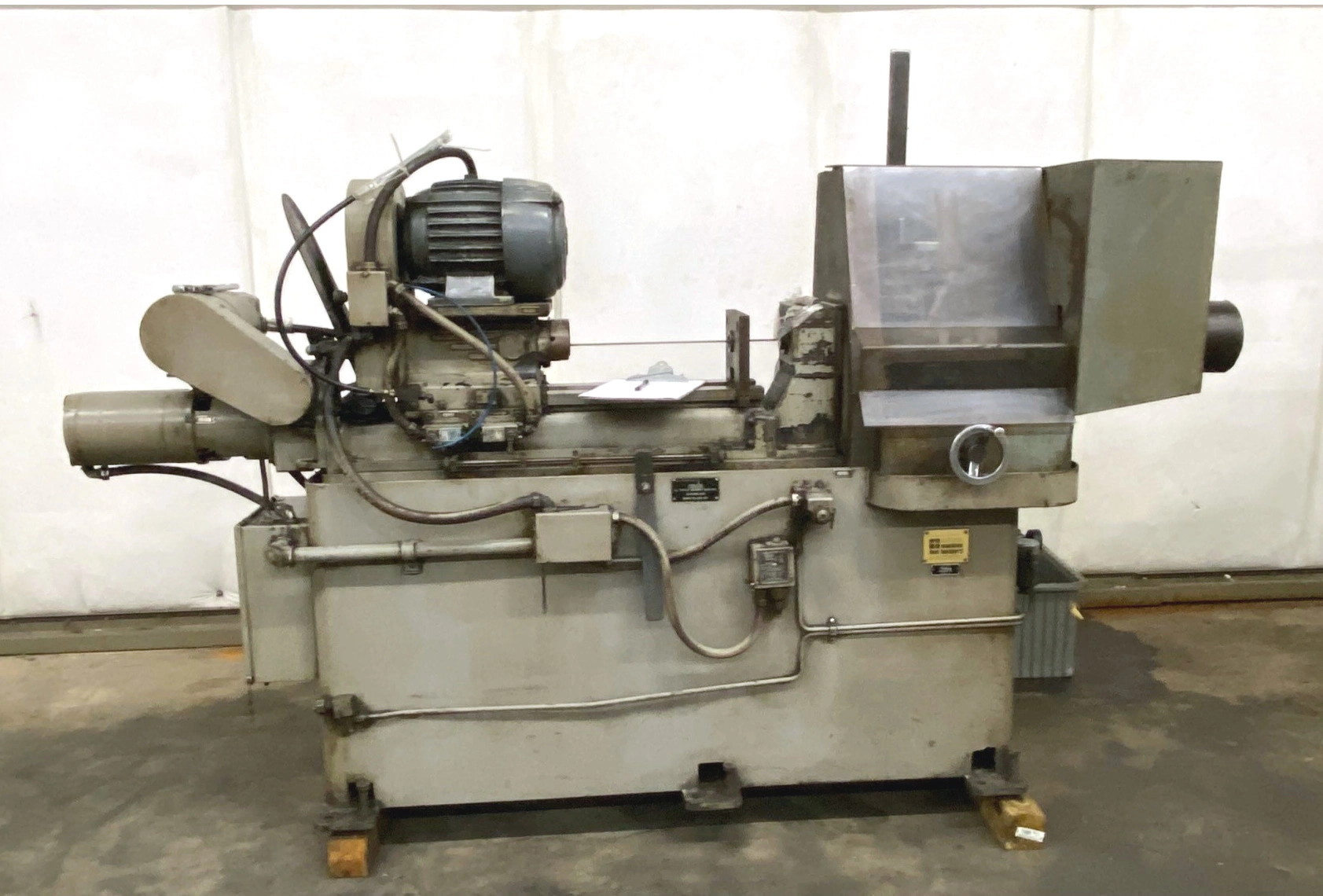

UD100577: Ward-Riddle D-18

Specifications:

Spindle stroke: 18"
Drilling capacity: 1/4" - 1"
Spindle speeds: Variable
Feed rate by meter: 0-12 IPM
Coolant tank capacity: 200 Gallons
Spindle motor: 6 HP 220V 3/60
Approximate dimensions (LXWXH): 90" x 80" x 80"
Approximate weight: 8,000 Lbs.

Equipped with:

Table w/ knee with approximately 5" vertical and cross travel by handwheel
Bushing guide & chip box
High pressure coolant system with filter paper belt and one cannister filter
Vari-dyne w/ Magnetek GPD403 inverter adjustable frequency spindle drive
Operator's control panel: Cycle start/stop, Spindle, Spindle load, Feed IPM, Coolant on/off,
bushing, conveyor.
Approximately 40 gun-drills in various sizes up to 1"
