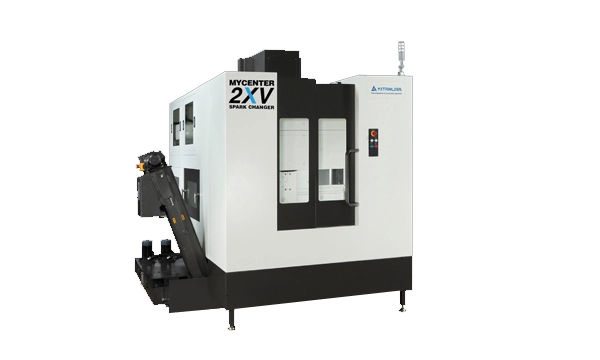

NEW KITAMURA MYCENTER-2XV

OverviewThe Mycenter-2XV “Sparkchanger” VMC increases spindle up-time with a high-speed 2-station automatic pallet changer. Designed to allow for load and unload of workpieces when the machine is in cycle, Kitamura “Sparkchangers” offer factory designed & built APC units. Full integration of the pallet changer results in the ultra-compact,space-saving footprint. The 40-Tool magazine carries plenty of tools for the completion of complex, multi-fixtured work pieces in one set-up. A powerful, high-speed 41HP, 15,000rpm dual contact spindle runs low to high rpm for a variety of operations and materials.

Powerful High-Speed 41HP 15,000rpm
#40 Dual Contact Spindle

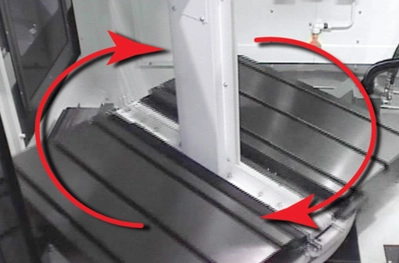

Standard 180° 2-Station Factory Installed
Pallet Changer (“Sparkchanger”)
Standard High-Capacity 40 Tool ATC
Thermally Stable Rigid Meehanite Cast
Internal Chip Augers and Standard Hinge Belt Style Chip Conveyor
Feature-Rich and Powerful Controller
Large 15" Touch Screen Color LCD
1680 Block Look-Ahead
2,800 Block Per Second Processing Speed
High-Speed, High-Accuracy Control
Super Smooth Surface (SSS) Control
Work Coordinate Offsets - 54 Sets
5120 Meters Memory
USB Memory Interface and Ethernet I/F for Faster and Smoother Program Transfer
Macro Variable, 700 Sets
Tool Offset, 400Pcs, 6 Digits
3-Dimensional Tool Radius Compensation
Helica
Interpolation
Circular Interpolation
Optiona
Block Skip
Inverse Time Feed
Alarm Guidance

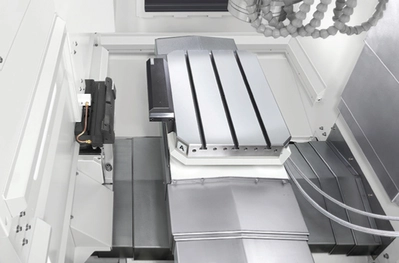

Table Size: 22 x 15.7 in.
Magazine: 40
Spindle RPM: 15,000
Spindle Taper: 40 NST
Spindle HP: 41
Rapids(X): 2047
Rapids(Y): 2047
Rapids(Z): 1890
Travel(X): 23.6
Travel(Y): 20.1
Travel(Z): 20.1
