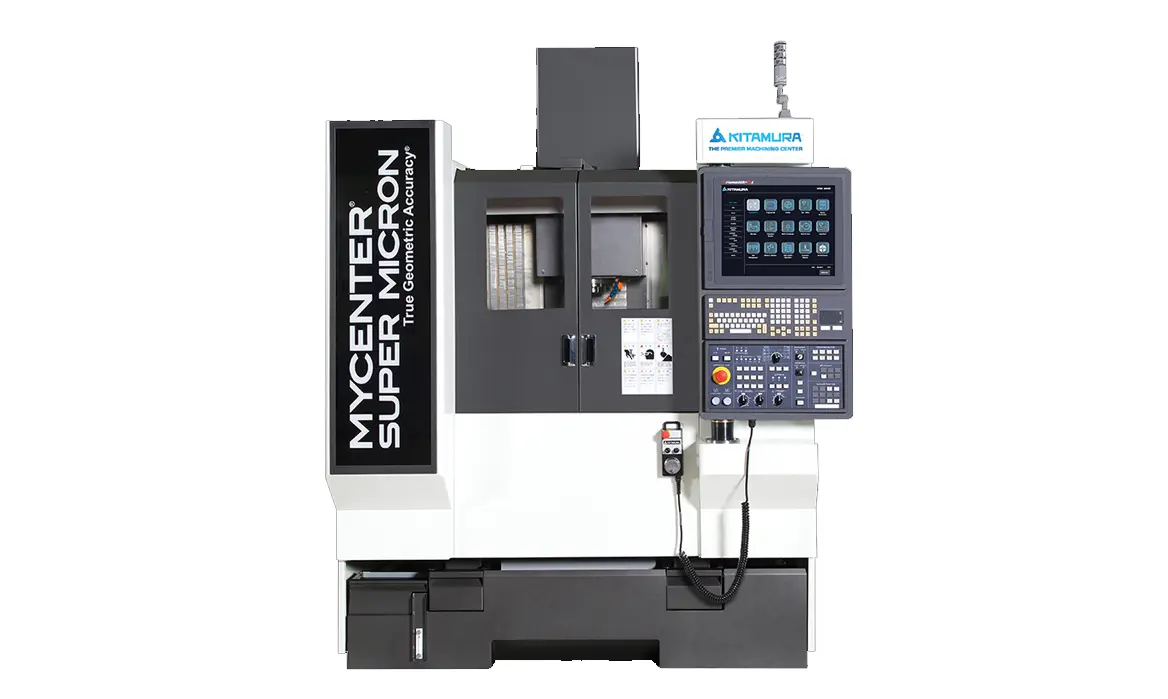

NEW KITAMURA MYCENTER-SUPER MICRON

OverviewThe Mycenter-Super Micron is an ultra-high precision vertical machining center perfectly suited for high precision, heavy cutting applications requiring smoother, more accurate surface finishes.
Expect Superior Finishes and Ultra High Precision
As the only machine in its class utilizing a mirror-finished box way design, the Mycenter Super Micron Vertical Machining Center has been designed with exceptional dampening characteristics and a unique column design that promotes ultra-high thermal rigidity for static accuracy (measured value) positioning +-0.0005mm (+-0.00002")/Full stroke.
Thoughtfully designed, the Mycenter Super Micron vertical machining center is the superior choice for medical/dental, mold/electrodes, hard milling, tool & die and prototype applications that require jig-bore-level accuracies.

Table Size: 15.7" x 19.7"
Travel (X, Y, Z): 17.7" x 13.8" x 11.8"
Spindle Taper: HSK-E32
Spindle Speed: 40,000 min-1
Tool Storage Capacity: 18 Pcs.- 40 Tools Optional
Rapid Feed (X,Y,Z): 591 ipm
Power Requirement: 30KVA, 200v AC, 3 Phase
HSK-E32
Spindle Orientation
Spindle Taper Air Blow
Spindle Bearing Lubrication System
Spindle Oil Cooler
18 Tool Automatic Tool Changer
Fixed Pot Method
Bi-Directional Random Tool Call-Up Function
Ultra-Sensitive, Low-Pressure Tool Presetter
Cutting Fluid Device
Coolant Pump (1.2kw/1.6hp, 39 GPM)
Fully Enclosed Splash Guard
Automatic Way Lubrication
Door Interlock
Air FRL Unit (Filter, Regulator, Lubricator)
Work Light
3-Step Cycle Finish Lamp
Anywhere-Remote (E-Mail Status Updates)
Renishaw Set & Inspect Software
Rigid Tap (Synchronous Feed Tap)
User's M-Function (Total 8 Sets, M20-M27)
Machine Installation Tool Kit
Leveling Bolts and Plates
Machine Spare Parts
CNC Spare Parts

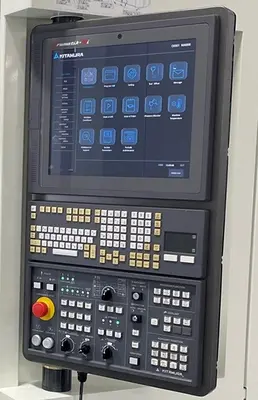

Swivel Main Operation Panel
Manual Pulse Generator, Separate
Large 19" Touch Screen Color LCD
Input/Output Interface (USB Memory I/F on Operation Panel)
Power Indicator LED
Alarm Indicator LED
Program Protect Key Switch
Data Protect Key Switch
Push Button Switch/Emergency Stop
Push Button Switch/X Plus
Push Button Switch/X Minus
Push Button Switch/Y Plus
Push Button Switch/Y Minus
Push Button Switch/Z Plus
Push Button Switch/Z Minus
Push Button Switch/4th Plus
Push Button Switch/4th Minus

Table Size: 15.7 x 19.7 in.
Magazine: 18
Spindle RPM: 40,000
Spindle Taper: HSK-E32
Spindle HP: 10
Rapids(X): 591
Rapids(Y): 591
Rapids(Z): 591
Travel(X): 17.7
Travel(Y): 13.8
Travel(Z): 11.8
