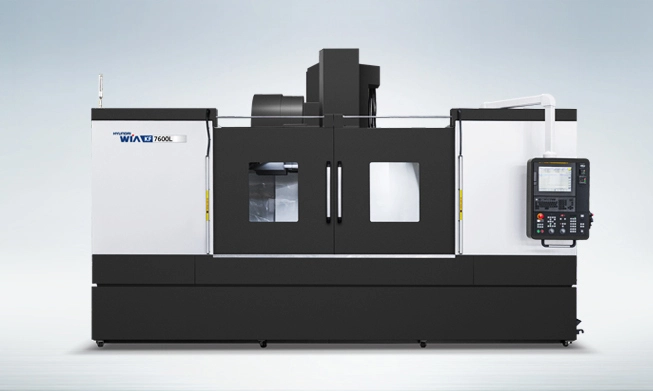

NEW HYUNDAI WIA KF7600L

OverviewThe KF7600L is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF7600L offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production

Hyundai Wia FANUC Smart Plus control
24.8 HP spindle motor, S3 15 percent duty
12,000 RPM direct-driven spindle (8,000 RPM optional)
Table size: 88.6 in x 29.9 in
Table load capacity: 3,968 lb
Spindle oil chiller system (8,000 RPM option)
BBT No. 40 spindle taper
Rapid traverse rates: X and Y axes 1,181 IPM, Z-axis 945 IPM
Large linear roller guideways with roller bearings
Automatic tool changer with 30 tools (40 tools optional)

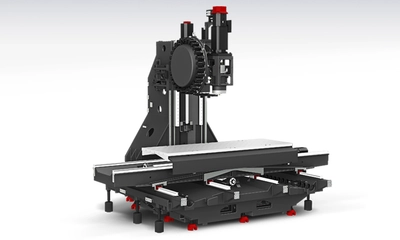

Y-shaped ribbed column structure
Metal plate coupling on all axes
290 PSI through-spindle coolant
Remote manual pulse generator
Spindle speed override range: 0 to 150 percent in 10 percent increments
Massive Meehanite cast iron machine base
Double pre-tensioned ball screws
Rigid tapping capability
Program and data protection key switch

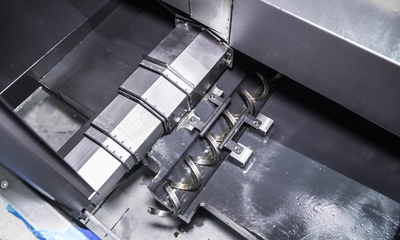

Slanted telescopic way covers
Chip conveyor with 38 in discharge height
Flood coolant system with large separate coolant tank
Three-color tower signal light
Full enclosure splash guard
15 in touch-type monitor

Table Size: 88.6 x 29.9 in.
Magazine: 30
Spindle RPM: 12,000
Spindle Taper: BVC 40
Spindle HP: 24.8
Spindle Torque: 87
Rapids(X): 1181
Rapids(Y): 1181
Rapids(Z): 945
Travel(X): 82.7
Travel(Y): 29.9
Travel(Z): 25
