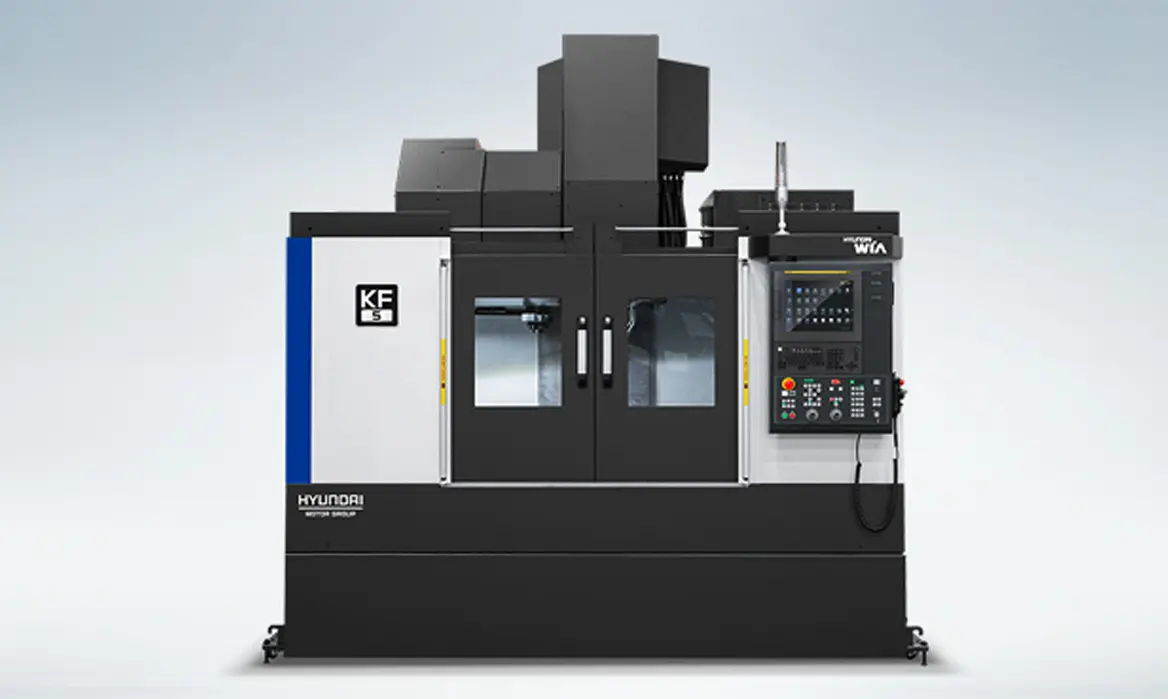

NEW HYUNDAI WIA KF5

OverviewThe KF5 is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF5 offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production

Hyundai Wia Fanuc - Smart Plus Control
Powerful 25 HP (18.5 kW) spindle motor
12,000 RPM Direct Driven Spindle
51.2" x 22.0" Table Size
2,205 lbs Load Capacity
Spindle Oil chiller system [8K Opt.]
BCV # 40 taper (Big Plus)
Fast 1,417 IPM X, Y and 1,181 IPM Z axis rapid traverse
Large Linear Roller guide with roller bearings
ATC 30 Tools [40/60T Opt.]

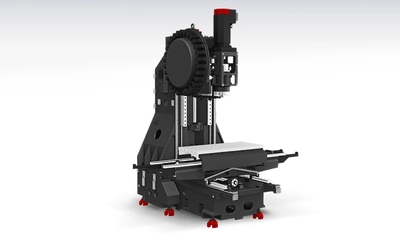

"Y" shape ribbed column structure
Embed operating panel
290 PSI through the spindle coolant
Remote Manual Pulse Generator
Spindle override 0% to 200% (10% Unit)
Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Slanted telescopic way covers
Chip Conveyor (38" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light
Full enclosure splash guard
15" Touch-type monitor

Table Size: 51.2 x 22.0 in.
Spindle RPM: 8,000
Spindle Taper: BBT40
Spindle HP: 25
Spindle Torque: 191
Rapids(X): 1417
Rapids(Y): 1417
Rapids(Z): 1181
Travel(X): 41.3
Travel(Y): 22.0
Travel(Z): 20.1
No of Tools: 30
