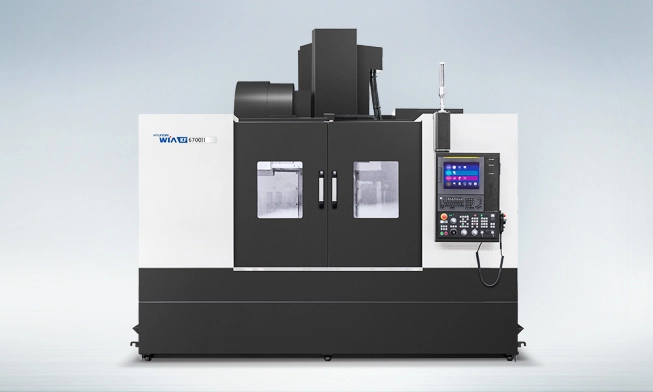

NEW HYUNDAI WIA KF6700 II

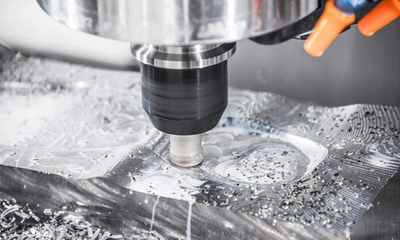

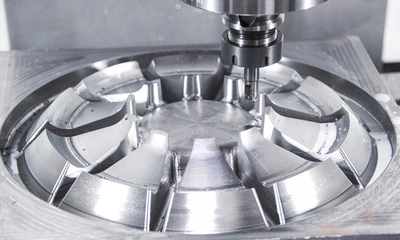

OverviewThe KF6700 is designed by Hyundai WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity.KF6700 offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production.

Hyundai Wia Fanuc i Control
Powerful 24.8 HP (18.5 kW) spindle motor (S3 15%)
Max. 12,000 RPM Direct Driven Spindle [20,000 rpm built in spindle_Opt.]
59" x 26.4" (1,500 x 670mm) Table Size
2,866 lbs (1,300 kg) Load Capacity
Spindle Oil chiller system
BCV # 40 taper [HSK tool holder_Opt.]
Fast 1,417 IPM (36m/min) X, Y and 1,181 IPM (30m/min) Z axis rapid traverse
Large Linear Roller guide with roller bearings

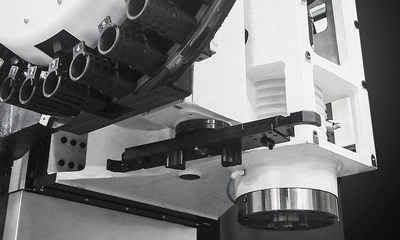

ATC 30 Tools [40_Opt.]
"Y" shape ribbed column structure
Metal plate coupling on all axes
290 PSI through the spindle coolant
Remote Manual Pulse Generator
Spindle override 0% to 150% (10% Unit)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Slanted telescopic way covers
Chip Conveyor (39" discharge height, Side_Left)
Flood coolant with large separate coolant tank
3 color tower signal light
Full enclosure splash guard

Table Size: 59 x 26.4 in.
Spindle RPM: 12,000
Spindle Taper: BCV 40
Spindle HP: 24.8
Spindle Torque: 87
Rapids(X): 1417
Rapids(Y): 1417
Rapids(Z): 1181
Travel(X): 51.2
Travel(Y): 26.4
Travel(Z): 25
No of Tools: 30
