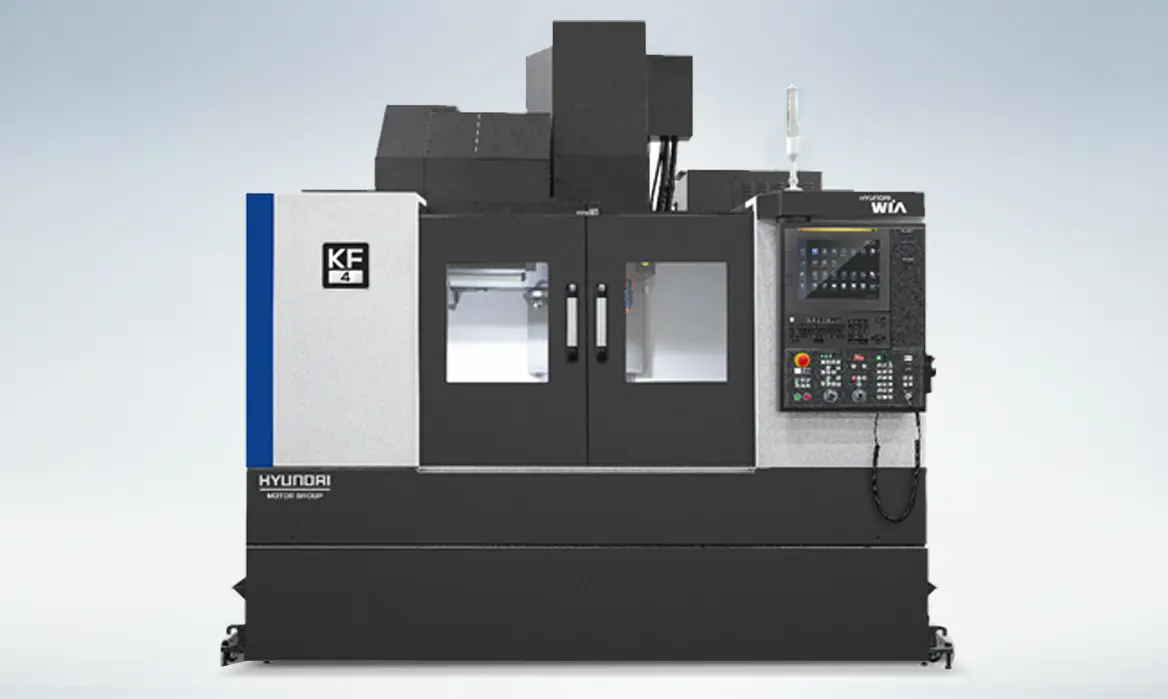

NEW HYUNDAI WIA KF4

OverviewThe KF4 is designed by HYUNDAI WIA with years of experience and the latest technology, maximizes productivity and provides stiffness and rigidity. KF4 offers Hyundai value at an economical and affordable price, and provides high productivity and profitability and matches typical of complex, contoured geometry associated with die/mold and medical production

Hyundai Wia FANUC Smart Plus control
25 HP (18.5 kW) spindle motor
12,000 RPM direct-driven spindle
Table size: 1,000 x 450 mm (39.4 x 17.7 in)
Spindle oil chiller system
Big Plus dual-contact spindle taper (BCV No. 40)
Rapid traverse rates: X and Y axes 1,417 IPM, Z-axis 1,181 IPM
Large linear roller guideways with roller bearings
Automatic tool changer with 30 tools (40 or 60 tools optional)
Y-shaped ribbed column structure
290 PSI through-spindle coolant
Remote manual pulse generator
Spindle speed override range: 0 to 200 percent in 10 percent increments
Pre-tensioned ball screws
Rigid tapping capability
Program and data protection key switch
Slanted telescopic way covers
Chip conveyor with 38 in discharge height
Flood coolant system with large separate coolant tank
Three-color tower signal light
Full enclosure splash guard
15 in touch-type monitor

Table Size: 39.4 x 17.7 in.
Magazine: 30
Spindle RPM: 12,000
Spindle Taper: CAT 40
Spindle HP: 25
Rapids(X): 1417
Rapids(Y): 1417
Rapids(Z): 1417
Travel(X): 31.5
Travel(Y): 17.7
Travel(Z): 20.1
