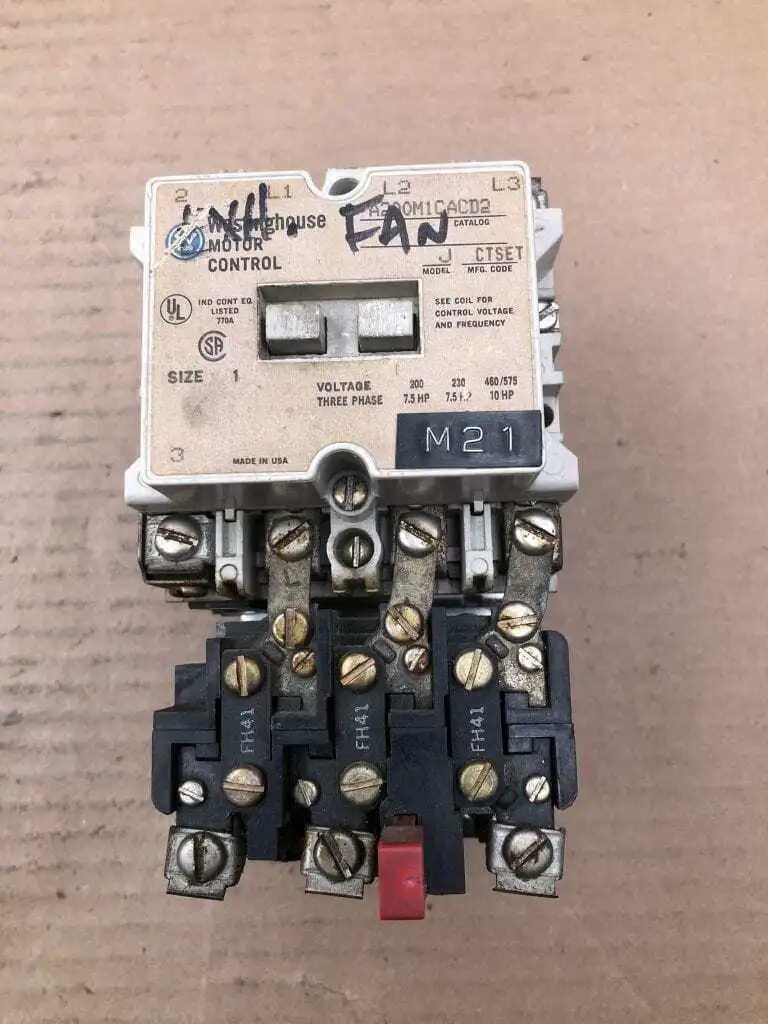

USED WESTINGHOUSE A200M1CACD2

The Westinghouse A200M1CACD2 Size 1 Motor Starter (200V / 230V / 460/575V, 7.5/10HP) is a rugged, industrial-grade magnetic motor starter designed to provide reliable starting, stopping, and protection for three-phase electric motors. As part of the trusted A200 series, this non-reversing starter combines a heavy-duty contactor with provisions for thermal overload protection to help safeguard motors from overcurrent and overheating. Rated for approximately 27 amps, it is suitable for motors up to 7.5 horsepower at 230V and 10 horsepower at 460/575V, making it ideal for medium-duty industrial applications.


Key Features:
Size 1 magnetic motor starter
Rated up to 7.5HP @ 230V / 10HP @ 460/575V
Approx. 27A current capacity
Non-reversing full-voltage motor control
Designed for use with thermal overload protection
Heavy-duty industrial construction
Reliable performance in control systems
Specifications:
Brand: Westinghouse
Model: A200M1CACD2
Size: NEMA Size 1
Current Rating: ~27 Amps
Voltage: 200V / 230V / 460/575V
Horsepower: 7.5HP @ 230V / 10HP @ 460/575V
Type: Magnetic Motor Starter
Phase: 3-Phase
Applications:
Pumps and fluid handling systems
Conveyors and material handling
HVAC systems and industrial fans
Air compressors and machinery
Manufacturing and processing equipment
Motor control centers

Weight: 9 lbs
Dimensions: 11 × 8 × 9 in
