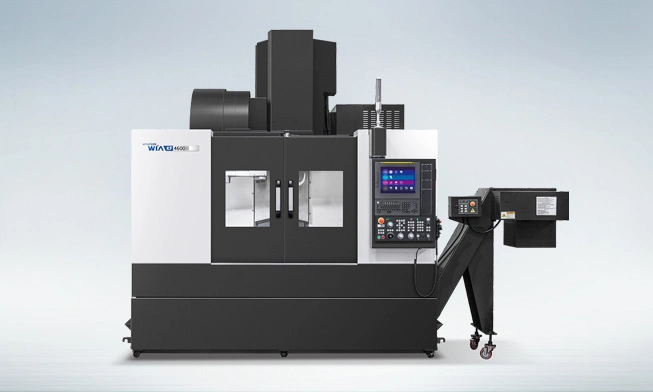

NEW HYUNDAI WIA KF4600 II

Hyundai Wia Fanuc i Control
Powerful 24.8 HP (18.5 kW) spindle motor (S3 15%)
Max. 12,000 RPM Direct Driven Spindle [15,000 rpm built in spindle_Opt.]
41.3" x 18.1" (1,050 x 460mm) Table Size
1,323 lbs (600 kg) Load Capacity
Spindle Oil chiller system
BCV # 40 taper
Fast 1,417 IPM (36m/min) X, Y and Z axis rapid traverse
Large Linear Roller guide with roller bearings

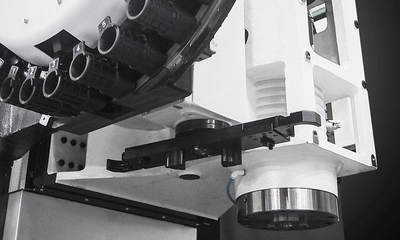

ATC 30 Tools [40_Opt.]
"Y" shape ribbed column structure
Metal plate coupling on all axes
290 PSI through the spindle coolant
Remote Manual Pulse Generator
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Slanted telescopic way covers
Chip Conveyor (38" discharge height, Side_Left)
Flood coolant with large separate coolant tank
3 color tower signal light
Full enclosure splash guard

Table Size: 41.3 x 18.1 in.
Spindle RPM: 12,000
Spindle Taper: BCV 40
Spindle HP: 24.8
Spindle Torque: 87 lbf. Ft
Rapids(X): 1,417
Rapids(Y): 1,417
Rapids(Z): 1,417
Travel(X): 35.4
Travel(Y): 18.1
Travel(Z): 20.5
No of Tools: 30
