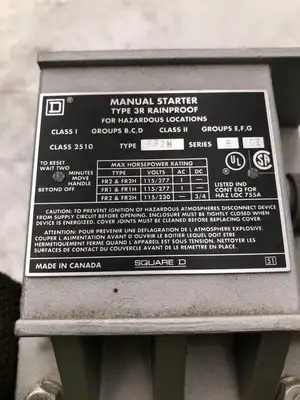

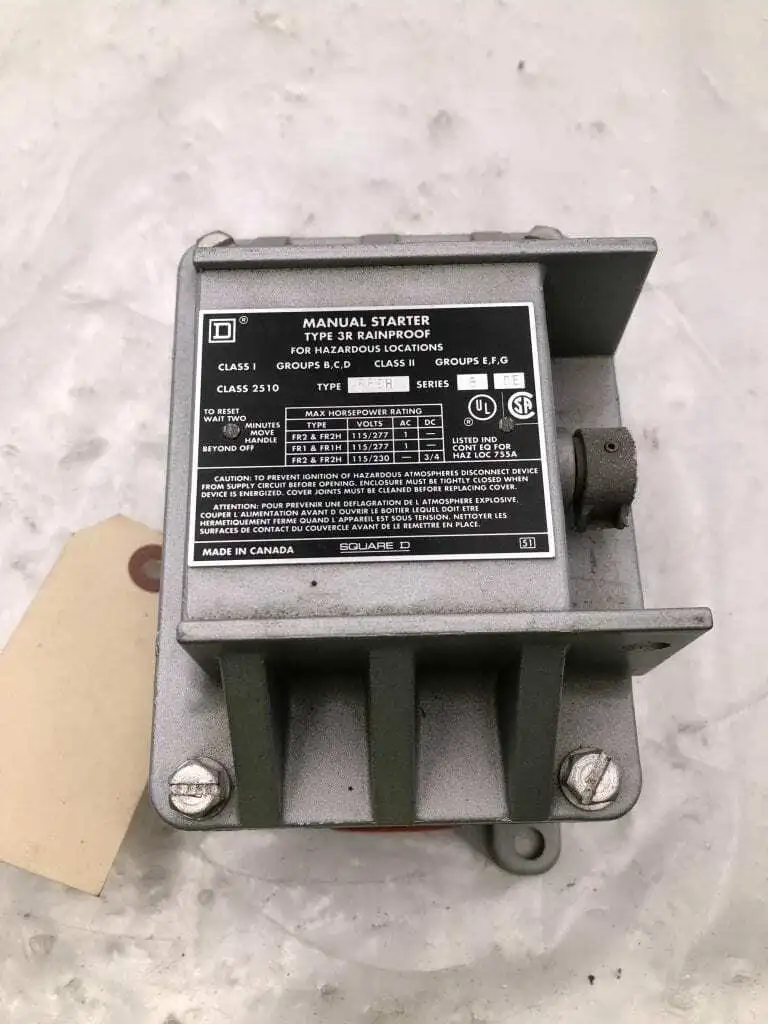

Square D Type FR2H Series B Hazardous Locations Type 3R Manual Starter 115/240V
Description
The Square D Type FR2H Series B Hazardous Locations Type 3R Manual Starter (115/240V) is a rugged, enclosed manual motor starter designed for safe operation in hazardous industrial environments where flammable gases, vapors, or combustible dust may be present. Built with a durable cast aluminum enclosure and rated NEMA 3R, it provides protection against rain, outdoor conditions, and environmental contaminants while maintaining explosion-resistant characteristics required for classified locations.
Key Features:
Hazardous location rated manual motor starter
Designed for Class I & II environments (gas, vapor, dust)
NEMA 3R enclosure for indoor/outdoor protection
Manual ON/OFF toggle operation
Thermal overload protection for motor safety
Durable cast aluminum housing
Suitable for fractional horsepower motors
Specifications:
Brand: Square D
Type: FR2H Series B
Voltage: 115/240V AC
Enclosure Rating: NEMA 3R
Hazardous Rating: Class I, II Divisions
Poles: Typically 1 or 2 Pole
Current Rating: ~16A (varies by model)
Operation: Manual, Non-Reversing
Applications:
Pumps and fluid handling systems
Fans and ventilation equipment
Conveyors and small machinery
Oil & gas and chemical facilities
Wastewater and treatment plants
Industrial hazardous environments
Specifications
| Dimensions | 8 × 8 × 7 in | 8 × 8 × 7 in |
|---|---|---|
| Weight | 7 lbs | 7 lbs |
Weight: 7 lbs
Dimensions: 8 × 8 × 7 in
