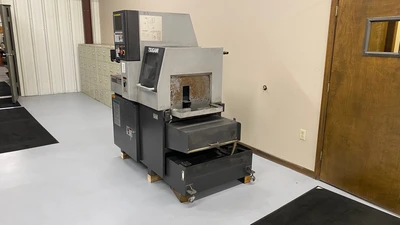

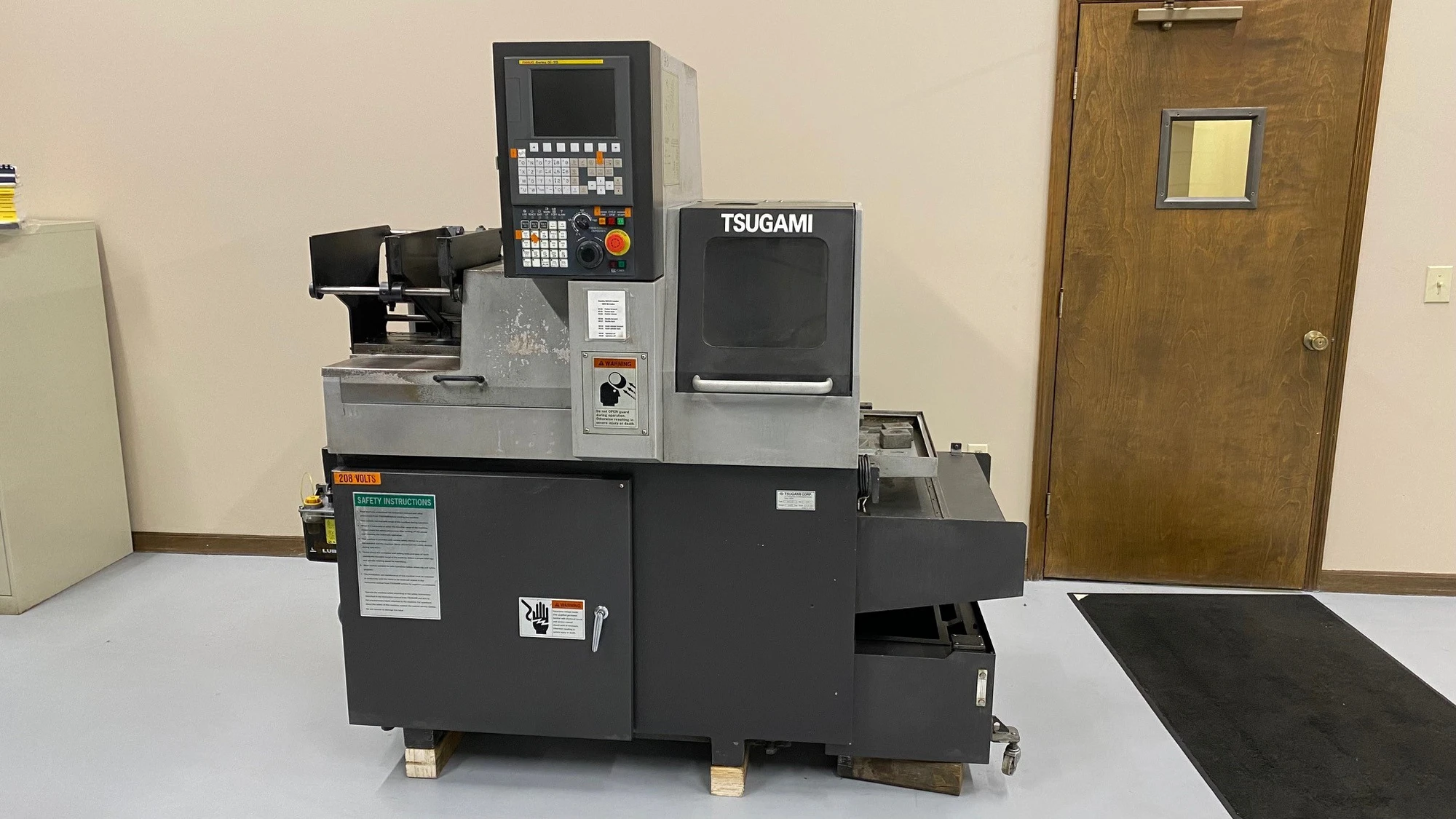

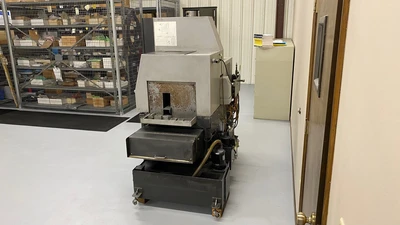

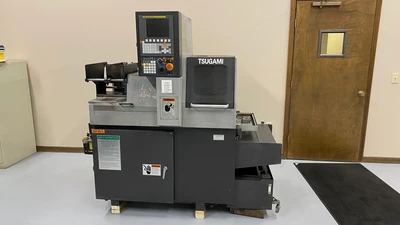

USED TSUGAMI B0123
Specs
Specifications:
Working bar stock diameter (min-max.): 3 mm - 12 mm
Maximum work length (stationary guide bushing): 210 mm
Tapping diameter: M6 x 1
Max cross drilling capability (No tooling): 6 mm
Max cross tapping: 5 mm x 0.8
Main spindle speed: 200-12,000 RPM
Number of tools, capability: 9
Tool size: 12 mm
Spindle motor: 1.5 / 2.2 kW
Controlled axis: X1, X2, Z1
General:
Electrics: 200/60/3
Power requirements: 7kW
Compresses air: 90 PSI
Weight (Approx.): 3,100 lbs.
Length x depth x height: 65" x 41" x 66"
Including:

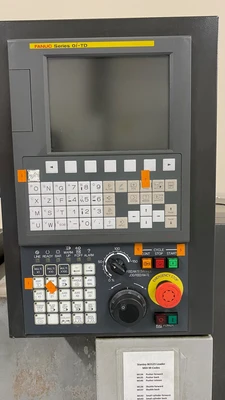

Fanuc 0i control
Collet chuck
Hopper feed system for sawed length blanks. Loader/pusher (see loader manual) for machining
points on ends of blanks. Component machine purchased for was to generate a tapered end on
blank. Blank length up to 10"
Cutting time 3,100 hours
