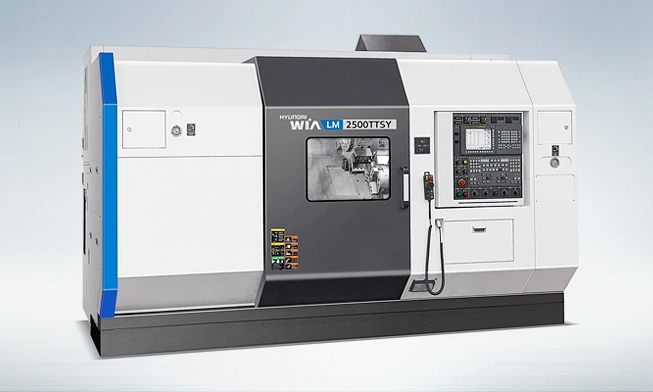

NEW HYUNDAI WIA LM2500TTSY II

OverviewThe LM2500TTSY II features a 45° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted at all axes offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.

Fanuc 31i B controller
Main & Sub spindle: Max. 4,000 rpm Built-in spindle
40.2 HP (30 kW) (S3 25%) / 534 lbf.ft (724 N.m) torque at 342 rpm
10" 3-jaw chuck
Ø3.2" (Ø81mm) bar capacity
Ø15.4" / Ø11.8" (Ø390 / Ø300 mm) Max. turning diameter
35.4" (Ø900mm) turning length
Rapid speed
X1/Y1/Z1 (Upper turret) : 945 / 472 / 945 IPM (24 / 12 / 24 m/min)
ZB (Sub spindle) : 945 IPM (24 m/min)
X2/Y2/Z2 (Lower turret) : 945 / - / 945 IPM (24 / - / 24 m/min)

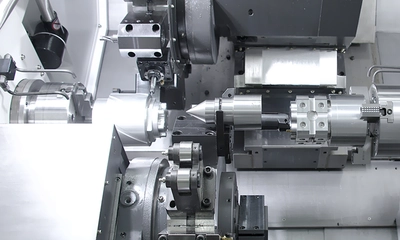

Two(2) 12 station turrets

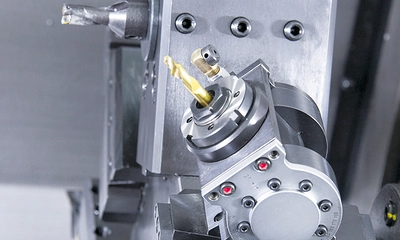

Live Tool: Max 5,000 rpm (BMT65P)
7.4 HP (5.5 kW) (30min) / 51.6 lbf.ft (70 N.m) torque at 750 rpm
[10 HP (7.5 kW) / 70.4 lbf.ft (95.5 N.m) (5min)_Opt.]
Tool size: □1" / Ø1.5" (□25 / Ø40mm) (Triple I/D Ø1")
Box guideways (All axes)
Y-axis with 4.7" (120 mm) stroke
45° slanted one-piece bed structure
Auto Tool setter
87 PSI coolant system [290 PSI_Opt.]
Chip Conveyor (47.9" discharge height)
3 color tower signal light
Sub parts unloader
Pneumatic type part ejector in sub spindle
Main parts catcher preparation
Full contouring C-axis

Max Turn Dia: 15.4 in.
Max Turn Len: 35.4 in.
Chuck Size: 10 in.
Spindle RPM: 4,000
Spindle HP: 35
Spindle Torque: 319.4
Rapids(X): 945
Rapids(Y): 472
Rapids(Z/B): 945
Rapids(Z): 945
Travel(X): 10.6
Travel(X1/X2): 7.7
Travel(Y): 4.7
Travel(Z): 36.2
Travel(Z/B): 36.2
No of Tools: 24
