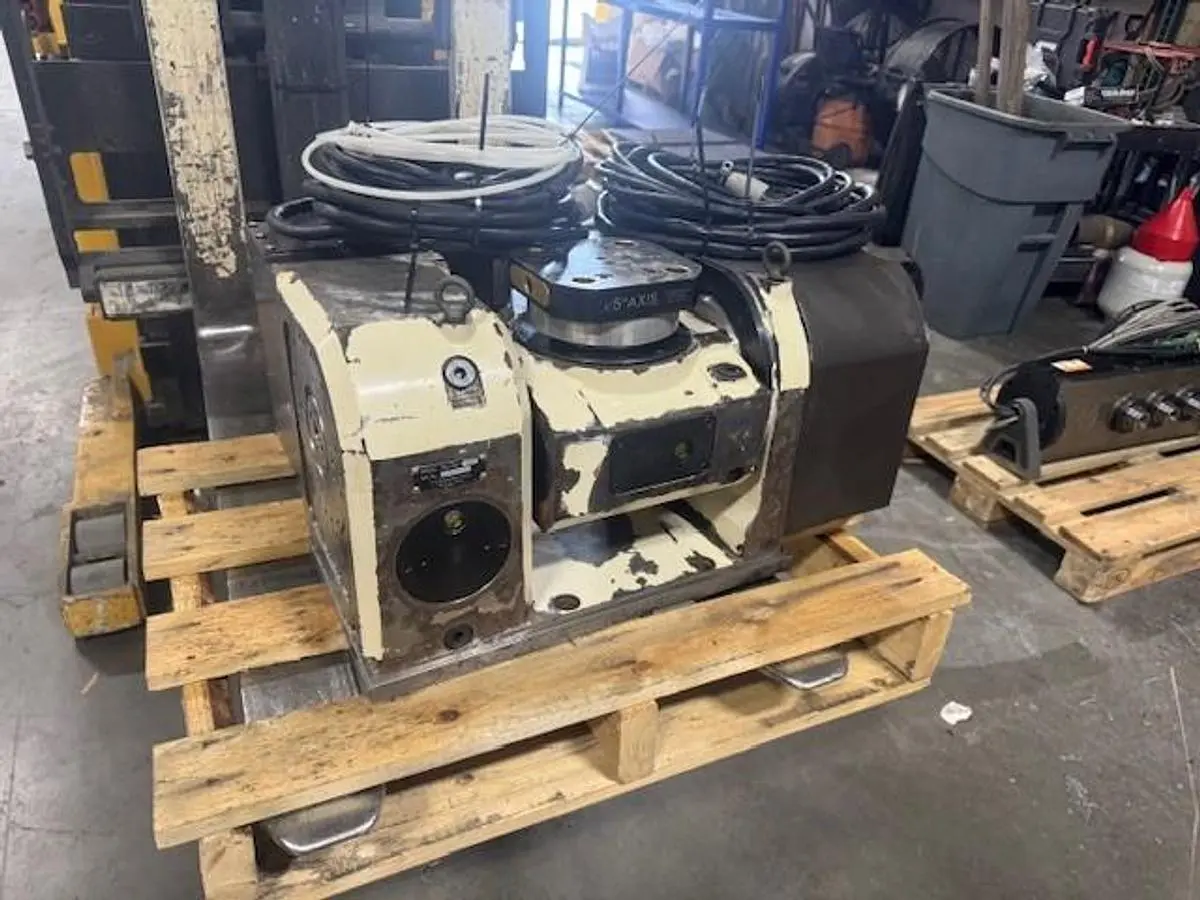

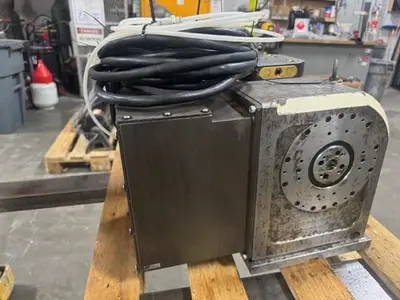

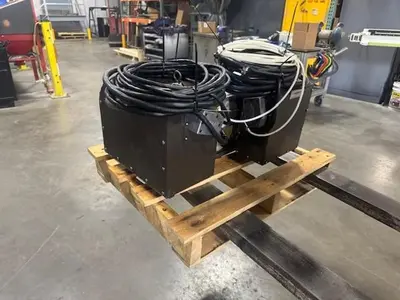

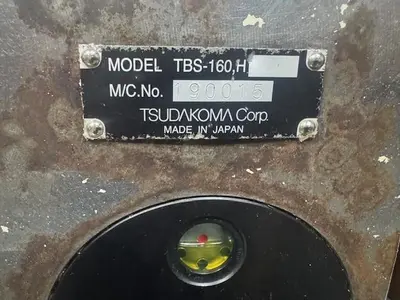

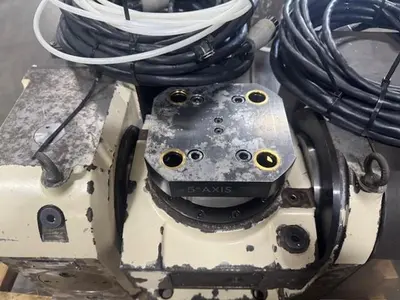

USED 2019 TSUDAKOMA TBS-160 H

Number of Axis: 5
Tilt Range: -30 - +110°
Spindle Outer Diameter (in): 3.93"
Table Height: 10.62" @ 0°
Center Height: 7.87" @ 90°
Center Bore Nose Diameter (in): 2.16"
Center Bore Thru Diameter (in): 1.57"
Table T-Slot Width: 0.47"
Motor Speed: 5,000 rpm Max
Table Speed: 83.3 rpm Max
Clamp System: Pneumatic
Holding Torque: 516 ft/lbs @ 72 psi
Index Accuracy: +10 arc/sec
Tilting Accuracy: +17.5 arc/sec
Weight (lbs): 353 lbs.
