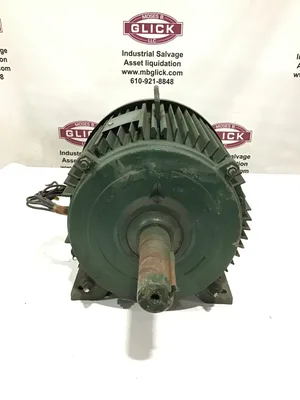

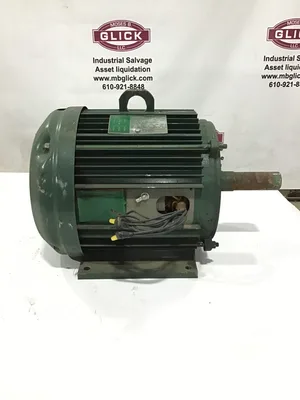

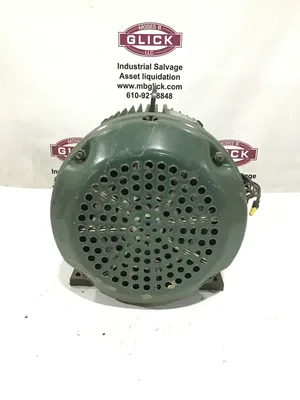

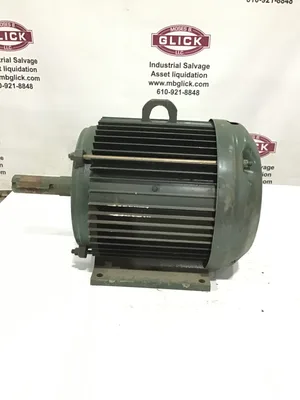

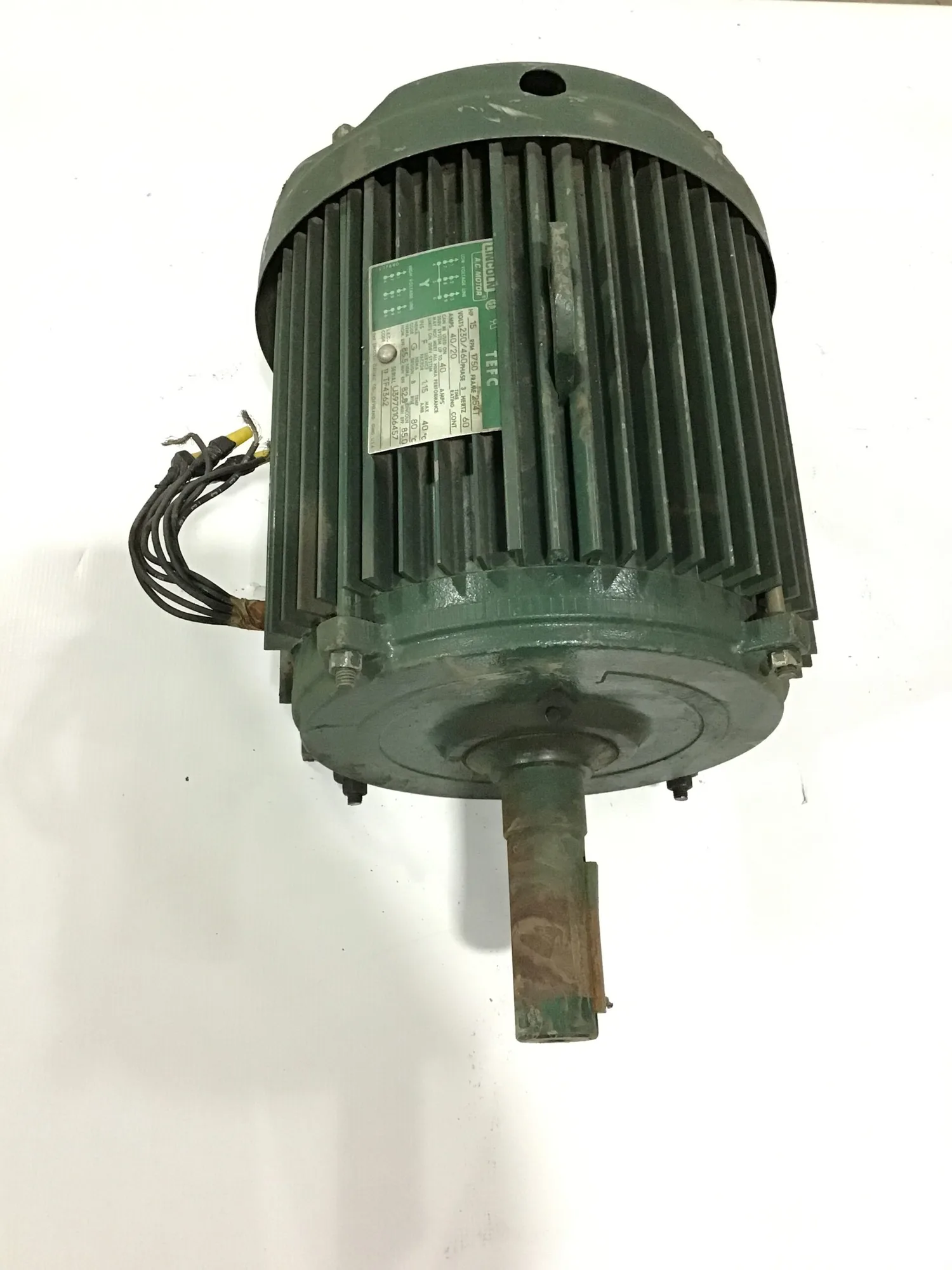

Lincoln 254T AC Electric Motor 15HP 3PH 1750RPM

Experience unparalleled performance with the Lincoln AC Electric Motor, featuring a robust 15HP power output and designed for three-phase operation at 230/460V. Operating at 1750 RPM with a current draw of 40/20 Amps at 60Hz, this motor is engineered for efficiency and reliability. Its NEMA Design B classification ensures optimal torque characteristics, while the NEMA Code G rating guarantees compatibility with a wide range of applications. With a maximum ambient temperature of 40°C and a temperature rise of 80°C, this motor is built to withstand demanding environments. The durable frame 254T construction ensures longevity, making it an ideal choice for industrial and commercial use. Upgrade your machinery with the Lincoln AC Electric Motor and enjoy enhanced productivity and performance.
⚡ 15HP horsepower rating for strong and efficient operation in demanding equipment setups
🔌 3-Phase electrical configuration for stable, efficient, and balanced performance
🔋 Dual voltage capability (230/460V) allowing flexible installation and compatibility with various power systems
📊 Rated current: 40/20 Amps for dependable electrical performance under load conditions
🌀 Operating speed: 1750 RPM suitable for pumps, compressors, conveyors, and general machinery use
🌐 60Hz frequency designed for standard industrial power systems
🛠️ Service Factor 1.15 providing extra performance capacity beyond rated load when needed
🔥 Insulation Class F for enhanced thermal resistance and longer operational lifespan
🌡️ Maximum ambient temperature: 40°C ensuring reliable operation in typical industrial environments
🌡️ Temperature rise rating: 80°C for controlled heat performance during continuous duty
📏 Frame size: 254T for standardized mounting and easy replacement compatibility
🏭 NEMA Design B construction for general-purpose industrial motor applications
📛 NEMA Code G for controlled starting characteristics and operational reliability

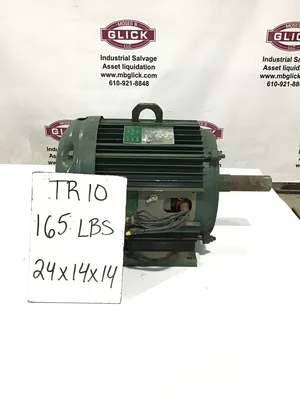

Weight: 165 lbs
Dimensions: 24 × 14 × 14 in
