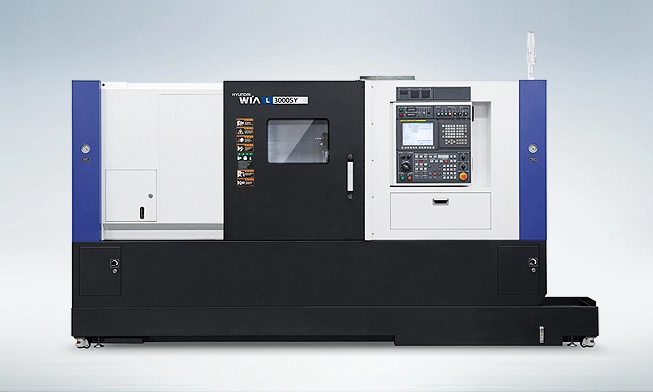

NEW HYUNDAI WIA L3000SY

OverviewThe L3000SY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.

Hyundai Wia Fanuc i series controller
3,000 rpm built in spindle
50HP (37kW) / 930.8 lbf. ft torque
12" chuck
Ø4.0" (Ø102mm) bar capacity
Ø16.5" (Ø 420mm) Max. turning diameter
29.9" (760mm) turning length
6,000 rpm built in spindle
20 HP (15kW) / 99.6 lbf. ft torque
6" chuck
Ø2.0" (Ø51mm) bar capacity

Max Turn Dia: 16.5 in.
Max Turn Len: 29.9 in.
Chuck Size: 12 in.
Spindle RPM: 3,000
Spindle HP: 50
Spindle Torque: 930.8
Rapids(X): 1181
Rapids(Y): 394
Rapids(Z/B): 1181
Rapids(Z): 1181
Travel(X): 10.4
Travel(Y): 4.7
Travel(Z): 32.7
Travel(Z/B): 32.7
No of Tools: 12
